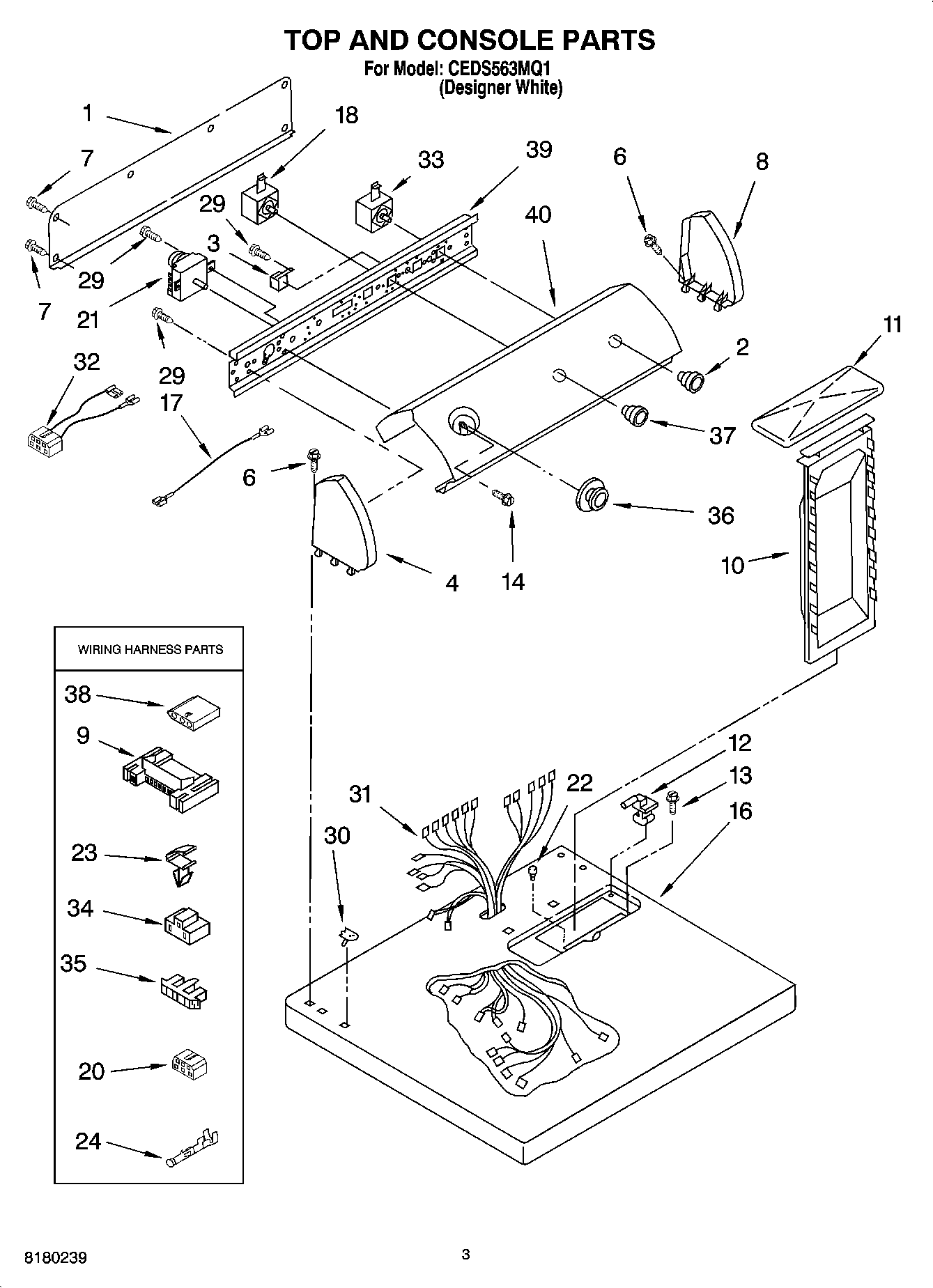

CEDS563MQ1 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1	W10103406 Whirlpool Rear Panel
2	WP3957800 Whirlpool Knob
3	WP694419 Whirlpool Buzzer Adjuster
6	WP388326 Whirlpool Screw
7	WP693995 Whirlpool Screw
8	279960 Whirlpool Endcap Assembly
9	3395683 Whirlpool Connector
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	3400859 Whirlpool Screw
16	Top
17	Wire, Jumper (Tan)
17	Wire, Jumper (White)
18	3399638 Whirlpool Switch
20	Block, Disconnect
21	WP3979618 Whirlpool Timer
22	Bumper, Lint Lid
23	WP3394427 Whirlpool Clip
24	WP94614 Whirlpool Terminal
29	WPW10139210 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
32	8283286 Whirlpool Wire Harness
33	WP3398094 Whirlpool Push To Start Switch
34	3401144 Whirlpool Connector
35	Connector, Timer
36	WP3957746 Whirlpool Knob Assembly
37	WP3957796 Whirlpool Knob
38	3936144 Whirlpool Connector
39	Bracket, Control
40	350938 Whirlpool Spray Gun
40	Panel, Control
40	72017 Whirlpool Appliance Touch-Up Paint White
40	3404351 Whirlpool Dryer Rack
40	799344 Whirlpool Refrigerator Paint
40	350930 Whirlpool White Spray Paint
40	4392065 Whirlpool Dryer Maintenance Kit
40	W11224254 Whirlpool Test Kit
40	ACCESSORY PARTS
