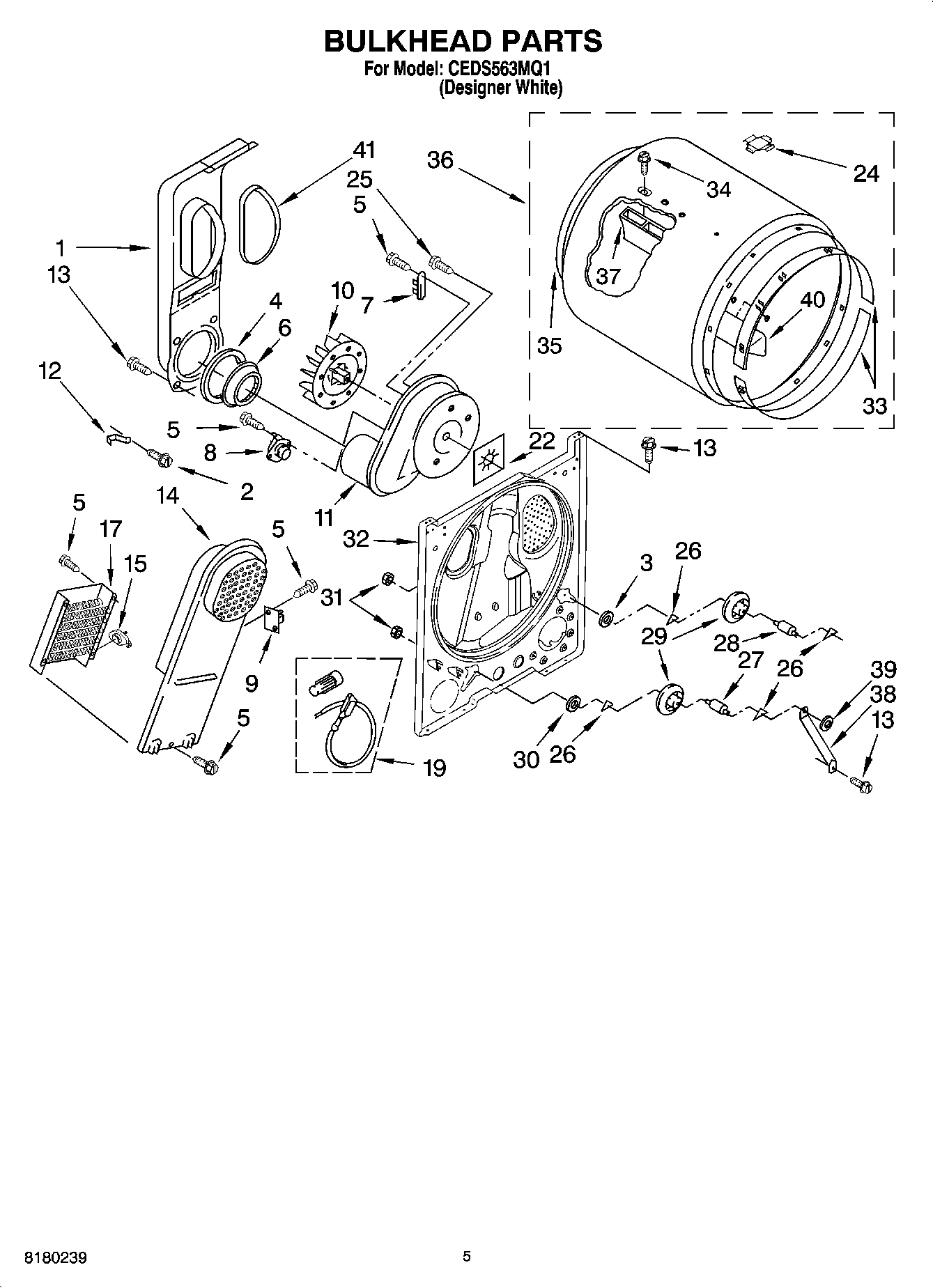

CEDS563MQ1 03 – BULKHEAD PARTS

Products

Position	Product
1	W11117429 Whirlpool Chute Assembly
2	WP489463 Whirlpool Refrigerator Screw
3	WP3388703 Whirlpool Washer
4	W11415783 Whirlpool Seal
5	WP90767 Whirlpool Screw
6	W11233063 Whirlpool Shield Assembly
7	WP3392519 Whirlpool Dryer Thermal Fuse
8	WP3387134 Whirlpool Dryer Cycling Thermostat
9	279816 Whirlpool Dryer Thermal Cut-Off Fuse Kit
10	WP694089 Whirlpool Dryer Blower Wheel
11	WP8577230 Whirlpool Housing
12	CLIP, HEATER BOX
13	SCREW
14	WP8541818 Whirlpool Box
15	WP3977767 Whirlpoo Dryer High Limit Thermostat
17	279838 Whirlpool Dryer Heating Element 5400W
19	279457 Whirlpool Dryer Heating Element Wide Spade Connection
22	Seal, Blower
24	8066086 Whirlpool Plug
25	WP488729 Whirlpool Refrigerator Door Screw
26	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
27	SHAFT SUPPORT ROLLER DRYER
28	SHAFT SUPPORT ROLLER DRYER
29	349241T Whirlpool Dryer Drum Support Roller Kit
30	WP348197 Whirlpool Washer Assembly
31	WP3359452 Whirlpool Nut
32	W11178667 Whirlpool Bulkhead Assembly
33	279441 Whirlpool Front Bearing Ring
34	WPW10109200 Whirlpool Screw
35	W10612022 Whirlpool Felt Seal
36	W10899578 Whirlpool Dryer Drum Assembly
37	BAFFLE-DRM
38	W11684613 Whirlpool Bracket
39	WP90296 Whirlpool Clip
40	WP3403636 Whirlpool Drum Baffle
41	SEAL
