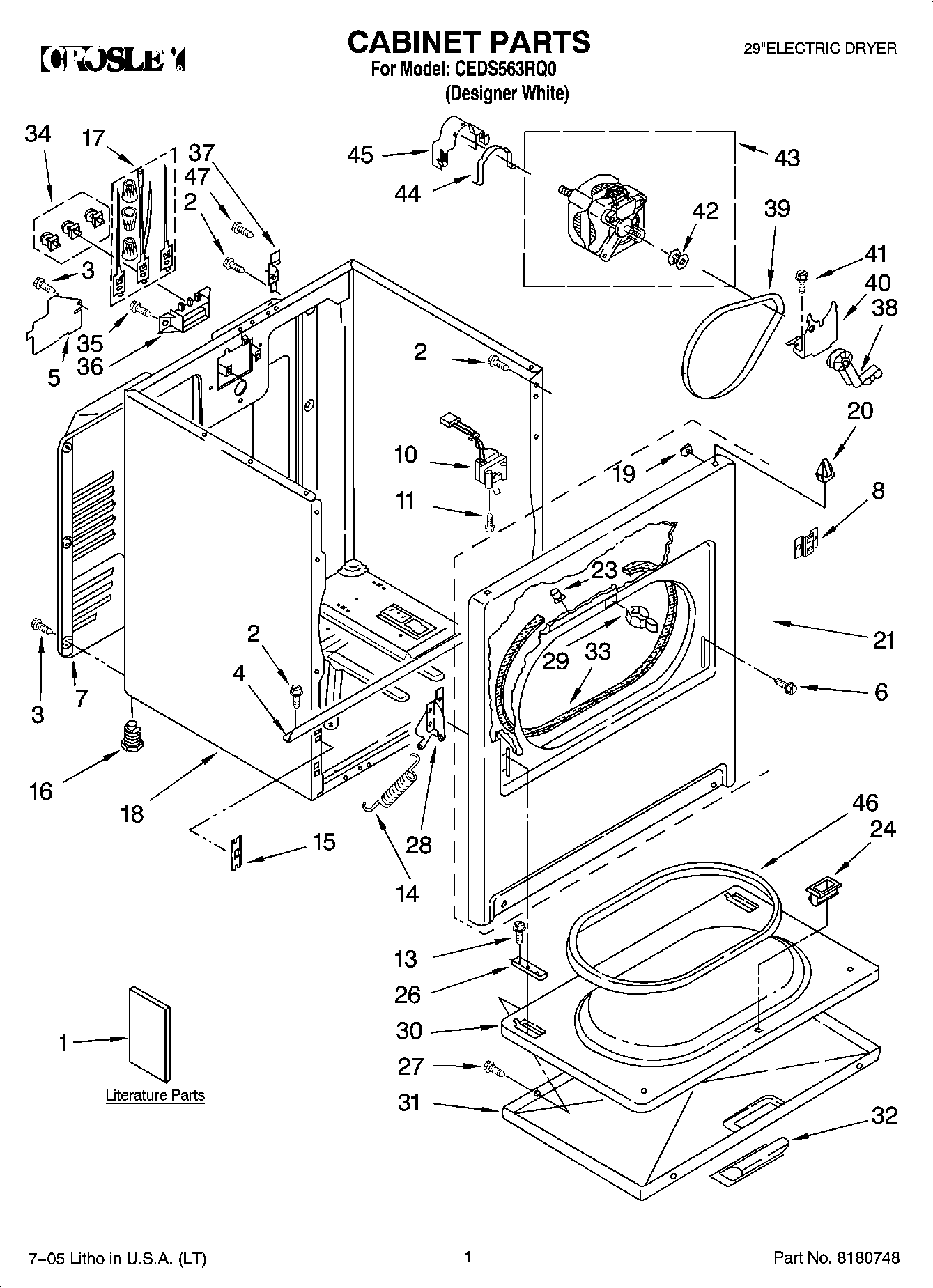

CEDS563RQ0 01 – CABINET PARTS

Products

Position	Product
1	WPL 677818
1	DO-IT-YOURSELF REPAIR MANUALS
1	Instructions, Installation
1	Wiring Diagram
1	Sheet, Cycle Feature
1	Use & Care Guide
1	Following May Be Purchased
2	SCREW
3	WP693995 Whirlpool Screw
4	Bracket, Cabinet
5	W11539855 Whirlpool Refrigerator Pump
6	Screw, 10-32 x 1/2
7	280043 Whirlpool Rear Panel
8	8546676 Whirlpool Clip
10	WP3406107 Whirlpool Dryer Door Switch
11	WP3395530 Whirlpool Screw
13	WP308685 Whirlpool Microwave Screw
14	8541401 Whirlpool Door Spring
15	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
16	49621 Whirlpool Leveling Feet
17	279318 Whirlpool Terminal
18	8533643 Whirlpool Dryer White Cabinet
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	279443 Whirlpool Primary Panel
23	279220 Whirlpool Clip
24	WP3389441 Whirlpool Door Catch
26	W11252547 Whirlpool Clip Assembly
27	WP694091 Whirlpool Screw
28	WP8066056 Whirlpool Door Hinge
28	WP8066057 Whirlpool Door Hinge
29	279570 Whirlpool Dryer Door Latch Kit
30	WP695737 Whirlpool Door
31	WP3393549 Whirlpool Door Assembly
32	WP348721 Whirlpool Handle
33	W11035878 Whirlpool Bearing and Seal
34	279393 Whirlpool Terminal Block Screw and Nut Kit
36	WP3397659 Whirlpool Terminal Block
37	WP8066217 Whirlpool Hinge
38	WP691366 Whirlpool Dryer Idler Pulley Assembly
39	341241 Whirlpool Dryer Drum Belt
40	WP348780 Whirlpool Base
41	3400500 Whirlpool Screw
42	WP8066184 Whirlpool Dryer Motor Pulley
43	279827 Whirlpool Dryer Drive Motor
44	WP660658 Whirlpool Clamp
45	WP3404162 Whirlpool Clamp
46	W10906683 Whirlpool Door Seal
47	W10850756 Whirlpool Screw
