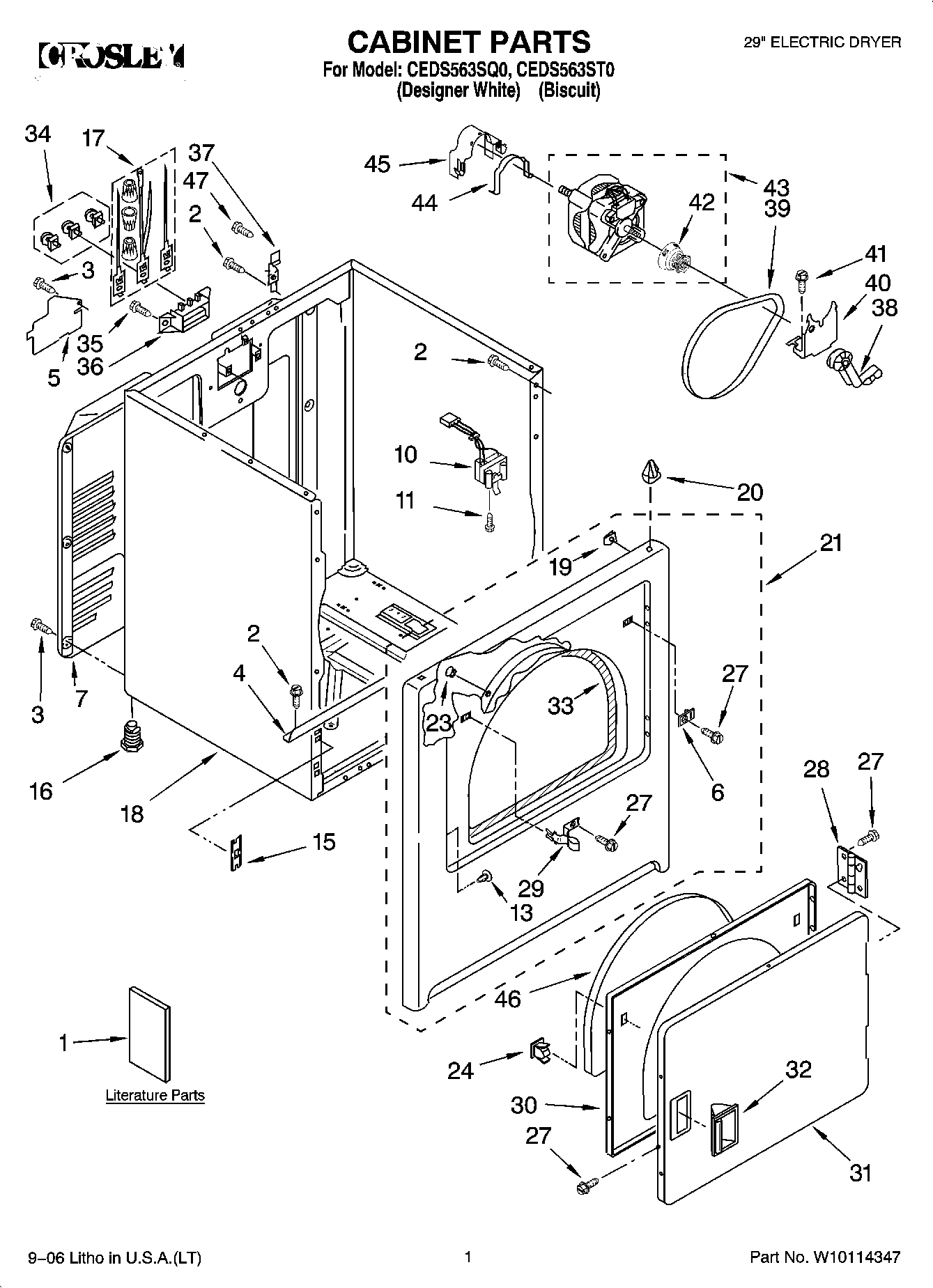

CEDS563ST0 01 – CABINET PARTS

CEDS563ST0 01 – CABINET PARTS

Products

PositionProduct
1Wiring Diagram
1Use & Care Guide
1Sheet, Cycle Feature
1Following May Be Purchased
1Instructions, Installation
1WPL 677818
1DO-IT-YOURSELF REPAIR MANUALS
2SCREW
3WP693995 Whirlpool Screw
4Bracket, Cabinet
5W11539855 Whirlpool Refrigerator Pump
6WP3403630 Whirlpool Plug
6Plug, Strike Hole (Biscuit)
7280043 Whirlpool Rear Panel
10WP3406107 Whirlpool Dryer Door Switch
11WP3395530 Whirlpool Screw
13WP3404413 Whirlpool Plug
13Plug, Hinge Hole (4) (Biscuit)
15W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
1649621 Whirlpool Leveling Feet
17279318 Whirlpool Terminal
18Cabinet (Biscuit)
188533643 Whirlpool Dryer White Cabinet
19WP98234 Whirlpool Nut
20WP18776 Whirlpool Lock
21Panel, Front (Biscuit)
21Panel, Front
23279220 Whirlpool Clip
24WP3389441 Whirlpool Door Catch
27WP488627 Whirlpool Refrigerator Screw
28WPW10362431 Whirlpool Hinge Assembly
29W11429589 Whirlpool Strike
30WP3402341 Whirlpool Door
31W10861227 Whirlpool Door Assembly
31Door, Front (Biscuit)
32WP3405184 Whirlpool White Door Handle
32WP3405189 Whirlpool Handle
33W11035878 Whirlpool Bearing and Seal
34279393 Whirlpool Terminal Block Screw and Nut Kit
35WP308685 Whirlpool Microwave Screw
36WP3397659 Whirlpool Terminal Block
37WP8066217 Whirlpool Hinge
38WP691366 Whirlpool Dryer Idler Pulley Assembly
39341241 Whirlpool Dryer Drum Belt
40WP348780 Whirlpool Base
413400500 Whirlpool Screw
42WP8066184 Whirlpool Dryer Motor Pulley
43279827 Whirlpool Dryer Drive Motor
44WP660658 Whirlpool Clamp
45WP3404162 Whirlpool Clamp
46SEAL-DOOR DRYER
47W10850756 Whirlpool Screw
