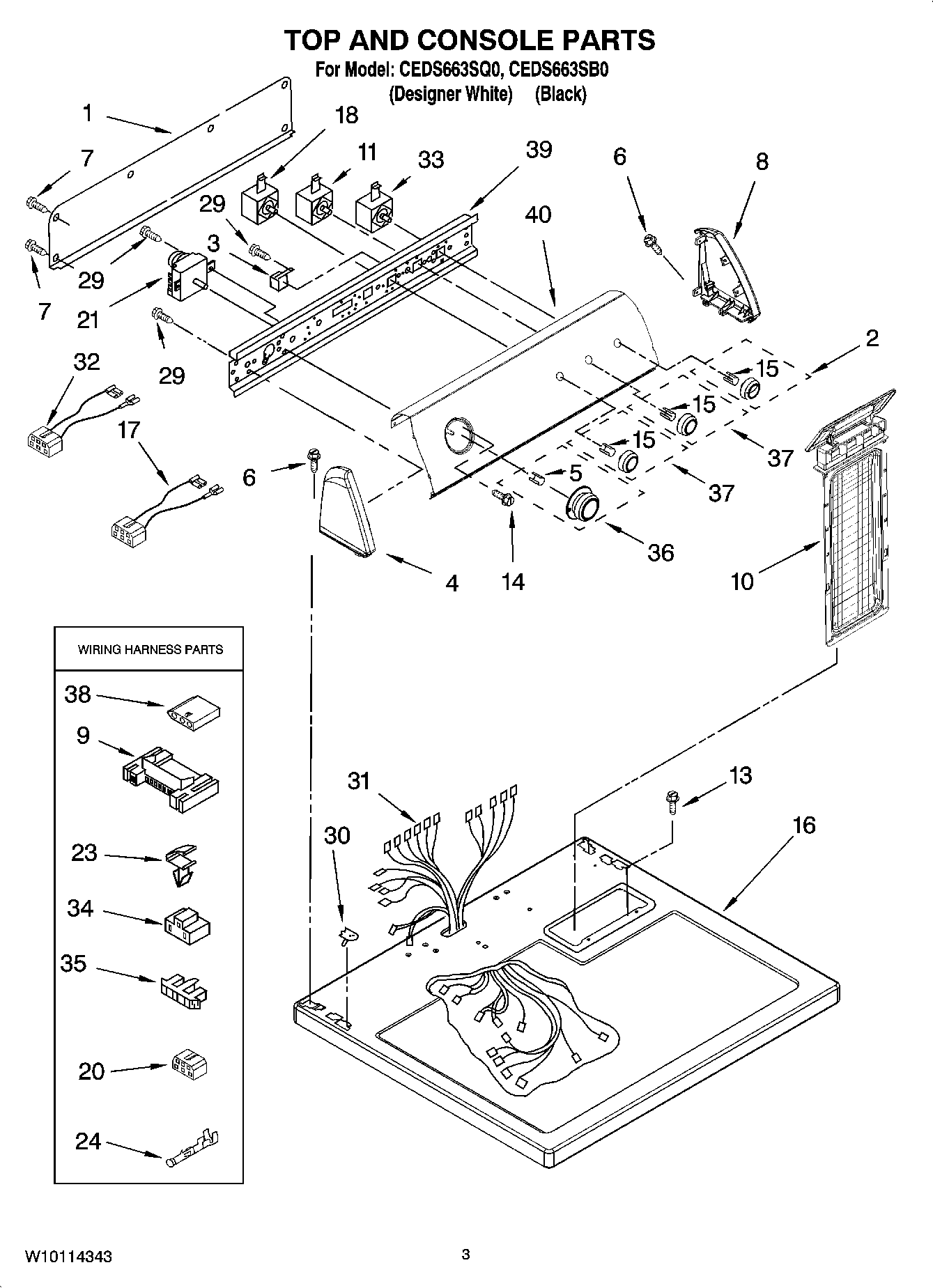

CEDS663SB0 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1	W10103406 Whirlpool Rear Panel
2	Knob, Push-To-Start
3	WP694419 Whirlpool Buzzer Adjuster
4	Cap, End (L.H.)
5	WP688805 Whirlpool Spring Clip
6	WP388326 Whirlpool Screw
7	WP693995 Whirlpool Screw
8	W10820038 Whirlpool Endcap
8	Cap, End (R.H.)
9	3395683 Whirlpool Connector
10	Screen, Lint (Black)
10	WPW10717210 Whirlpool Dryer Lint Screen Filter
11	3405152 Whirlpool Switch Assembly
13	W11693756 Whirlpool Screw Assembly
14	3400859 Whirlpool Screw
15	WP8536939 Whirlpool Spring Clip
16	Top
16	TOP (BLACK)
17	Wire, Jumper (White)
17	3401695 Whirlpool Wire Harness
18	WP3399639 Whirlpool Switch
20	Block, Disconnect
21	WP3979618 Whirlpool Timer
23	WP3394427 Whirlpool Clip
24	WP94614 Whirlpool Terminal
29	WP90767 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
32	8539893 Whirlpool Wire Harness
33	WP3398094 Whirlpool Push To Start Switch
34	3401144 Whirlpool Connector
35	Connector, Timer
36	WP8557455 Whirlpool Knob Timer
37	KNOB
38	3936144 Whirlpool Connector
39	Bracket, Control
40	Panel, Control (White)
40	Panel, Control (Black)
