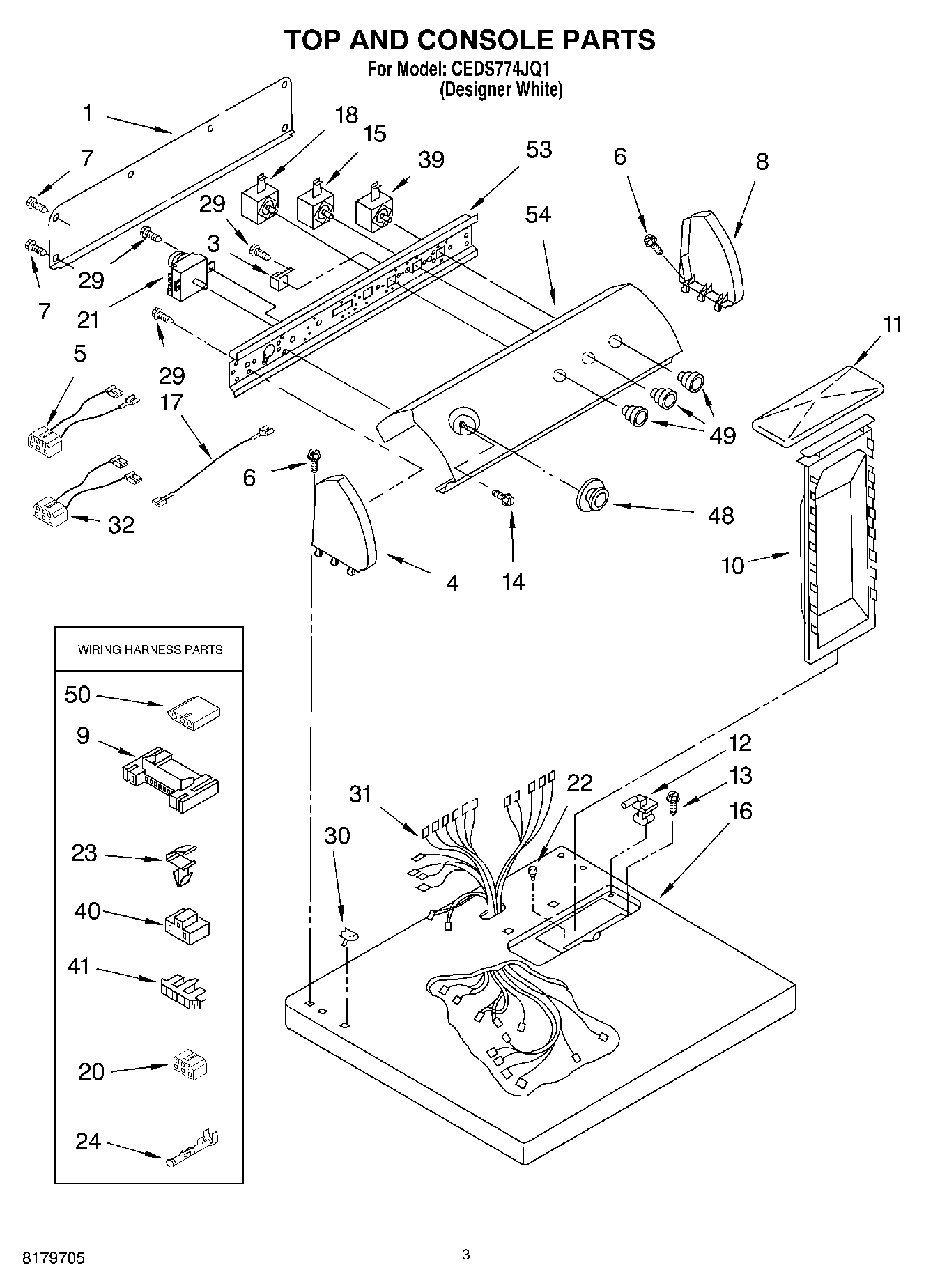

CEDS774JQ1 02 – SECTION
Written by
in
CEDS774JQ1 02 – SECTION
Products
Position
Product
1
W10103406 Whirlpool Rear Panel
3
WP694419 Whirlpool Buzzer Adjuster
5
3397695 Whirlpool Wire Harness
6
WP388326 Whirlpool Screw
7
WP693995 Whirlpool Screw
8
279960 Whirlpool Endcap Assembly
9
3395683 Whirlpool Connector
10
WP349639 Whirlpool Lint Filter
11
Cover, Lint Screen
12
WPW10044470 Whirlpool Hinge Assembly
12
WPW10044480 Whirlpool Hinge Assembly
13
W11693756 Whirlpool Screw Assembly
14
3400859 Whirlpool Screw
15
WP3405156 Whirlpool Switch
16
Top
17
Wire, Jumper (Black)
18
WP3399639 Whirlpool Switch
20
Block, Disconnect
21
WP3979618 Whirlpool Timer
22
Bumper, Lint Lid
23
WP3394427 Whirlpool Clip
24
WP94614 Whirlpool Terminal
29
WPW10139210 Whirlpool Screw
30
WP357213 Whirlpool Hinge Stopper
31
Harness, Wiring
32
8539893 Whirlpool Wire Harness
39
WP3398095 Whirlpool Dryer Start Relay
40
3401144 Whirlpool Connector
41
Connector, Timer
48
WP3957746 Whirlpool Knob Assembly
49
WP3957796 Whirlpool Knob
50
3936144 Whirlpool Connector
53
Bracket, Control
54
Panel, Control
54
3404351 Whirlpool Dryer Rack
54
4392065 Whirlpool Dryer Maintenance Kit
54
799344 Whirlpool Refrigerator Paint
54
72017 Whirlpool Appliance Touch-Up Paint White
54
350938 Whirlpool Spray Gun
54
350930 Whirlpool White Spray Paint
←
