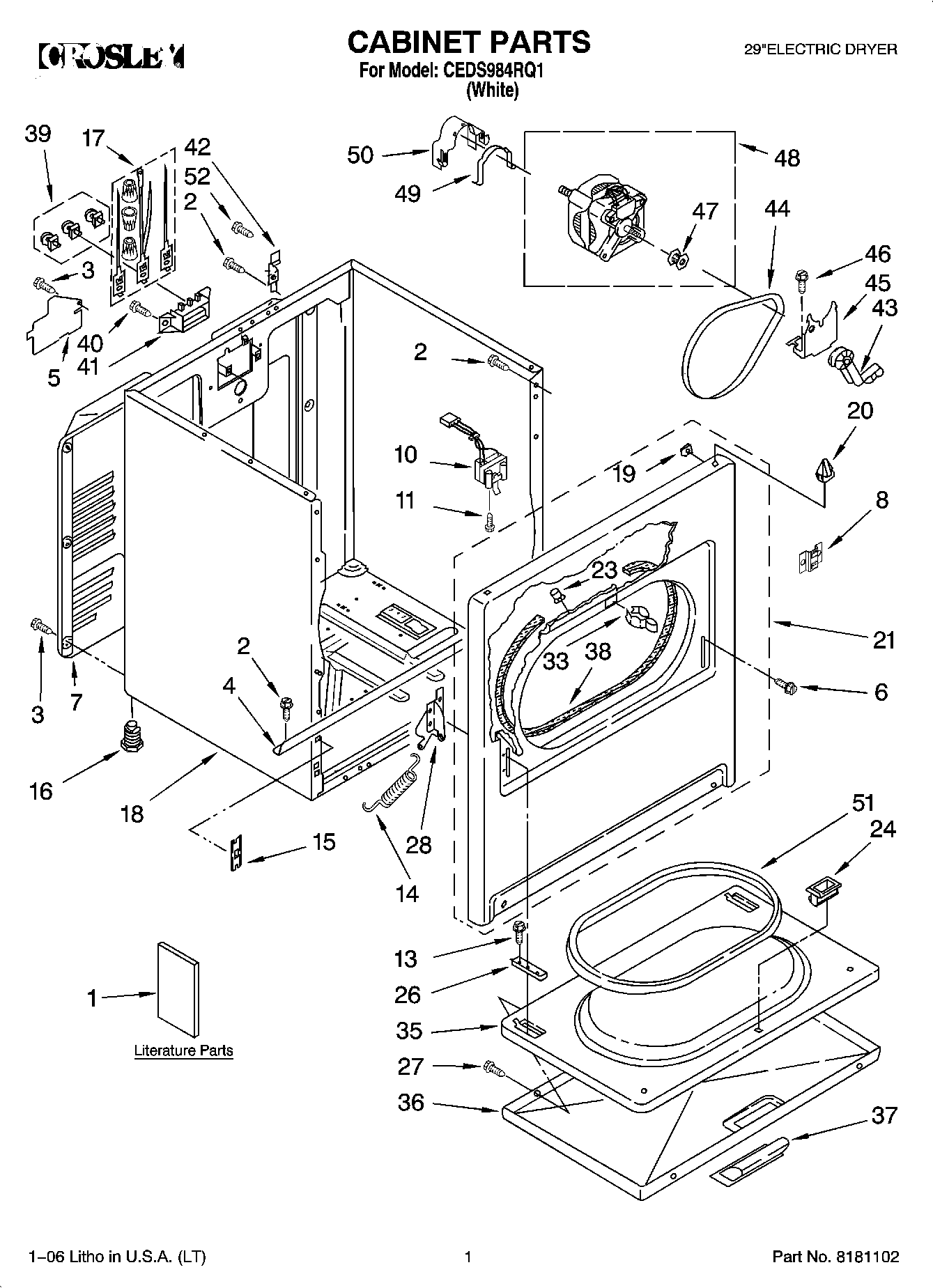

CEDS984RQ1 01 – CABINET PARTS

Products

Position	Product
1	WPL 677818
1	DO-IT-YOURSELF REPAIR MANUALS
1	Instructions, Installation
1	Wiring Diagram
1	Use & Care Guide
1	Sheet, Cycle Feature
1	Following May Be Purchased
2	SCREW
3	WP693995 Whirlpool Screw
4	Bracket, Cabinet
5	W11539855 Whirlpool Refrigerator Pump
6	Screw, 10-32 x 1/2
7	280043 Whirlpool Rear Panel
8	8546676 Whirlpool Clip
10	WP3406107 Whirlpool Dryer Door Switch
11	WP3395530 Whirlpool Screw
13	WP308685 Whirlpool Microwave Screw
14	8541401 Whirlpool Door Spring
15	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
16	49621 Whirlpool Leveling Feet
17	279318 Whirlpool Terminal
18	8533643 Whirlpool Dryer White Cabinet
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	279443 Whirlpool Primary Panel
23	279220 Whirlpool Clip
24	WP3389441 Whirlpool Door Catch
26	W11252547 Whirlpool Clip Assembly
27	WP694091 Whirlpool Screw
28	WP8066056 Whirlpool Door Hinge
28	WP8066057 Whirlpool Door Hinge
33	279570 Whirlpool Dryer Door Latch Kit
35	WP695737 Whirlpool Door
36	WP3393549 Whirlpool Door Assembly
37	WP348721 Whirlpool Handle
38	W11035878 Whirlpool Bearing and Seal
39	279393 Whirlpool Terminal Block Screw and Nut Kit
41	WP3397659 Whirlpool Terminal Block
42	WP8066217 Whirlpool Hinge
43	WP691366 Whirlpool Dryer Idler Pulley Assembly
44	341241 Whirlpool Dryer Drum Belt
45	WP348780 Whirlpool Base
46	3400500 Whirlpool Screw
47	WP8066184 Whirlpool Dryer Motor Pulley
48	279827 Whirlpool Dryer Drive Motor
49	WP660658 Whirlpool Clamp
50	WP3404162 Whirlpool Clamp
51	W10906683 Whirlpool Door Seal
52	W10850756 Whirlpool Screw
