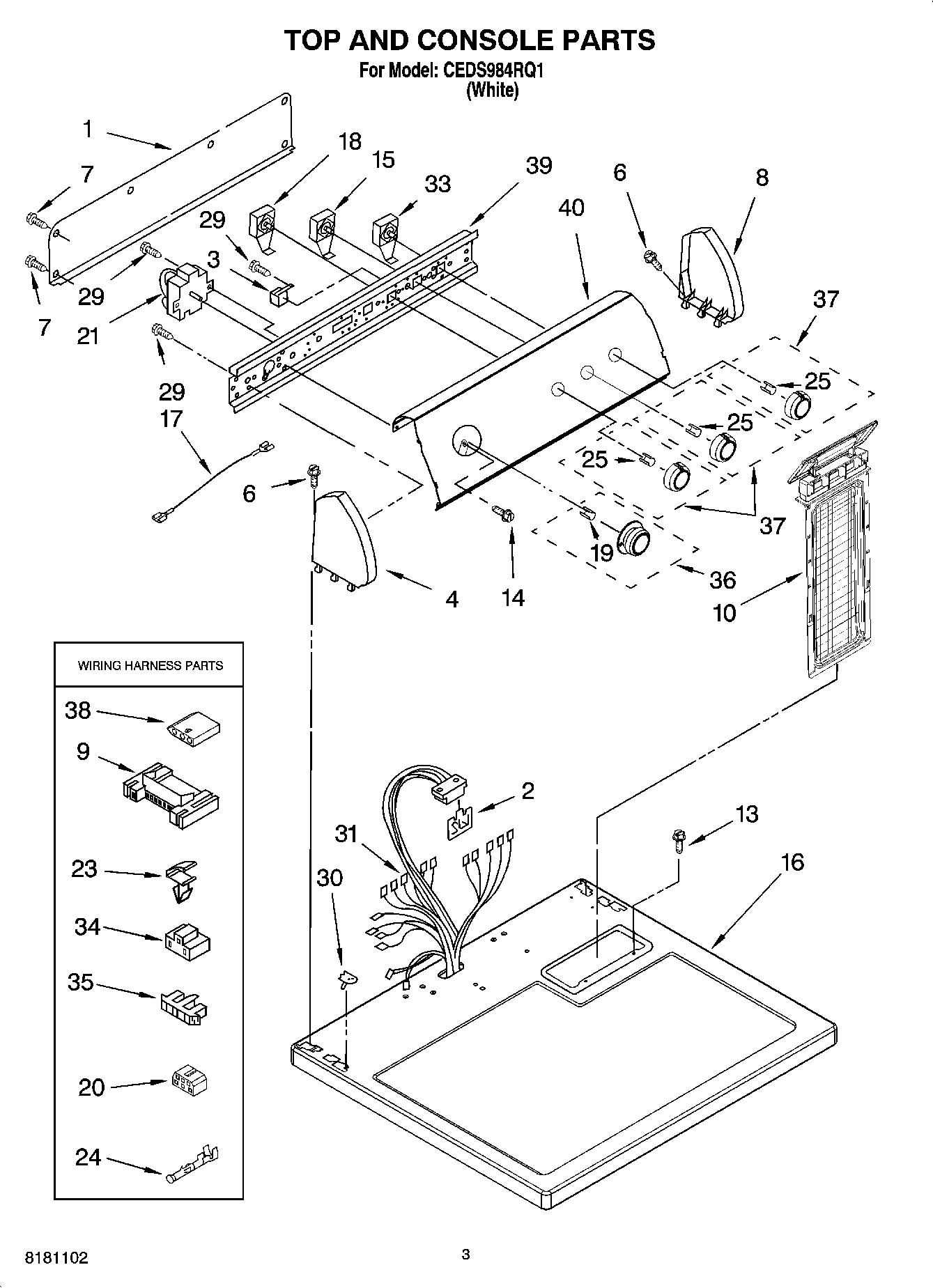

CEDS984RQ1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1W10103406 Whirlpool Rear Panel
2WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
3WP694419 Whirlpool Buzzer Adjuster
6WP388326 Whirlpool Screw
7WP693995 Whirlpool Screw
8W10820038 Whirlpool Endcap
93395683 Whirlpool Connector
10WPW10717210 Whirlpool Dryer Lint Screen Filter
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153405154 Whirlpool Primary Switch
16Top
17Wire, Jumper (Black)
18Switch, Temperature
19WP688805 Whirlpool Spring Clip
20Block, Disconnect
21WP3406725 Whirlpool Timer
23WP3394427 Whirlpool Clip
24WP94614 Whirlpool Terminal
25WP8536939 Whirlpool Spring Clip
29WP90767 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
318576506 Whirlpool Wire Harness
33WP3398095 Whirlpool Dryer Start Relay
343401144 Whirlpool Connector
35Connector, Timer
36WP8557455 Whirlpool Knob Timer
37KNOB
383936144 Whirlpool Connector
39Bracket, Control
40Panel, Control
