CEDX463JQ0 01 – SECTION

CEDX463JQ0 01 – SECTION

Written by

in

CEDX463JQ0 01 – SECTION

Products

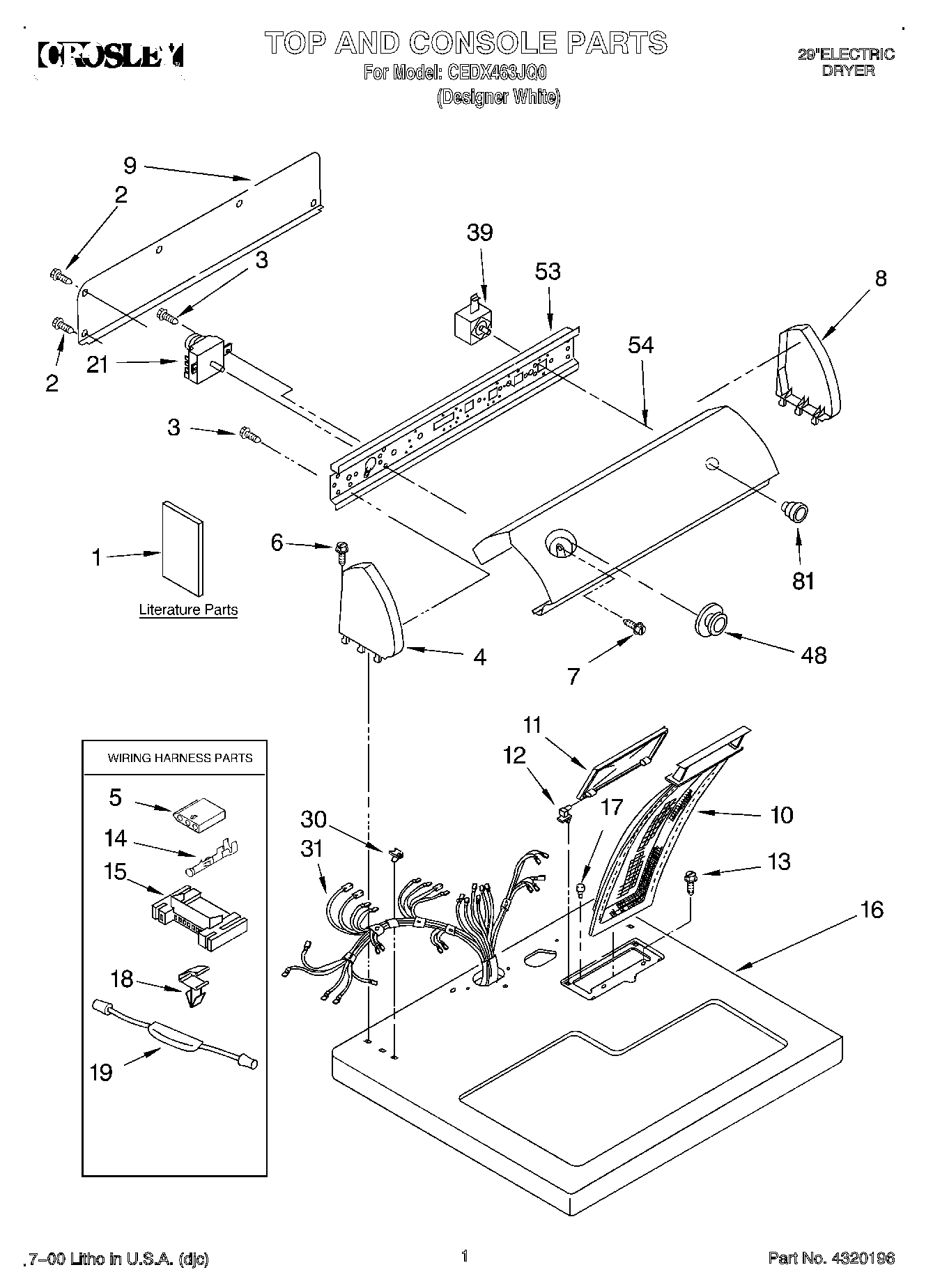

PositionProduct
1WPL LIT3397618
1Literature Parts (Guide, Use & Care)
1Label, Wiring Diagram
2WP693995 Whirlpool Screw
3WPW10139210 Whirlpool Screw
53936144 Whirlpool Connector
6WP388326 Whirlpool Screw
73400859 Whirlpool Screw
8279960 Whirlpool Endcap Assembly
9W10103406 Whirlpool Rear Panel
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP94614 Whirlpool Terminal
153395683 Whirlpool Connector
16Top
17Bumper, Lint Lid
18WP3394427 Whirlpool Clip
19279872 Whirlpool Resistor
21WP8299764 Whirlpool Timer
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
39WP3395382 Whirlpool Push To Start Switch
48WP3957746 Whirlpool Knob Assembly
53Bracket, Control
54Panel, Control
81WP3957800 Whirlpool Knob
81799344 Whirlpool Refrigerator Paint
8172017 Whirlpool Appliance Touch-Up Paint White
81350938 Whirlpool Spray Gun
81350930 Whirlpool White Spray Paint
