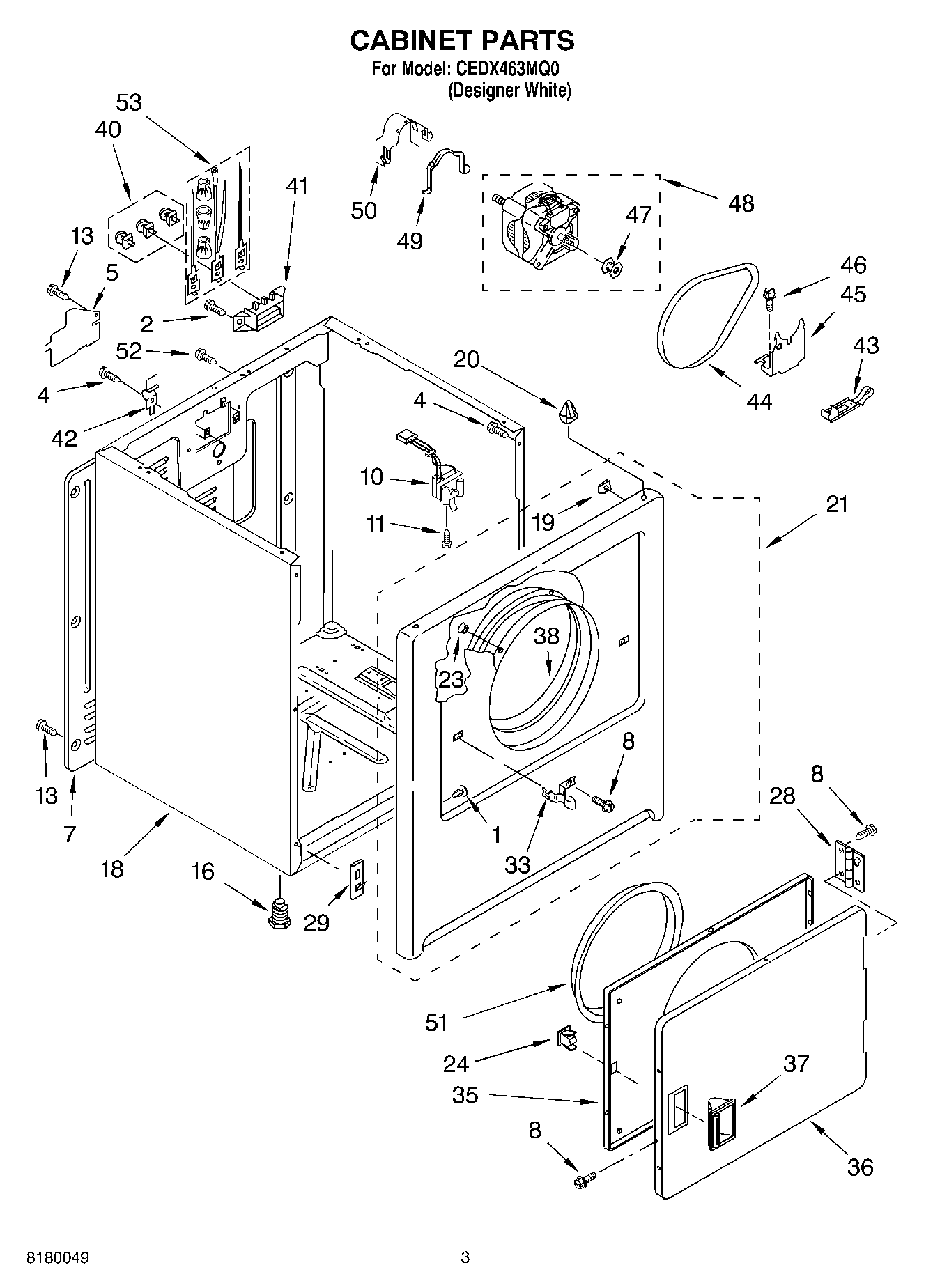

CEDX463MQ0 02 – CABINET PARTS

Products

Position	Product
1	WP3404413 Whirlpool Plug
2	WP308685 Whirlpool Microwave Screw
4	SCREW
5	W11539855 Whirlpool Refrigerator Pump
7	280040 Whirlpool Rear Panel
8	WP488627 Whirlpool Refrigerator Screw
10	WP3406105 Whirlpool Door Switch
11	WP3395530 Whirlpool Screw
13	WP693995 Whirlpool Screw
16	49621 Whirlpool Leveling Feet
18	8533643 Whirlpool Dryer White Cabinet
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	Panel Front Assembly
23	279220 Whirlpool Clip
24	279570 Whirlpool Dryer Door Latch Kit
28	WPW10362431 Whirlpool Hinge Assembly
29	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
35	Door, Rear
36	WP3403361 Whirlpool Door
37	WP3405184 Whirlpool White Door Handle
38	279264 Whirlpool Bearing and Seal Kit
40	279393 Whirlpool Terminal Block Screw and Nut Kit
41	WP3397659 Whirlpool Terminal Block
42	WP8066217 Whirlpool Hinge
43	WP691366 Whirlpool Dryer Idler Pulley Assembly
44	341241 Whirlpool Dryer Drum Belt
45	WP348780 Whirlpool Base
46	3400500 Whirlpool Screw
47	WP8066184 Whirlpool Dryer Motor Pulley
48	279827 Whirlpool Dryer Drive Motor
49	WP660658 Whirlpool Clamp
50	WP3404162 Whirlpool Clamp
51	SEAL-DOOR DRYER
52	W10850756 Whirlpool Screw
53	279318 Whirlpool Terminal
