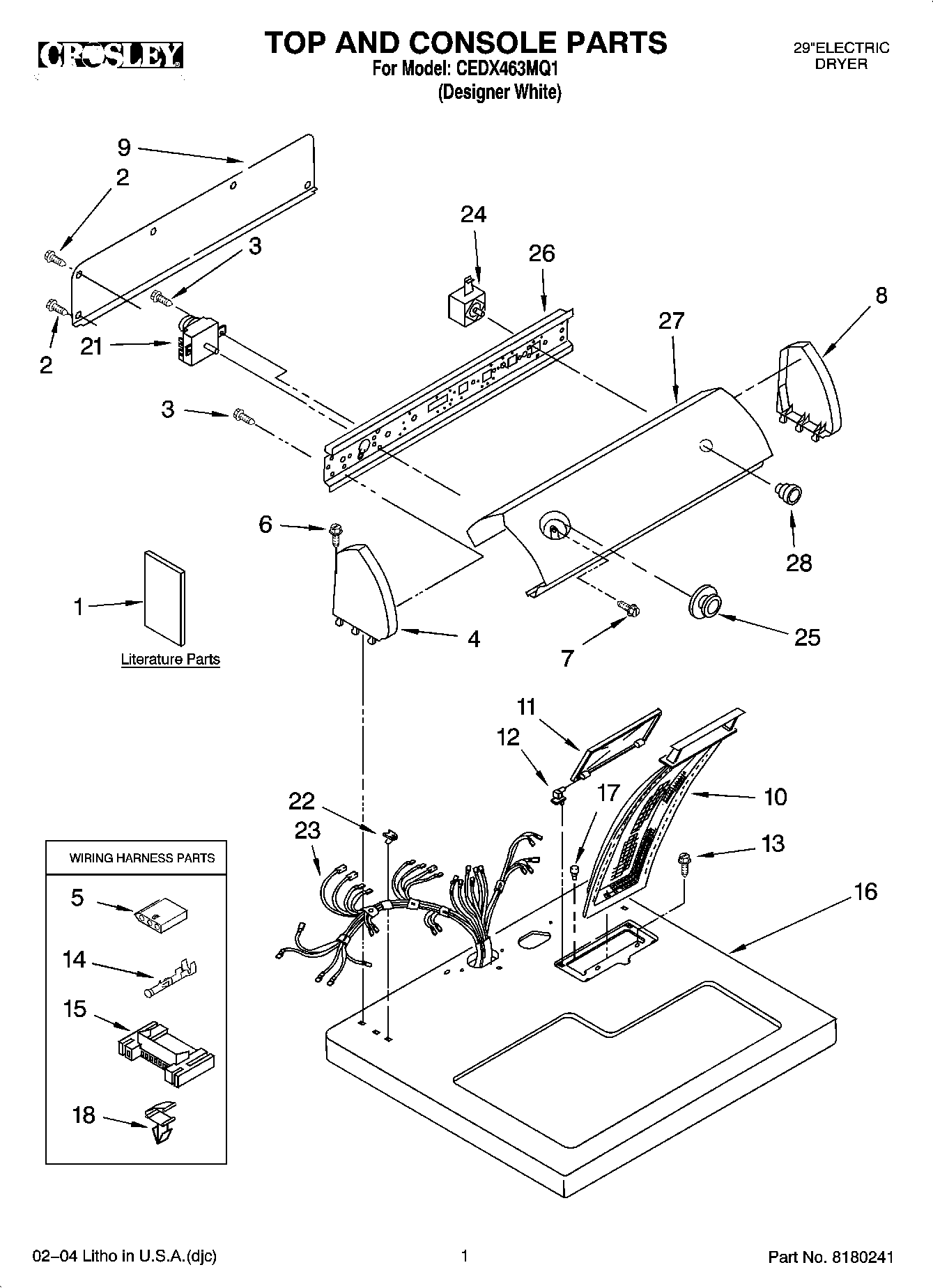

CEDX463MQ1 01 – TOP AND CONSOLE PARTS

CEDX463MQ1 01 – TOP AND CONSOLE PARTS

Written by

in

CEDX463MQ1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Literature Parts (Use & Care Guide)
1Dryer
1Literature Parts (Sheet, Cycle Feature)
1Literature Parts (Label, Wiring Diagram)
1Literature Parts (Instructions, Installation)
2WP693995 Whirlpool Screw
3WPW10139210 Whirlpool Screw
53936144 Whirlpool Connector
6WP388326 Whirlpool Screw
73400859 Whirlpool Screw
8279960 Whirlpool Endcap Assembly
9W10103406 Whirlpool Rear Panel
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP94614 Whirlpool Terminal
153395683 Whirlpool Connector
16Top
17Bumper, Lint Lid
18WP3394427 Whirlpool Clip
21WP8299781 Whirlpool Timer
22WP357213 Whirlpool Hinge Stopper
23WPW10450292 Whirlpool Wire Harness
24WP3977456 Whirlpool Start Switch
25WP3957746 Whirlpool Knob Assembly
26Bracket, Control
27Panel, Control
28WP3957800 Whirlpool Knob
