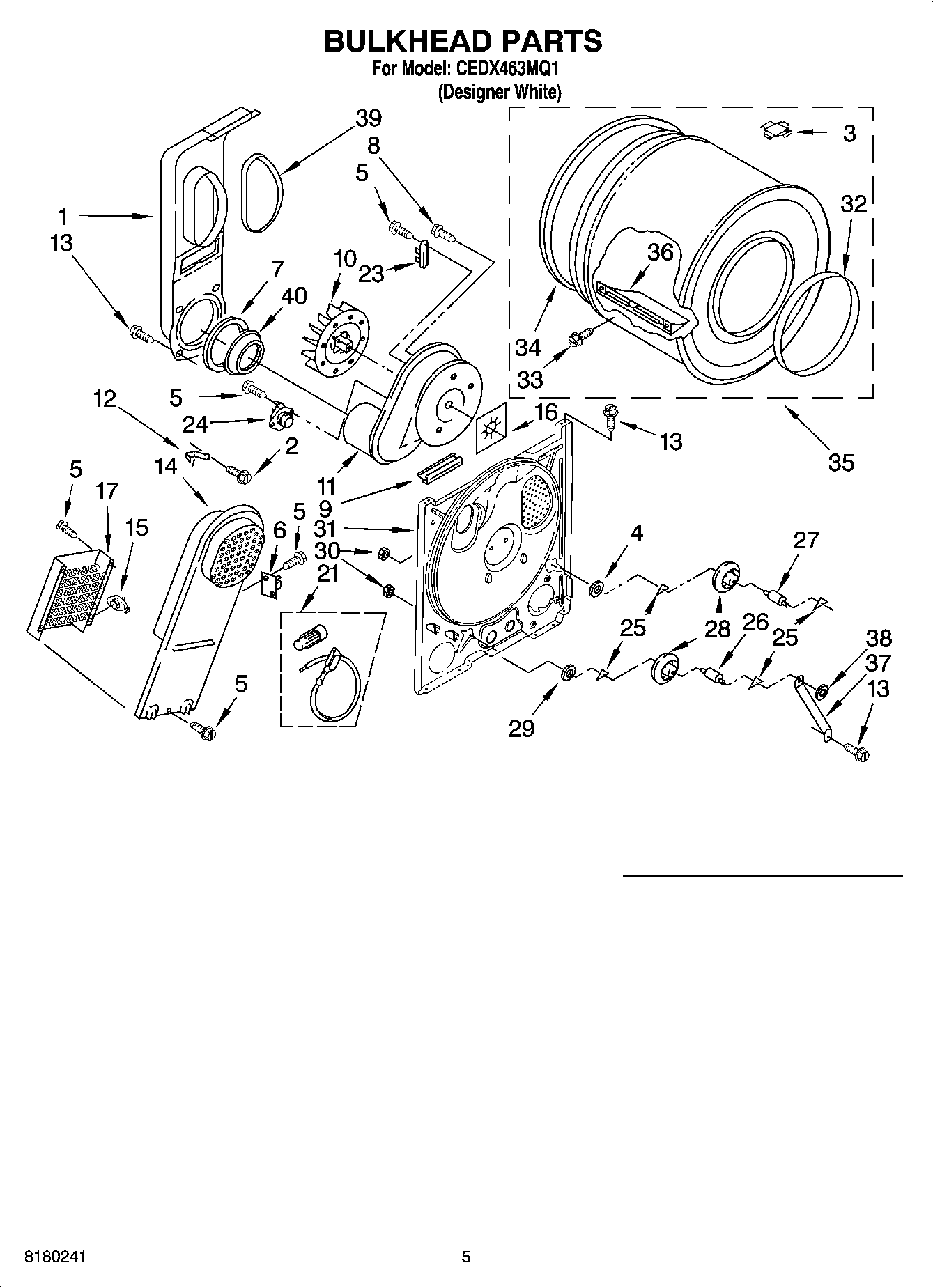

CEDX463MQ1 03 – OPTIONAL PARTS (NOT INCLUDED) BULKHEAD PARTS

Products

Position	Product
1	279505 Whirlpool Chute
2	WP489463 Whirlpool Refrigerator Screw
3	8066086 Whirlpool Plug
4	WP3388703 Whirlpool Washer
5	WP90767 Whirlpool Screw
6	279816 Whirlpool Dryer Thermal Cut-Off Fuse Kit
7	W11415783 Whirlpool Seal
8	WP488729 Whirlpool Refrigerator Door Screw
9	686889 Whirlpool Pad
10	WP694089 Whirlpool Dryer Blower Wheel
11	WP8577230 Whirlpool Housing
12	279771 Whirlpool Clip
13	SCREW
14	WP8541818 Whirlpool Box
15	WP3977767 Whirlpoo Dryer High Limit Thermostat
16	Seal, Blower
17	279838 Whirlpool Dryer Heating Element 5400W
21	279457 Whirlpool Dryer Heating Element Wide Spade Connection
23	WP3392519 Whirlpool Dryer Thermal Fuse
24	WP3387134 Whirlpool Dryer Cycling Thermostat
25	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
26	SHAFT SUPPORT ROLLER DRYER
27	SHAFT SUPPORT ROLLER DRYER
28	349241T Whirlpool Dryer Drum Support Roller Kit
29	WP348197 Whirlpool Washer Assembly
30	WP3359452 Whirlpool Nut
31	BULKHEAD
32	WP3394509 Whirlpool Bearing Ring
33	WPW10109200 Whirlpool Screw
34	239087 Whirlpool Dryer Rear Drum Seal Green Stitches
35	697760 Whirlpool Drum Assembly Primary OS2
36	WP342847 Whirlpool Drum Baffle
37	Bracket, Support
38	WP90296 Whirlpool Clip
39	SEAL
40	W11233063 Whirlpool Shield Assembly
