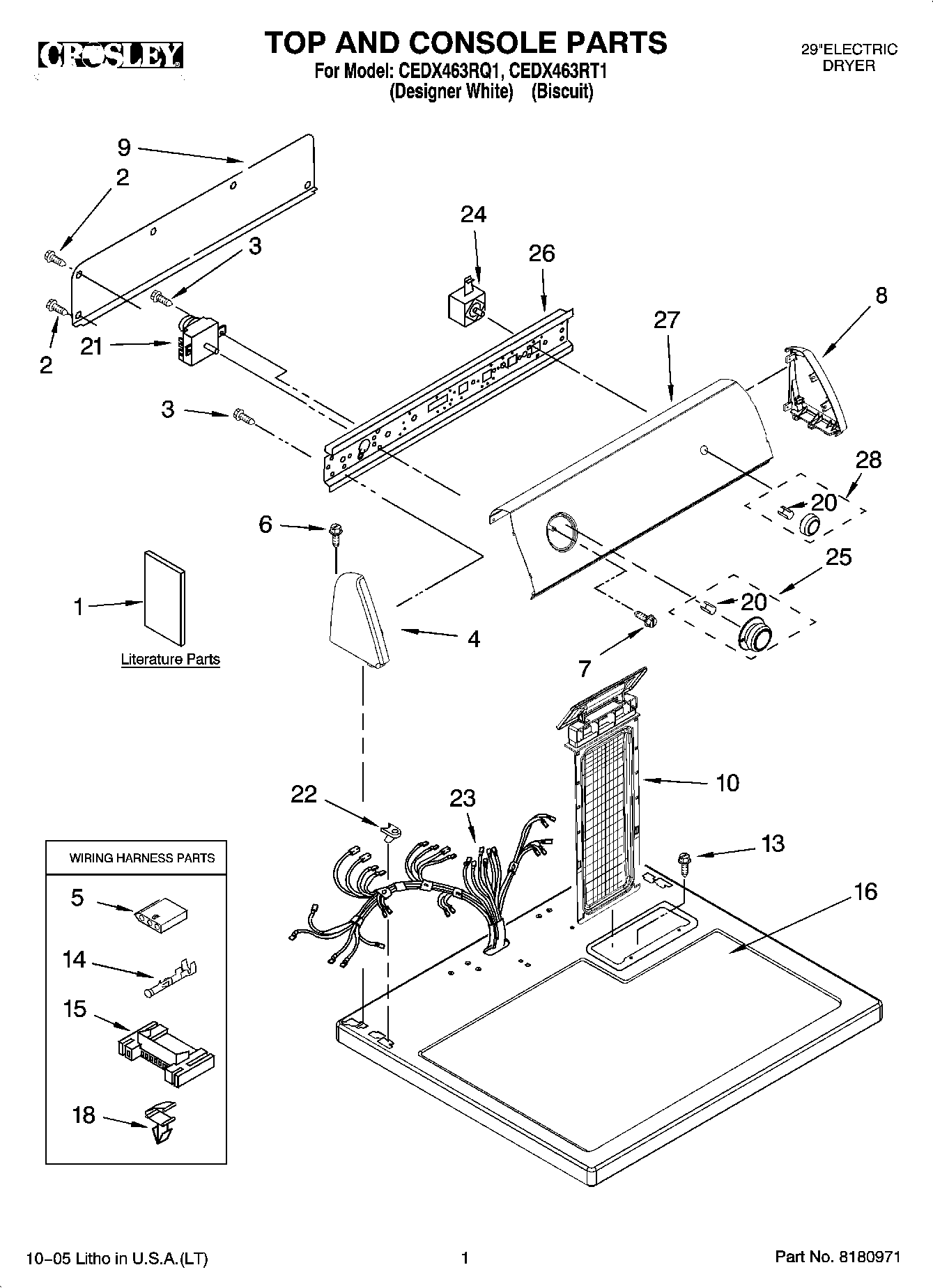

CEDX463RT1 01 – TOP AND CONSOLE PARTS

CEDX463RT1 01 – TOP AND CONSOLE PARTS

Written by

in

CEDX463RT1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Instructions, Installation
1Sheet, Cycle Feature
1Use & Care Guide
1Wiring Diagram
1WPL 677818
2WP693995 Whirlpool Screw
3WP90767 Whirlpool Screw
4Cap, End (L.H.) (BIscuit)
53936144 Whirlpool Connector
6WP388326 Whirlpool Screw
73400859 Whirlpool Screw
8W10820038 Whirlpool Endcap
8WPL 8271362
9W10103406 Whirlpool Rear Panel
10Screen, Lint (Biscuit)
10W10874409 Whirlpool Lint Screen Filter
13W11693756 Whirlpool Screw Assembly
14WP94614 Whirlpool Terminal
153395683 Whirlpool Connector
16Top
16Top
18WP3394427 Whirlpool Clip
20WP8536939 Whirlpool Spring Clip
21WP8299781 Whirlpool Timer
22WP357213 Whirlpool Hinge Stopper
23WPW10450292 Whirlpool Wire Harness
24WP3977456 Whirlpool Start Switch
25Timer Knob Assembly (Biscuit)
253957383 Whirlpool Knob
26Bracket, Control
27Panel, Control (White)
27Panel, Control (Biscuit)
28Knob, Push-To-Start (Biscuit)
288557462 Whirlpool Knob
