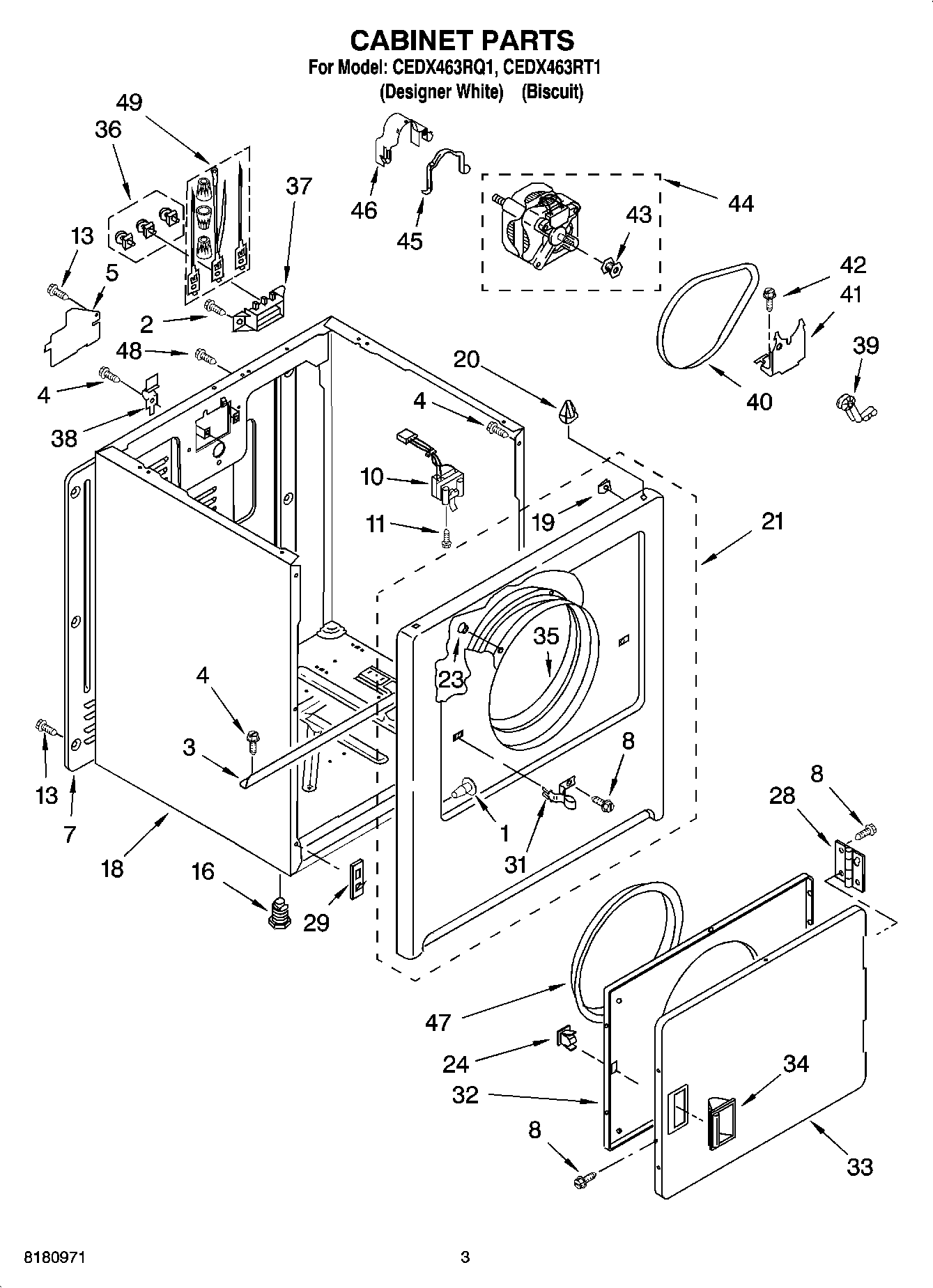

CEDX463RT1 02 – CABINET PARTS

Products

Position	Product
1	WP3404413 Whirlpool Plug
1	Plug, Hinge Hole (4) (Biscuit)
2	WP308685 Whirlpool Microwave Screw
3	Bracket, Cabinet
4	SCREW
5	W11539855 Whirlpool Refrigerator Pump
7	280040 Whirlpool Rear Panel
8	WP488627 Whirlpool Refrigerator Screw
10	WP3406105 Whirlpool Door Switch
11	WP3395530 Whirlpool Screw
13	WP693995 Whirlpool Screw
16	49621 Whirlpool Leveling Feet
18	8533643 Whirlpool Dryer White Cabinet
18	Cabinet (Biscuit)
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	Panel Front Assembly
21	Front Panel Assembly (Biscuit)
23	279220 Whirlpool Clip
24	279570 Whirlpool Dryer Door Latch Kit
28	WPW10362431 Whirlpool Hinge Assembly
29	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
32	Door, Rear
33	WP3403361 Whirlpool Door
33	WP3403363 Whirlpool Door
34	WP3405184 Whirlpool White Door Handle
34	WP3405189 Whirlpool Handle
35	279264 Whirlpool Bearing and Seal Kit
36	279393 Whirlpool Terminal Block Screw and Nut Kit
37	WP3397659 Whirlpool Terminal Block
38	WP8066217 Whirlpool Hinge
39	WP691366 Whirlpool Dryer Idler Pulley Assembly
40	341241 Whirlpool Dryer Drum Belt
41	WP348780 Whirlpool Base
42	3400500 Whirlpool Screw
43	WP8066184 Whirlpool Dryer Motor Pulley
44	279827 Whirlpool Dryer Drive Motor
45	WP660658 Whirlpool Clamp
46	WP3404162 Whirlpool Clamp
47	SEAL-DOOR DRYER
48	W10850756 Whirlpool Screw
49	279318 Whirlpool Terminal
