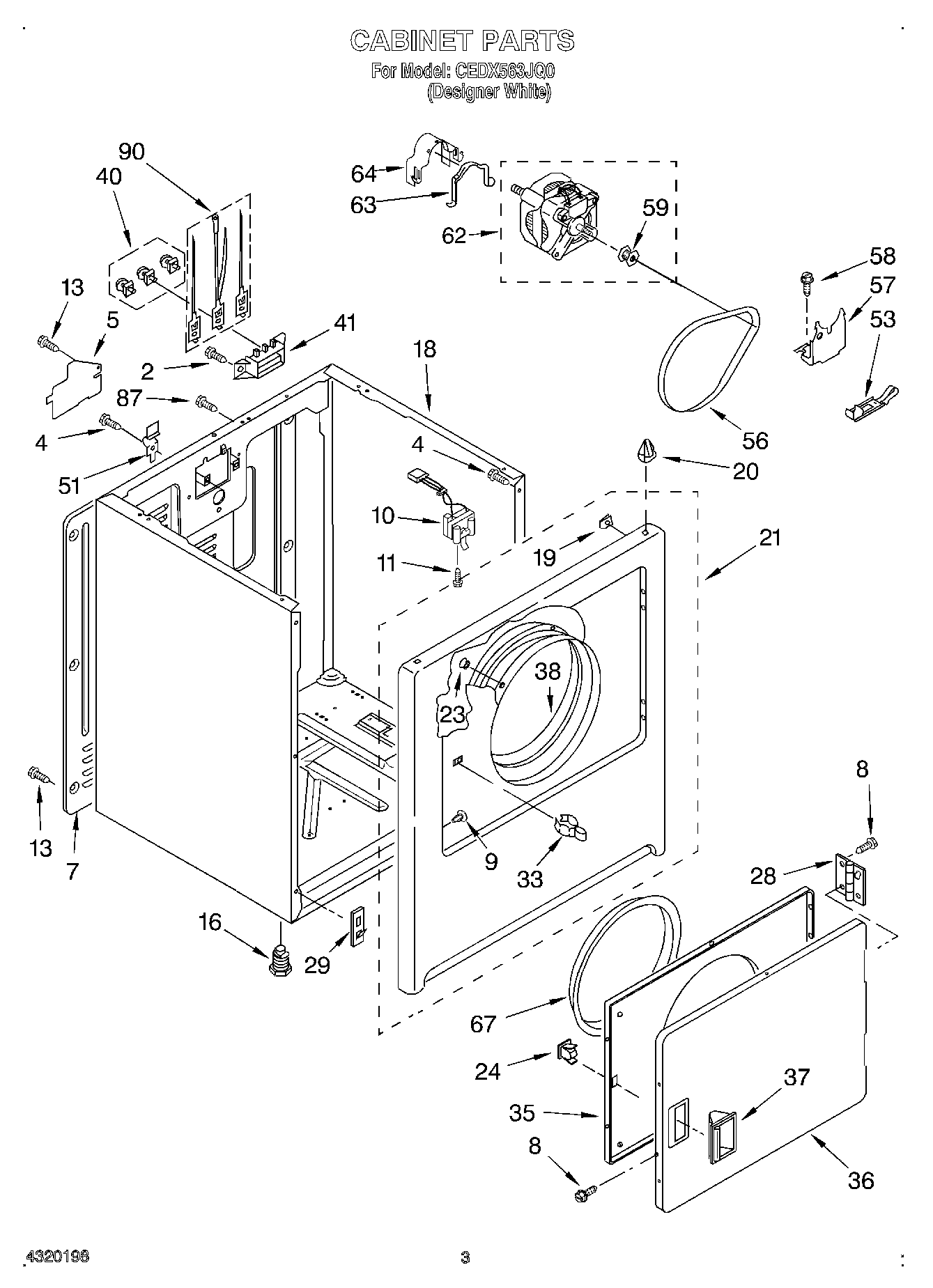

| 2 | WP308685 Whirlpool Microwave Screw |
| 4 | SCREW |
| 5 | W11539855 Whirlpool Refrigerator Pump |
| 7 | 280040 Whirlpool Rear Panel |
| 8 | WP488627 Whirlpool Refrigerator Screw |
| 9 | WP3404413 Whirlpool Plug |
| 10 | WP3406105 Whirlpool Door Switch |
| 11 | WP3395530 Whirlpool Screw |
| 13 | WP693995 Whirlpool Screw |
| 16 | 49621 Whirlpool Leveling Feet |
| 18 | Cabinet (White (Includes Illus. Nos. 5, 7, 16, 41, and 57)) |
| 19 | WP98234 Whirlpool Nut |
| 20 | WP18776 Whirlpool Lock |
| 21 | Panel Front Assembly |
| 23 | 279220 Whirlpool Clip |
| 24 | 279570 Whirlpool Dryer Door Latch Kit |
| 28 | WPW10362431 Whirlpool Hinge Assembly |
| 29 | W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip |
| 35 | Door, Rear |
| 36 | WP3403361 Whirlpool Door |
| 37 | WP3405184 Whirlpool White Door Handle |
| 38 | 279264 Whirlpool Bearing and Seal Kit |
| 40 | 279393 Whirlpool Terminal Block Screw and Nut Kit |
| 41 | WP3397659 Whirlpool Terminal Block |
| 51 | WP8066217 Whirlpool Hinge |
| 53 | WP691366 Whirlpool Dryer Idler Pulley Assembly |
| 56 | 341241 Whirlpool Dryer Drum Belt |
| 57 | WP348780 Whirlpool Base |
| 58 | 3400500 Whirlpool Screw |
| 59 | WP8066184 Whirlpool Dryer Motor Pulley |
| 62 | 279827 Whirlpool Dryer Drive Motor |
| 63 | WP660658 Whirlpool Clamp |
| 64 | WP3404162 Whirlpool Clamp |
| 67 | SEAL-DOOR DRYER |
| 87 | W10850756 Whirlpool Screw |
| 90 | 279318 Whirlpool Terminal |
