CEDX563JQ1 03 – SECTION

CEDX563JQ1 03 – SECTION

Written by

in

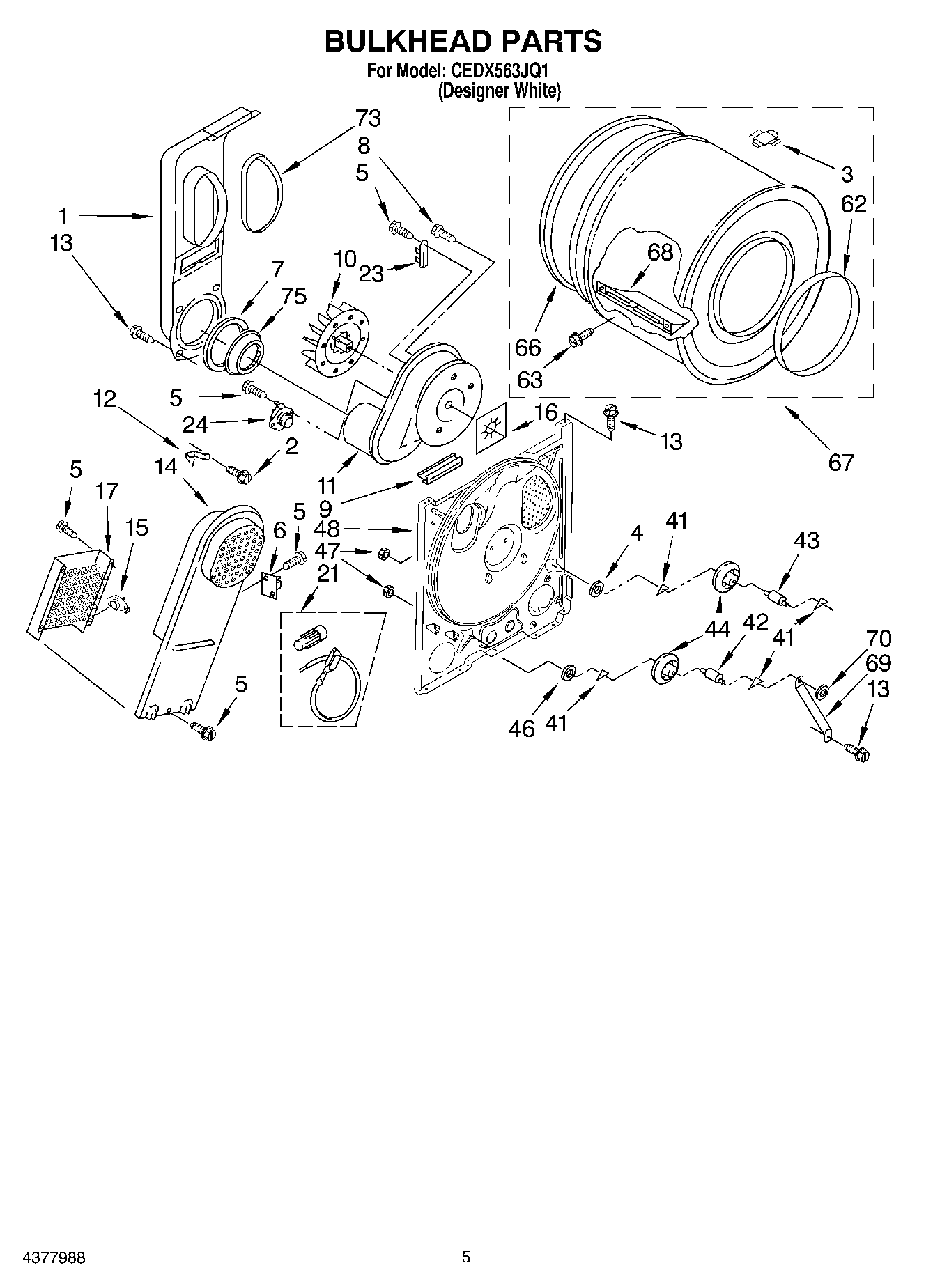

CEDX563JQ1 03 – SECTION

Products

PositionProduct
1279505 Whirlpool Chute
2WP489463 Whirlpool Refrigerator Screw
38066086 Whirlpool Plug
4WP3388703 Whirlpool Washer
5WP90767 Whirlpool Screw
6279816 Whirlpool Dryer Thermal Cut-Off Fuse Kit
7W11415783 Whirlpool Seal
8WP488729 Whirlpool Refrigerator Door Screw
9686889 Whirlpool Pad
10WP694089 Whirlpool Dryer Blower Wheel
11WP8577230 Whirlpool Housing
12279771 Whirlpool Clip
13SCREW
14WP8541818 Whirlpool Box
15WP3977767 Whirlpoo Dryer High Limit Thermostat
16Seal, Blower
17279838 Whirlpool Dryer Heating Element 5400W
21279457 Whirlpool Dryer Heating Element Wide Spade Connection
23WP3392519 Whirlpool Dryer Thermal Fuse
24WP3387134 Whirlpool Dryer Cycling Thermostat
41WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42SHAFT SUPPORT ROLLER DRYER
43SHAFT SUPPORT ROLLER DRYER
44349241T Whirlpool Dryer Drum Support Roller Kit
46WP348197 Whirlpool Washer Assembly
47WP3359452 Whirlpool Nut
48Bulkhead
62WP3394509 Whirlpool Bearing Ring
63WPW10109200 Whirlpool Screw
66239087 Whirlpool Dryer Rear Drum Seal Green Stitches
67697760 Whirlpool Drum Assembly Primary OS2
68WP342847 Whirlpool Drum Baffle
69Bracket, Support
70WP90296 Whirlpool Clip
73SEAL
75W11233063 Whirlpool Shield Assembly
