CEDX563JQ2 01 – SECTION

CEDX563JQ2 01 – SECTION

Written by

in

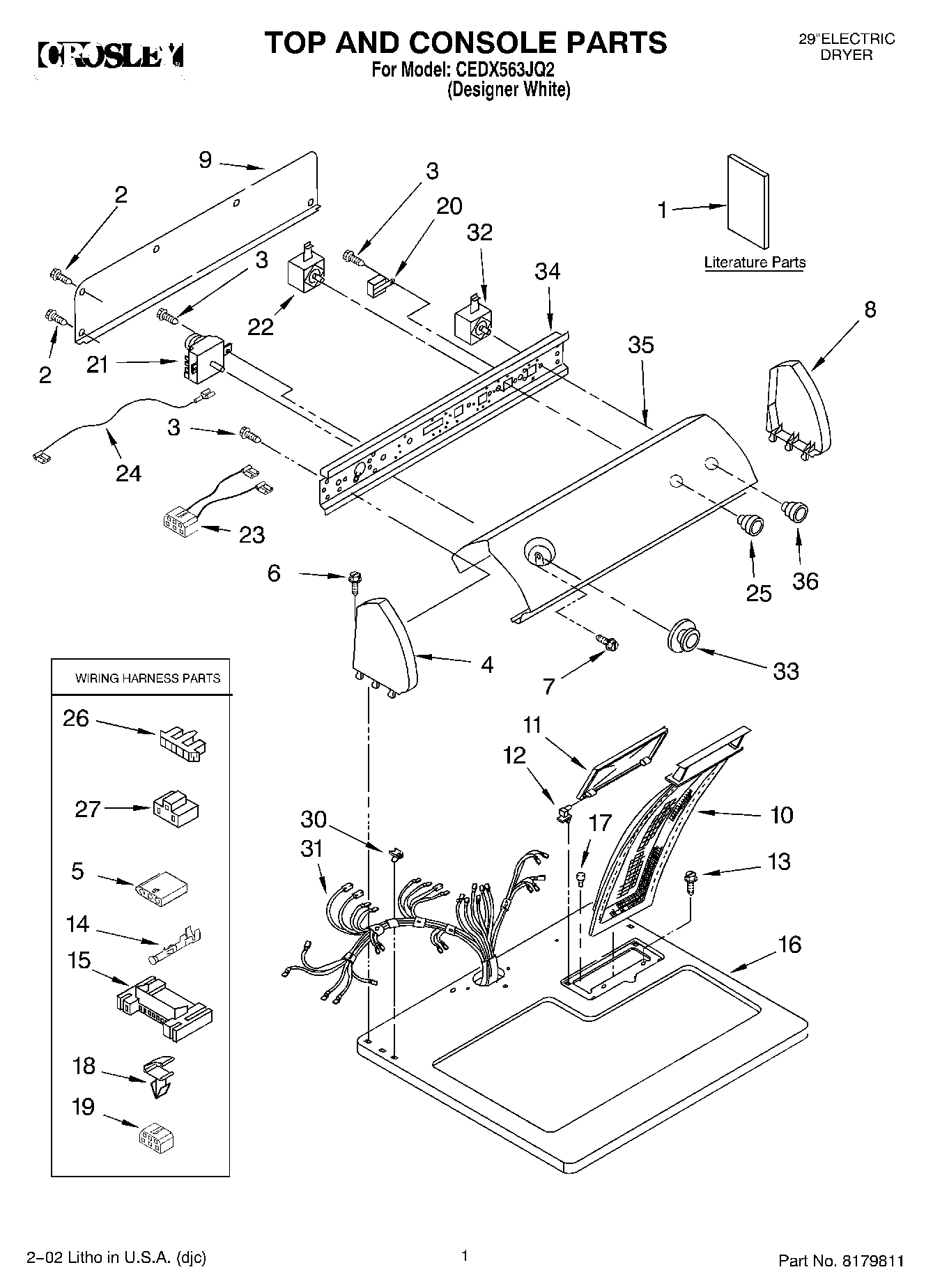

CEDX563JQ2 01 – SECTION

Products

PositionProduct
Dryer
1Literature Parts (Wiring Diagram)
1Literature Parts (Guide, Use & Care)
1WPL LIT3397618
2WP693995 Whirlpool Screw
3WPW10139210 Whirlpool Screw
53936144 Whirlpool Connector
6WP388326 Whirlpool Screw
73400859 Whirlpool Screw
8279960 Whirlpool Endcap Assembly
9W10103406 Whirlpool Rear Panel
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP94614 Whirlpool Terminal
153395683 Whirlpool Connector
16Top
17Bumper, Lint Lid
18WP3394427 Whirlpool Clip
19Block, Disconnect
20WP694419 Whirlpool Buzzer Adjuster
21WP3979618 Whirlpool Timer
223399638 Whirlpool Switch
238283286 Whirlpool Wire Harness
24Wire, Jumper (White)
24Wire, Jumper (Tan)
25WP3957796 Whirlpool Knob
26Connector, Timer
273401144 Whirlpool Connector
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
32WP3398094 Whirlpool Push To Start Switch
33WP3957746 Whirlpool Knob Assembly
34Bracket, Control
35Panel, Control
36350938 Whirlpool Spray Gun
36799344 Whirlpool Refrigerator Paint
3672017 Whirlpool Appliance Touch-Up Paint White
36WP3957800 Whirlpool Knob
36350930 Whirlpool White Spray Paint
364392065 Whirlpool Dryer Maintenance Kit
36WP689790 Whirlpool Dryer Rack
