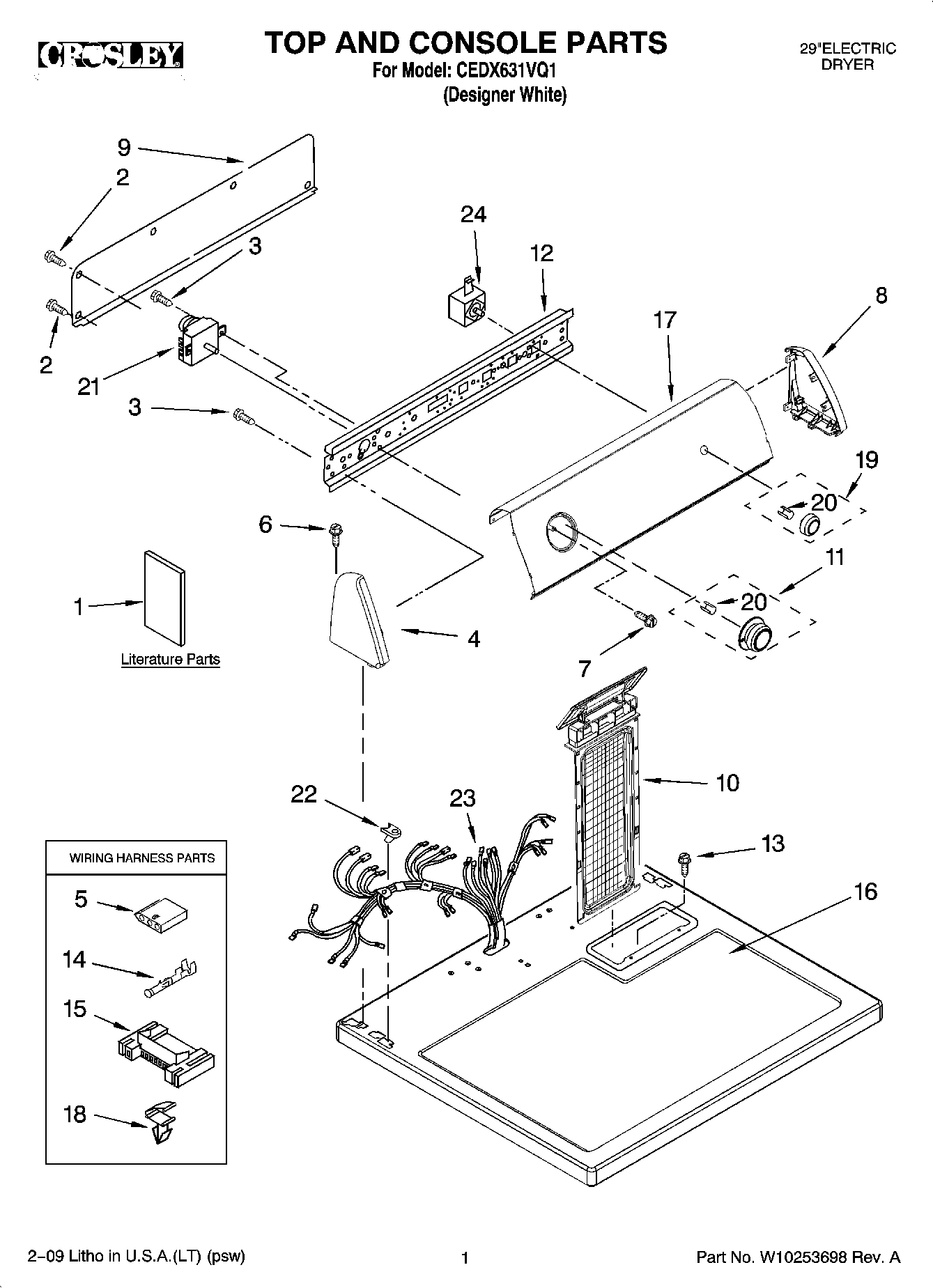

CEDX631VQ1 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Instructions, Installation
1	WPL 677818
1	Wiring Diagram
1	Sheet, Cycle Feature
1	Use & Care Guide
2	WP693995 Whirlpool Screw
3	WP90767 Whirlpool Screw
5	3936144 Whirlpool Connector
6	WP388326 Whirlpool Screw
7	3400859 Whirlpool Screw
8	W10820038 Whirlpool Endcap
9	W10103406 Whirlpool Rear Panel
10	W10874409 Whirlpool Lint Screen Filter
11	3957383 Whirlpool Knob
12	Bracket, Control
13	W11693756 Whirlpool Screw Assembly
14	WP94614 Whirlpool Terminal
15	3395683 Whirlpool Connector
16	Top
17	Panel, Control (White)
18	WP3394427 Whirlpool Clip
19	8557462 Whirlpool Knob
20	WP8536939 Whirlpool Spring Clip
21	WPW10185972 Whirlpool Timer Assembly
22	WP357213 Whirlpool Hinge Stopper
23	Harness, Wiring
24	WP3977456 Whirlpool Start Switch
