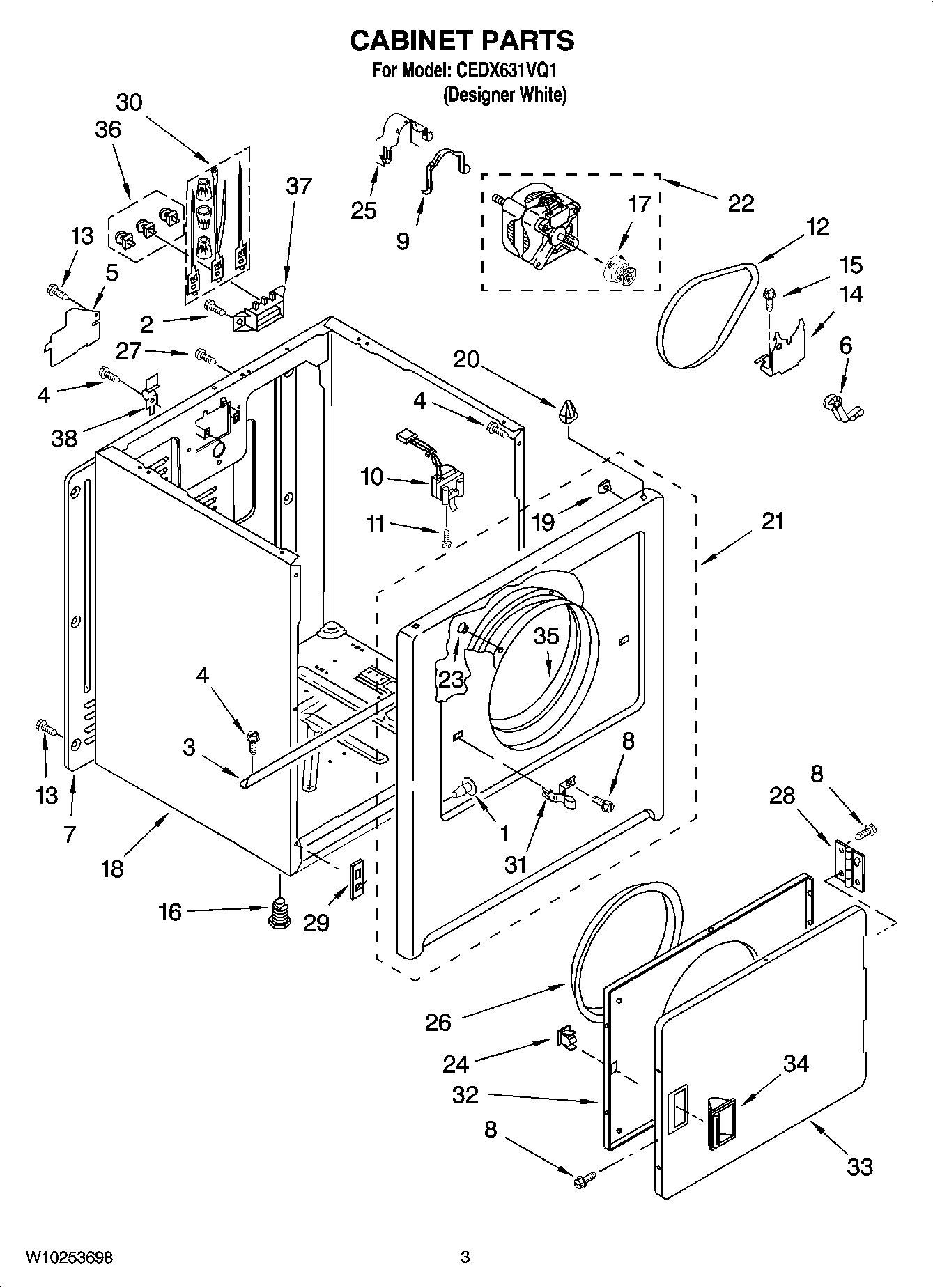

CEDX631VQ1 02 – CABINET PARTS

Products

Position	Product
1	WP3404413 Whirlpool Plug
2	WP308685 Whirlpool Microwave Screw
3	Bracket, Cabinet
4	SCREW
5	W11539855 Whirlpool Refrigerator Pump
6	WP691366 Whirlpool Dryer Idler Pulley Assembly
7	280040 Whirlpool Rear Panel
8	WP488627 Whirlpool Refrigerator Screw
9	CLAMP
10	WP3406105 Whirlpool Door Switch
11	WP3395530 Whirlpool Screw
12	341241 Whirlpool Dryer Drum Belt
13	WP693995 Whirlpool Screw
14	WP348780 Whirlpool Base
15	3400500 Whirlpool Screw
16	49621 Whirlpool Leveling Feet
17	WP8066184 Whirlpool Dryer Motor Pulley
18	8533643 Whirlpool Dryer White Cabinet
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	Panel Front Assembly
22	279827 Whirlpool Dryer Drive Motor
23	279220 Whirlpool Clip
24	279570 Whirlpool Dryer Door Latch Kit
25	WP3404162 Whirlpool Clamp
26	SEAL-DOOR DRYER
27	W10850756 Whirlpool Screw
28	WPW10362431 Whirlpool Hinge Assembly
29	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
30	279318 Whirlpool Terminal
32	Door, Rear
33	WP3403361 Whirlpool Door
34	WP3405184 Whirlpool White Door Handle
35	279264 Whirlpool Bearing and Seal Kit
36	279393 Whirlpool Terminal Block Screw and Nut Kit
37	WP3397659 Whirlpool Terminal Block
38	WP8066217 Whirlpool Hinge
