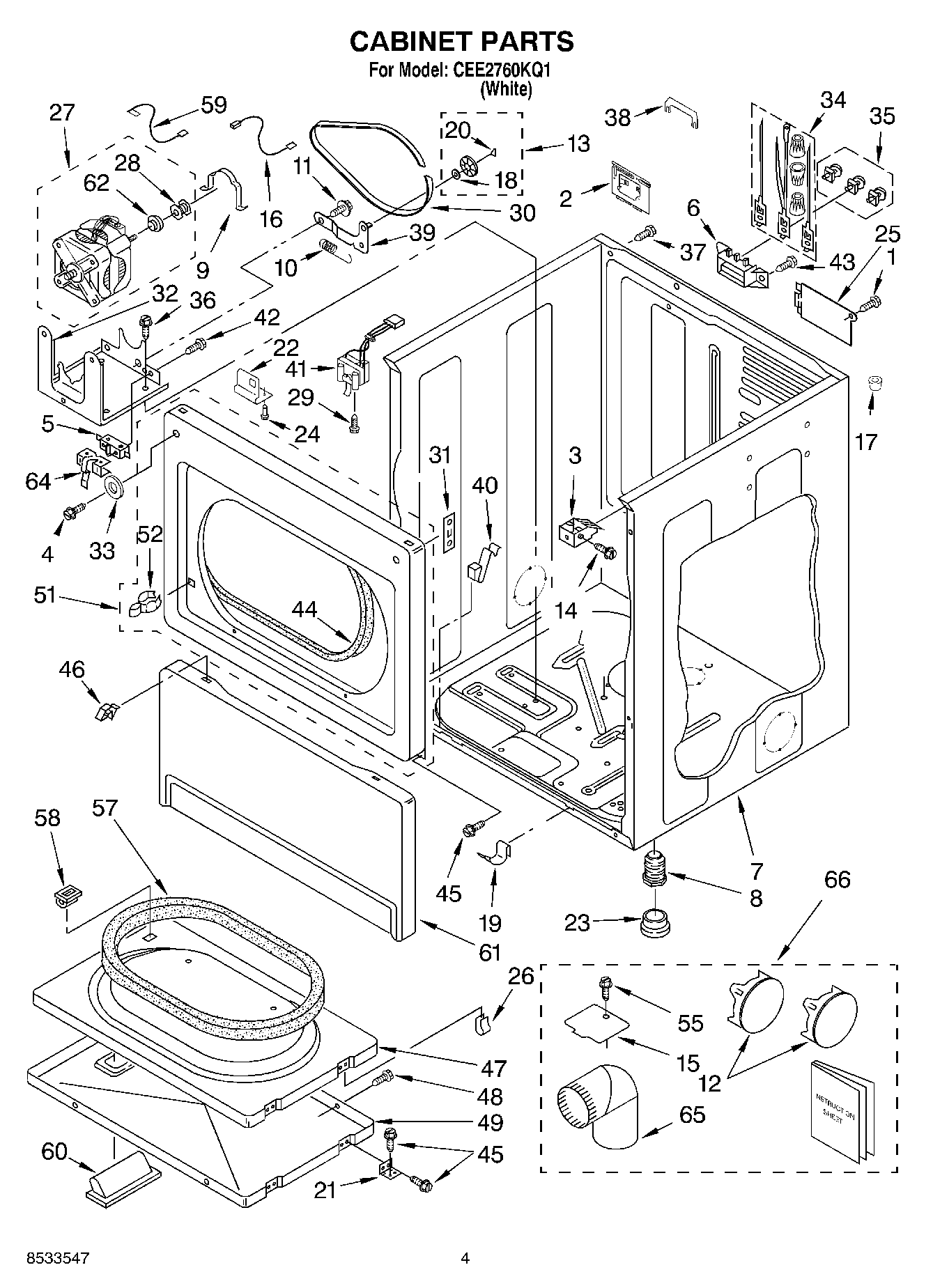

CEE2760KQ1 02 – CABINET PARTS

Products

Position	Product
1	WP304231 Whirlpool Dishwasher Screw
2	Adapter, Terminal Block
3	3391846 Whirlpool Clip
4	WP3373329 Whirlpool Dishwasher Screw
5	279782 Whirlpool Lid Switch
6	WP3397659 Whirlpool Terminal Block
7	W11417441 Whirlpool Cabinet
8	49621 Whirlpool Leveling Feet
9	WP660658 Whirlpool Clamp
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
13	279640 Whirlpool Dryer Idler Pulley Kit
14	681615 Whirlpool Screw
15	WPW10354249 Whirlpool Cover
16	Wire, Belt Switch
17	WPL 356674
18	WPW10121334 Whirlpool Washer
19	WP297092 Whirlpool Clip
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	W11175815 Whirlpool Hinge
22	Bracket, Lock
23	WP3391943 Whirlpool Foot Boot
24	Rivet (2)
25	Cover, Terminal Block
26	Nut, “U“ (4)
27	W10841144 Whirlpool Drive Motor
28	WP8066184 Whirlpool Dryer Motor Pulley
29	WP3395530 Whirlpool Screw
30	661570V Whirlpool Dryer Drum Belt
31	WP3390902 Whirlpool Clip
32	WP3387118 Whirlpool Base Assembly
33	Washer
34	279318 Whirlpool Terminal
35	279393 Whirlpool Terminal Block Screw and Nut Kit
36	SCREW
37	W10850756 Whirlpool Screw
38	U-Bracket
39	W10837240 Whirlpool Dryer Idler Pulley
40	Clip, Lint Duct
41	SWITCH-DOOR DRYER
42	WP98129 Whirlpool Screw
43	WP90767 Whirlpool Screw
44	WP3387242 Whirlpool Seal
45	WP488627 Whirlpool Refrigerator Screw
46	WP3388229 Whirlpool Dryer Spring Clip
47	280083 Whirlpool Rear Door
48	WP694091 Whirlpool Screw
49	W11663440 Whirlpool Door
51	Front Panel
55	WP693995 Whirlpool Screw
57	WP3390735 Whirlpool Door Seal
58	279570 Whirlpool Dryer Door Latch Kit
59	3398948 Whirlpool Wire
60	3389522 Whirlpool Handle
61	WP3406797 Whirlpool Toe Panel
62	WP3393657 Whirlpool Belt Retainer
64	WP8066120 Whirlpool Lever Assembly
65	4“ – 90 Elbow Optional Parts Not Included Dryer Exhaust Kit (For Side
66	W10470674 Whirlpool Dryer Side Vent Exhaust Kit
