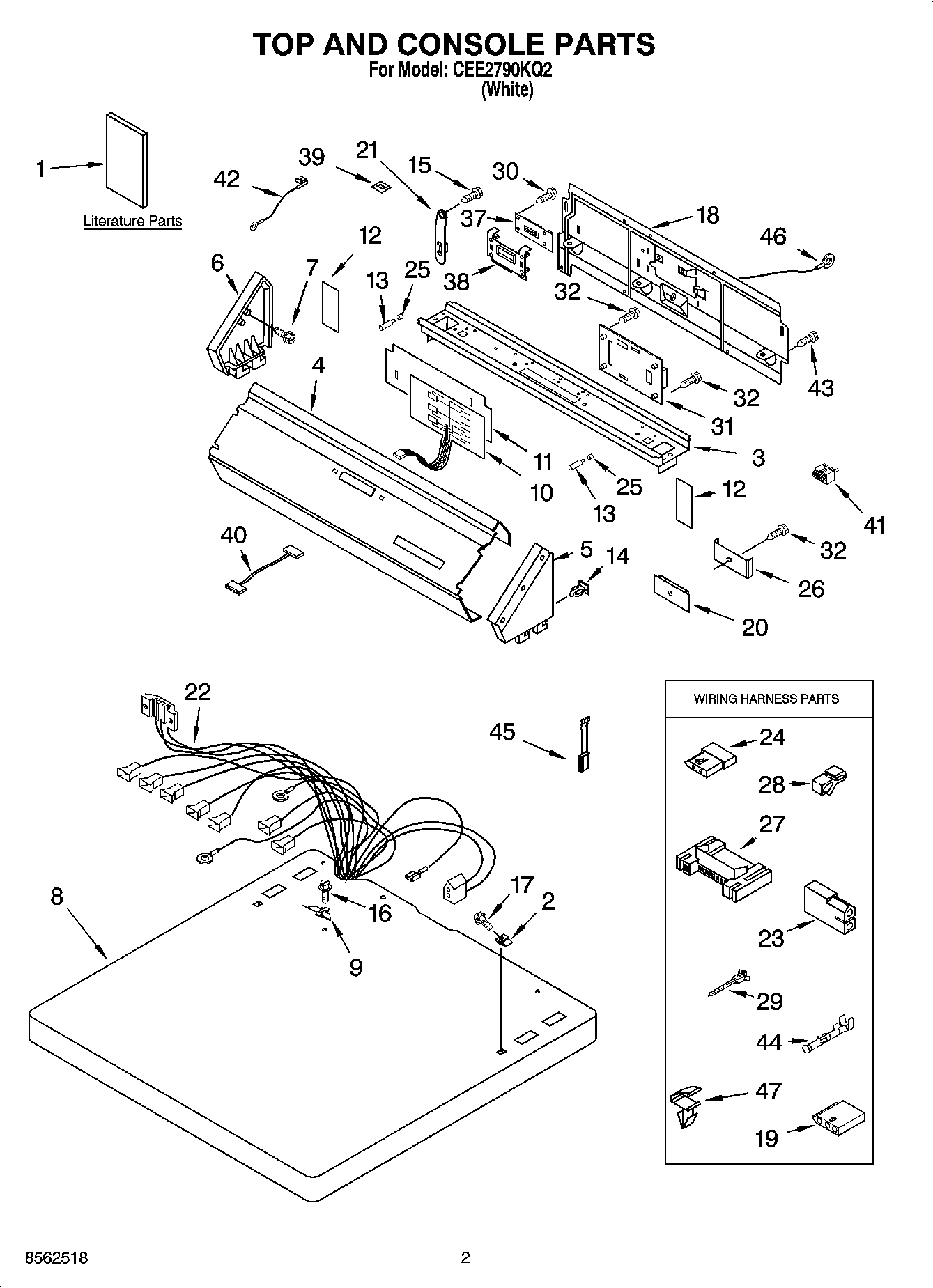

CEE2790KQ2 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	Literature Parts (Label, Wiring Diagram)
1	Literature Parts (Instructions. Installation)
1	Literature Parts (Tech Sheet)
1	Literature Parts (Service Parts List)
2	WP357213 Whirlpool Hinge Stopper
3	Bracket, Control
4	Panel, Control
5	Cap, End (R.H.)
6	W11686050 Whirlpool Drive Motor
7	WPW10109200 Whirlpool Screw
8	Top
9	Clip, Static Ground
10	Switch, Membrane
11	Backer Plate
12	Backer Plate, Side (2)
13	Mounting Stud
14	WP689559 Whirlpool Nut
15	WP488729 Whirlpool Refrigerator Door Screw
16	WP355214 Whirlpool Screw
17	WP8281182 Whirlpool Screw Assembly
18	285909 Whirlpool Rear Panel
19	3936144 Whirlpool Connector
20	Plug, Panel
21	WP8568314 Whirlpool Strap
22	Harness, Main
23	Receptacle, Latching (2-Way) (Uses Terminal 94614)
24	WP717253 Whirlpool Dishwasher Connector
25	Cap, Stud
26	Plug, Retainer
27	3395683 Whirlpool Connector
28	W10113937 Whirlpool Clamp
29	WP3391018 Whirlpool Wire Tie
30	WP90767 Whirlpool Screw
31	Control Board
32	WPW10366705 Whirlpool Screw
37	Board, Display
38	Lens, Display
39	Clip (2)
40	Harness Wire (Display)
41	Harness Jumper (Controller)
42	Ground Wire (Control Board)
43	WP3351614 Whirlpool Screw
44	WP94614 Whirlpool Terminal
45	A.C. Line Filter
46	Wire, Ground
47	WP3394427 Whirlpool Clip
