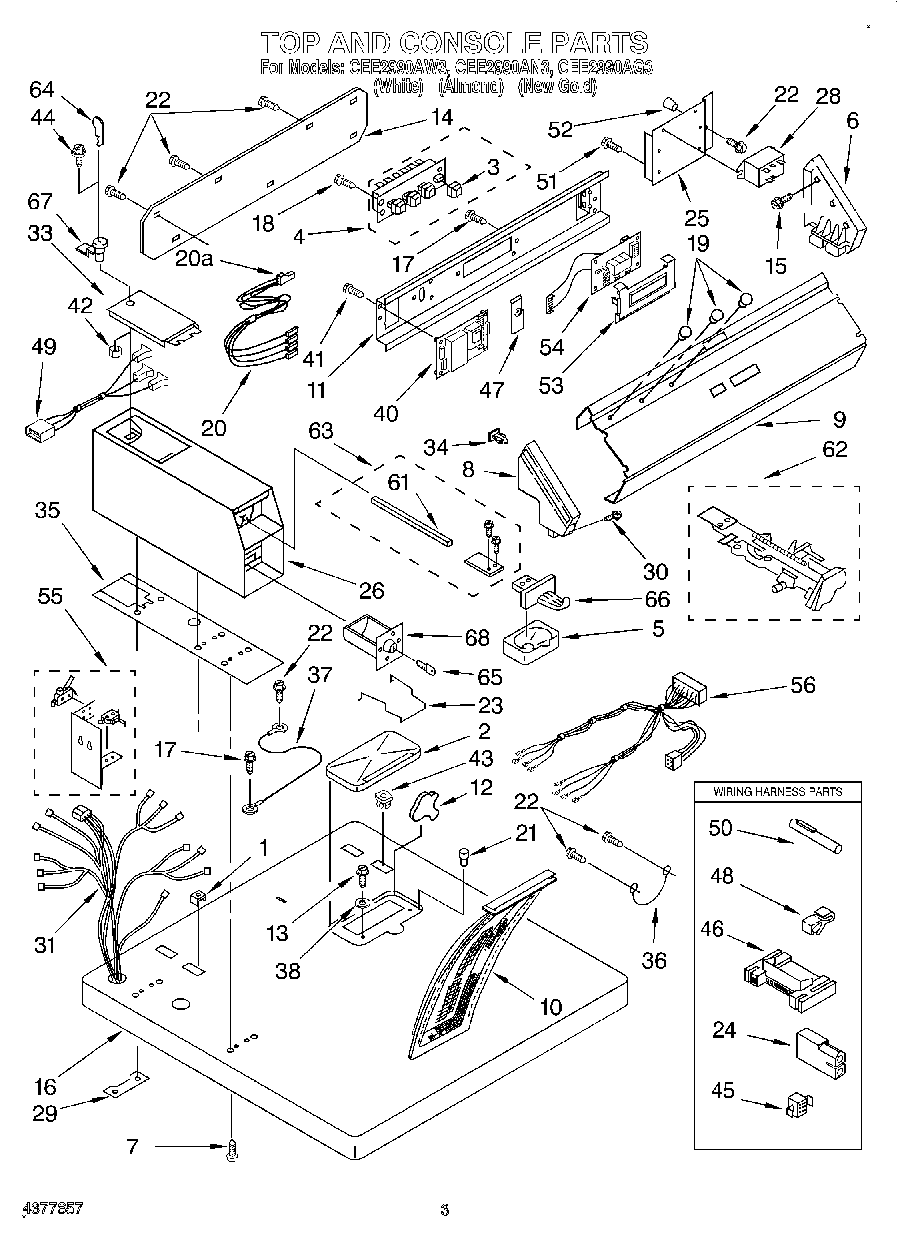

CEE2990AG3 02 – SECTION

Products

Position	Product
1	Stop, Push-In Top
2	Cover, Lint Screen
3	Button (4)
4	SWITCH-PB
5	WP385421 Whirlpool Coin Operated Laundry Funnel
6	WPL 63795
7	W10841059 Whirlpool Screw
8	End Cap (L.H.)
9	Panel, Control
10	339392V Whirlpool Dryer Lint Filter Screen
11	Bracket, Control
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	Panel, Rear
15	WPW10109200 Whirlpool Screw
16	Top (White)
16	Top (New Gold)
16	Top (Almond)
17	WP90767 Whirlpool Screw
18	WP965173 Whirlpool Dishwasher Screw
19	WP3348109 Whirlpool Light Lens
20A	Plug
20	Lights, Indicator (240 Volts)
21	Bumper, Lint Lid
22	SCREW
23	Guide, Drawer
24	Receptacle, Latching (2-Way) (Uses Terminal 94614)
25	Bracket, Relay
26	Case, Meter (New Gold)
26	Case, Meter (Almond)
26	Case, Meter (White)
28	WP8566493 Whirlpool Relay
29	3347825 Whirlpool Plate
30	WPL 64211
31	Harness, Wiring
33	Door, Service (For Almond Model)
33	Door, Service (New Gold)
33	W11283272 Whirlpool Washer Dryer Meter Case Access Door
34	WP689559 Whirlpool Nut
35	WP3954812 Whirlpool Cushion
36	Wire, Ground
37	Wire, Ground
38	Washer
40	Timer, 60 Hz.
41	WPW10366705 Whirlpool Screw
42	WP90406 Whirlpool Nut
43	Nut, Push-In (2)
44	Screw & Washer
45	WP717253 Whirlpool Dishwasher Connector
46	3395683 Whirlpool Connector
47	Clip (2)
48	Clip, Retainer
49	Harness, Console
50	Receptacle
51	WP313808 Whirlpool Screw
52	W10491983 Whirlpool Tine Tip
53	Lens, Display
54	Board, Display
55	Switch, Asy. Accountability
56	Harness, Door & Vault Switch
