CEE2990AN1 02 – SECTION

CEE2990AN1 02 – SECTION

Written by

in

CEE2990AN1 02 – SECTION

Products

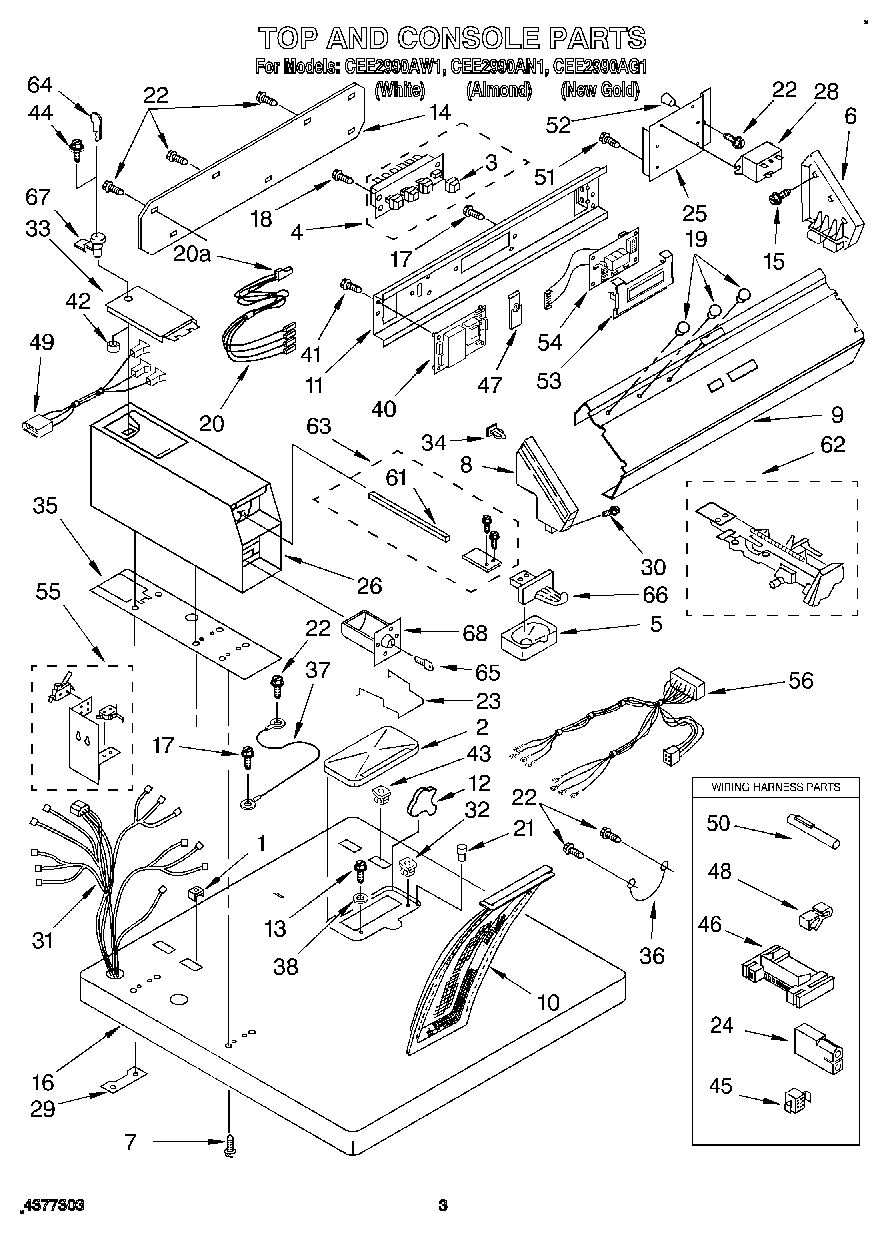

PositionProduct
1Stop, Push-In Top
2Cover, Lint Screen
3Button (4)
4SWITCH-PB
5WP385421 Whirlpool Coin Operated Laundry Funnel
6WPL 63795
7W10841059 Whirlpool Screw
8End Cap (L.H.)
9Panel, Control
10339392V Whirlpool Dryer Lint Filter Screen
11Bracket, Control
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Panel, Rear
15WPW10109200 Whirlpool Screw
16Top (New Gold)
16Top (Almond)
16Top (White)
17WP90767 Whirlpool Screw
18WP965173 Whirlpool Dishwasher Screw
19WP3348109 Whirlpool Light Lens
20APlug
20Lights, Indicator (240 Volts)
21Bumper, Lint Lid
22SCREW
23Guide, Drawer
24Receptacle, Latching (2-Way) (Uses Terminal 94614)
25Bracket, Relay
26Case, Meter (White)
26Case, Meter (New Gold)
26Case, Meter (Almond)
27W11715721 Whirlpool Screw Assembly
28WP8566493 Whirlpool Relay
293347825 Whirlpool Plate
30WPL 64211
31Harness, Wiring
3298460 Whirlpool Nut
33Door, Service (For Almond Model)
33W11283272 Whirlpool Washer Dryer Meter Case Access Door
33Door, Service (New Gold)
34WP689559 Whirlpool Nut
35WP3954812 Whirlpool Cushion
36Wire, Ground
37Wire, Ground
38Washer
40Timer, 60 Hz.
41WPW10366705 Whirlpool Screw
42WP90406 Whirlpool Nut
43Nut, Push-In (2)
44Screw & Washer
45WP717253 Whirlpool Dishwasher Connector
463395683 Whirlpool Connector
47Clip (2)
48Clip, Retainer
49Harness, Console
50Receptacle
51WP313808 Whirlpool Screw
52W10491983 Whirlpool Tine Tip
53Lens, Display
54Board, Display
55Switch, Asy. Accountability
56Harness, Door & Vault Switch
