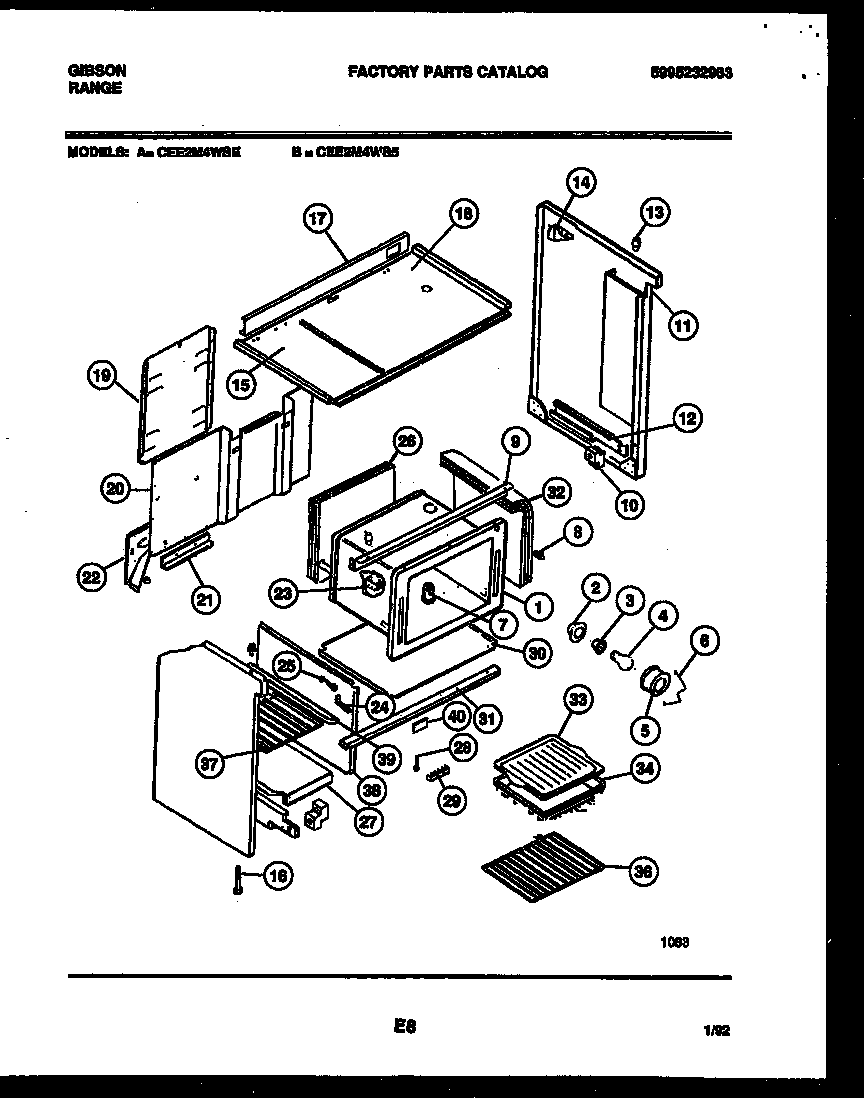

CEE2M4WS5 06 – BODY PARTS

CEE2M4WS5 06 – BODY PARTS

Written by

in

CEE2M4WS5 06 – BODY PARTS

Products

PositionProduct
*67427WCI 3934058
1OVEN ASSEMBLY-RIGHT
2WCI 3051511
3316116400 Frigidaire Oven Light Socket
4316538904 Frigidaire Oven Lamp Light
55304524341 Frigidaire Lens
6RETAINER-LENS
7TUBE – OVEN VENT
8WCI 5301314211
9WCI 5303294354
10GUIDE-DRAWER FRNT (2)
11SIDE PANEL, RH WHITE
11SIDE PANEL RH-ALMD
11SIDE PANEL, LH WHITE
11SIDE PANEL LH-ALMD
12RAIL, DRAWER LH
12WCI 5308015746
13BUMPER, COOKTOP (4)
14GUSSET – BKGRD (2)
15ROD-TOP SUPPORT
16SCREW-LEVELING (4)
17WCI 5303209319
18WCI 5303294355
19WIRE, COVER
20WCI 3204827
21WCI 5301307085
22WCI 3204822
22WCI 3204823
23BRACKET-THERMO BULB (2)
24INSULATION
27BOTTOM COMPLETE
28PLATE=GROUND STRAP
295304409888 Frigidaire Oven Terminal Block with Hardware
30WCI 3206275
31Channel,oven support ,front
32INSULATION – OVEN WRAP
33BROILER GRILL
34BROILER PAN
36316067902 Frigidaire Oven Rack
37RACK – COMPLETE
38PARTITION – CENTER
39RAIL – COMPL RACK (2)
40WCI 3204318
