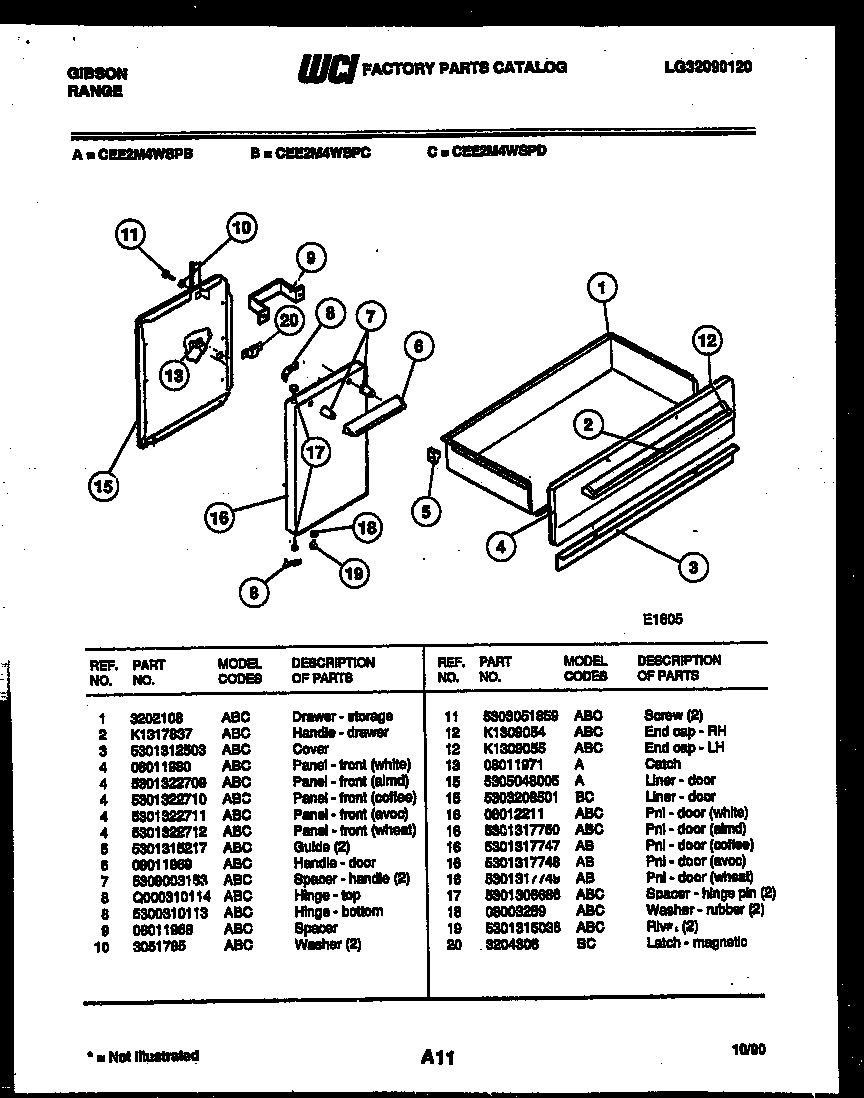

CEE2M4WSPC 03 – DRAWER PARTS

Products

Position	Product
1	DRAWER-UTILITY
2	WCI K1317837
3	COVER-TOE SPACE
4	PANEL – DRAWER (ALMD)
4	WCI 5301322710
4	WCI 5301322712
4	WCI 5301322711
4	PANEL-DRAWER, WHITE
5	GUIDE (2)
6	HANDLE
7	SPACER (2)
8	WCI 5300310113
8	WCI Q000310114
9	WCI 08011968
10	WASHER-PADDED (3) (NON-ILLUSTRATED)
11	SCREW 10 X 24 (2)
12	WCI K1309055
12	WCI K1309054
15	LINER
16	PANEL COMPLETE (ALMOND)
16	WCI 5301317748
16	WCI 5301317747
16	PANEL COMPLETE (WHITE)
16	WCI 5301317749
17	SPACER-HINGE PIN (2)
18	WASHER-PADDED
19	WCI 5301315036
20	LATCH-MAGNETIC
