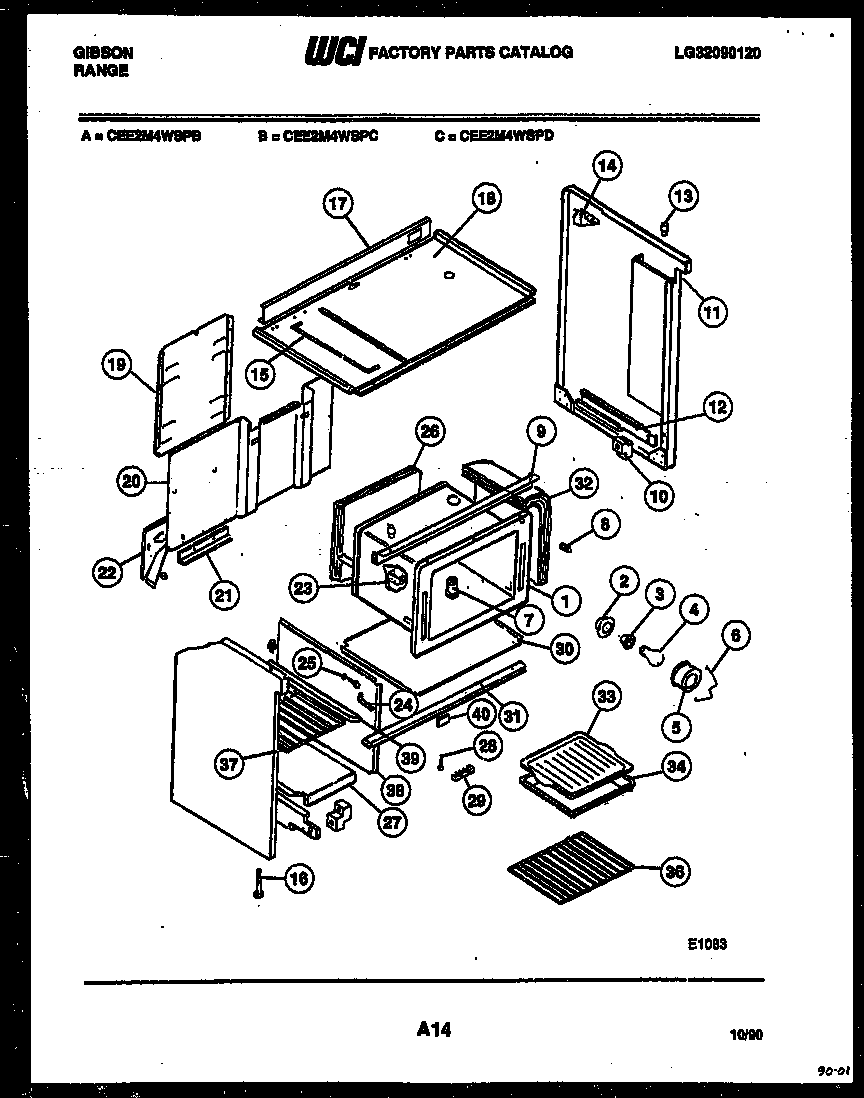

CEE2M4WSPD 06 – BODY PARTS

CEE2M4WSPD 06 – BODY PARTS

Written by

in

CEE2M4WSPD 06 – BODY PARTS

Products

PositionProduct
*21967WCI 3934058
1WCI 3204608
2HOUSING – LIGHT
3316116400 Frigidaire Oven Light Socket
4316538904 Frigidaire Oven Lamp Light
55304524341 Frigidaire Lens
6RETAINER-LENS
7TUBE – OVEN VENT
8SWITCH-DOOR
9WCI 5303209334
10GUIDE-DRAWER FRNT (2)
11WCI 08012532
11WCI 08012534
11SIDE PANEL, RH WHITE
11PANEL-SIDE LH WHEAT
11SIDE PANEL, LH WHITE
11SIDE PANEL RH-ALMD
11PANEL-SIDE RH WHEAT
11SIDE PANEL LH-ALMD
11WCI 08012533
11WCI 08012531
12GLIDE – DWR RH
12GLIDE – DWR LH
13BUMPER, COOKTOP (4)
14GUSSET – BKGRD (2)
15ROD-TOP SUPPORT
16SCREW-LEVELING (4)
17WCI 5303209319
18WCI 08011947
19PANEL – WIRE COVER
20WCI 3204827
21WCI 5301307085
22WCI 3204823
22WCI 3204822
23BRACKET-THERMO BULB (2)
26INSULATION
27BOTTOM COMPLETE
28PLATE=GROUND STRAP
295304409888 Frigidaire Oven Terminal Block with Hardware
30WCI 3203574
31Channel,oven support ,front
32INSULATION – OVEN WRAP
33WCI 5303131356
34WCI 3200723
36316067902 Frigidaire Oven Rack
37RACK – COMPLETE
38PARTITION – CENTER
39RAIL – COMPL RACK (2)
