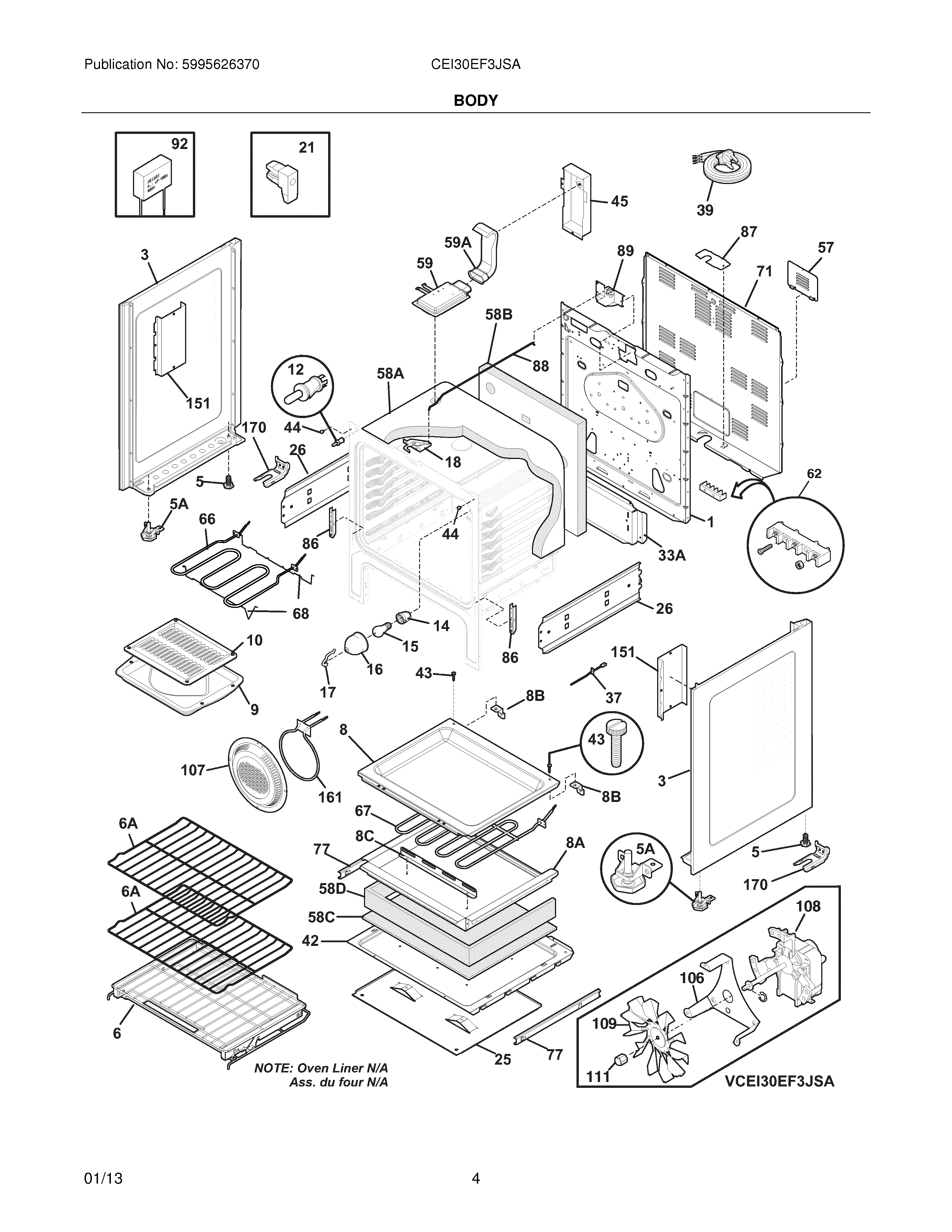

CEI30EF3JSA 05 – BODY

CEI30EF3JSA 05 – BODY

Written by

in

CEI30EF3JSA 05 – BODY

Products

Position	Product
NI	5303285179 Frigidaire Oven Door Screw
NI	316418901 Frigidaire Oven Screw
NI	316001017 Frigidaire Screw
NI	WCI 316580265
NI	316089500 Frigidaire Oven Screw
NI	316021109 Frigidaire Oven Screw
NI	316205500 Frigidaire Oven Nut
NI	316418900 Frigidaire Oven Screw
NI	5303289910 Frigidaire Oven Screw
NI	316021105 Frigidaire Oven Screw
NI	WCI 316580513
1	WCI 316502005
3	316400145 Frigidaire Panel Assembly
3	316400144 Frigidaire Panel
5	316272900 Frigidaire Oven Leg Levelling Plastic Screw
5A	5304509869 Frigidaire Oven Leveling Leg Assembly
6	316571800 Frigidaire Rack Assembly
6A	316496201 Frigidaire Oven Rack
8	WCI 316505602
8C	316505801 Frigidaire Oven Support
8B	316506000 Frigidaire Oven Bracket
8A	316505701 Frigidaire Oven Base
9	316081901 Frigidaire Oven Baking Pan
10	316082001 Frigidaire Oven Insert
12	316445500 Frigidaire Oven Switch
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
16	5304524341 Frigidaire Lens
17	316087500 Frigidaire Oven Retainer
18	316405800 Frigidaire Assembly Latch
21	316408000 Frigidaire Oven Clip Assembly
25	316406200 Frigidaire Oven Shield
26	WCI 316409000
33A	WCI 316402100
37	316490000 Frigidaire Oven Range Temperature Sensor
39	WCI 318113111
42	316400701 Frigidaire Oven Shield
43	316282700 Frigidaire Oven Screw
44	316517600 Frigidaire Oven Spacer
45	WCI 316509900
57	316283600 Frigidaire Oven Cover
58D	316509700 Frigidaire Insulation
58B	WCI 316406502
58C	316509600 Frigidaire Insulation
58A	316406604 Frigidaire Insulation
59A	WCI 316510001
59	WCI 316215200
62	5304409888 Frigidaire Oven Terminal Block with Hardware
66	316430900 Frigidaire Oven Broil Element
67	316505500 Frigidaire Oven Element
68	316429100 Frigidaire Oven Support Bracket
71	316283204 Frigidaire Oven Shield
77	316456700 Frigidaire Oven Glide Assembly
86	316441300 Frigidaire Receptacle
87	316081202 Frigidaire Bracket
88	316203500 Frigidaire Oven Rod
89	MOTOR
92	WCI 316539900
106	316404100 Frigidaire Oven Bracket
107	WCI 316026702
108	316256100 Frigidaire Oven Fan Motor
109	318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111	316136600 Frigidaire Oven Range Lock Nut
151	316404601 Frigidaire Oven Shield
161	316211603 Frigidaire Oven Element
170	316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
170	316116000 Frigidaire Screw
