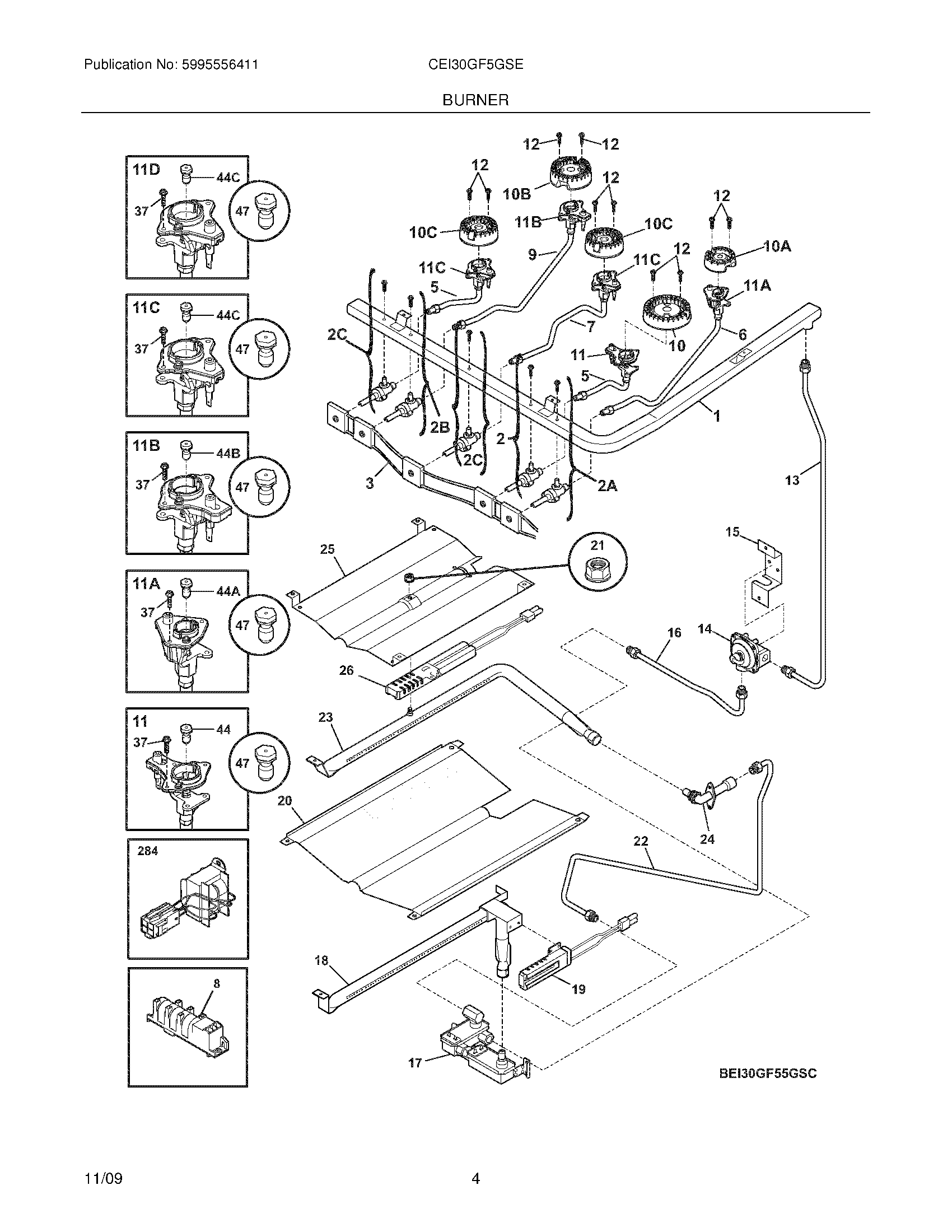

CEI30GF5GSE 05 – BURNER

CEI30GF5GSE 05 – BURNER

Written by

in

CEI30GF5GSE 05 – BURNER

Products

PositionProduct
NIWCI 316526900
NIWCI 316434900
NI316001017 Frigidaire Screw
NIWCI 316443200
NIWCI 316064103
NI316021132 Frigidaire Screw
NIScrew,cup pt ,8-18 x 0.375 ,chrome
NI316089500 Frigidaire Oven Screw
NI316021105 Frigidaire Oven Screw
NI316401500 Frigidaire Oven Cover
NI5303271648 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NI316215600 Frigidaire Oven Screw
NI316021104 Frigidaire Oven Screw Assembly
1WCI 316505200
2CWCI 316520706
2WCI 316520703
2AWCI 316520705
2BWCI 316520708
3WCI 316518200
5WCI 316509300
6WCI 316509200
7WCI 316509400
8SPARK MODULE
9WCI 316526600
10316438400 Frigidaire Range Sealed Burner, 16/17K
10A316438200 Frigidaire Range Sealed Burner, 5K
10B316438600 Frigidaire Range Sealed Burner, 14K
10C316558300 Frigidaire Oven 9.5L Sealed Burner
11316543202 Frigidaire Igniter/Orifice Assembly
11C316540700 Frigidaire Igniter/Orifice Assembly
11A316540800 Frigidaire Igniter/Orifice Assembly
11B316543204 Frigidaire Igniter/Orifice Assembly
12316540900 Frigidaire Oven Screw
13WCI 316545700
145304521339 Frigidaire Regulator
15316091600 Frigidaire Oven Bracket
165304507348 Frigidaire Oven Tube
17316404901 Frigidaire Oven Valve
18316404400 Frigidaire Oven Burner
195304506545 Frigidaire Gas Oven Range Igniter
205304519024 Frigidaire Oven Baffle
215303013272 Frigidaire Oven Nut
225304507768 Frigidaire Oven Tube
23316404304 Frigidaire Oven Burner
245304516894 Frigidaire Oven Elbow
25WCI 316401301
26BAKE IGNITOR
37316240600 Frigidaire Igniter Mounting Screw
44A316527504 Frigidaire Oven Orifice
44B316527511 Frigidaire Oven Orifice
44C316527500 Frigidaire Oven Burner Orifice
44316527508 Frigidaire Oven Orifice
47WCI 316542410
284316536100 Frigidaire Transformer
