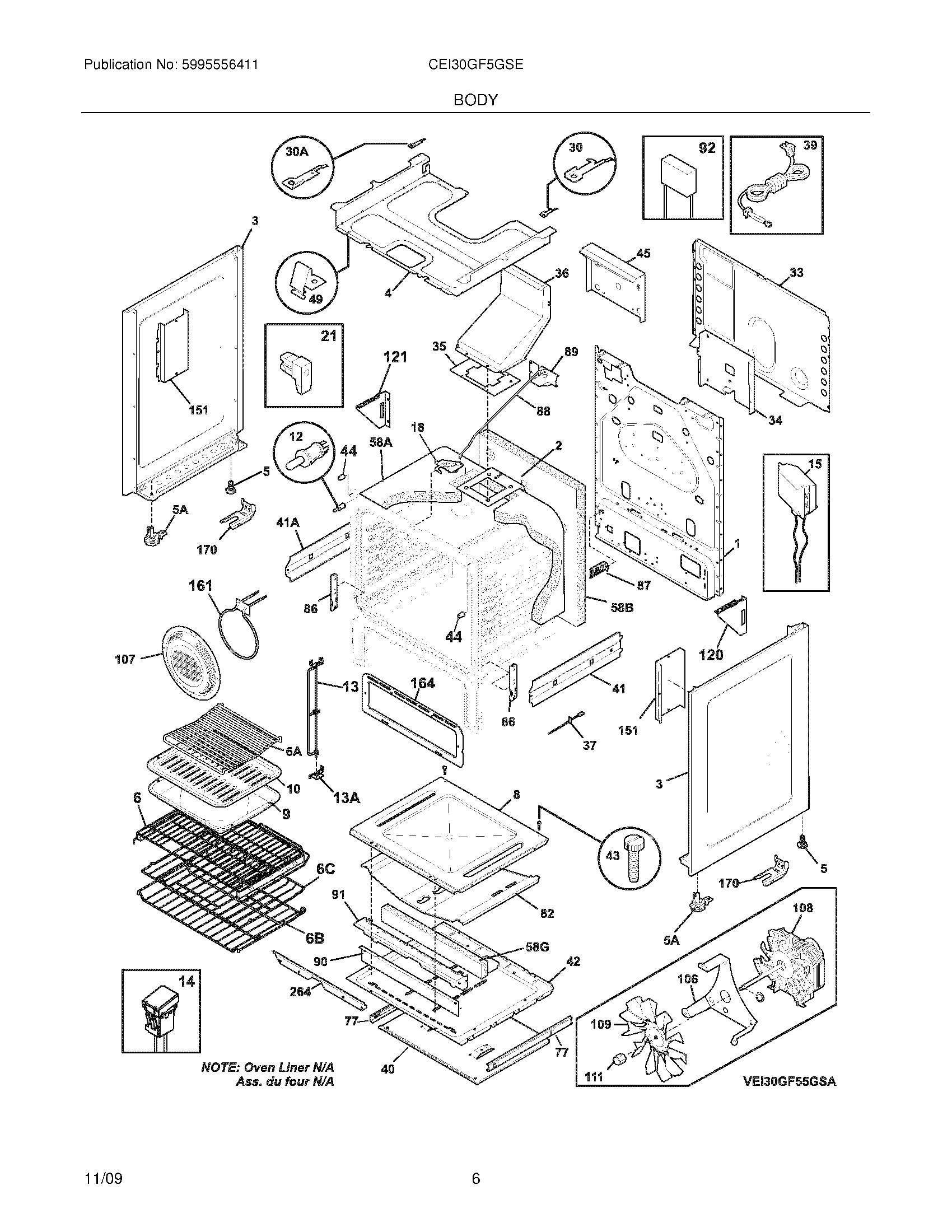

CEI30GF5GSE 07 – BODY

Products

Position	Product
NI	316021109 Frigidaire Oven Screw
NI	316432800 Frigidaire Clip
NI	316089500 Frigidaire Oven Screw
NI	316418901 Frigidaire Oven Screw
NI	316279600 Frigidaire Screw
NI	3203550 Frigidaire Oven Plug
NI	316001017 Frigidaire Screw
NI	WCI 316512529
NI	316021105 Frigidaire Oven Screw
NI	5303285179 Frigidaire Oven Door Screw
NI	316008401 Frigidaire Washer P-1
1	WCI 316504500
2	WCI 316525800
3	316400145 Frigidaire Panel Assembly
3	316400144 Frigidaire Panel
4	WCI 316505300
5A	5304509869 Frigidaire Oven Leveling Leg Assembly
5	316272900 Frigidaire Oven Leg Levelling Plastic Screw
6A	WCI 318219500
6	316571800 Frigidaire Rack Assembly
6B	316496205 Frigidaire Oven Rack
6C	316496201 Frigidaire Oven Rack
8	316400603 Frigidaire Oven Stove Bottom Panel
9	316081901 Frigidaire Oven Baking Pan
10	316082001 Frigidaire Oven Insert
12	316445500 Frigidaire Oven Switch
13A	WCI 316543000
13	WCI 316529004
14	316508301 Frigidaire Switch Assembly Rack Sen
15	WCI 316510701
18	316405800 Frigidaire Assembly Latch
21	316408000 Frigidaire Oven Clip Assembly
30	316217700 Frigidaire Oven Bracket
30A	WCI 316217701
33	316402500 Frigidaire Oven Shield
34	WCI 316404200
35	316542102 Frigidaire Flue Gasket
36	WCI 316507901
37	316490000 Frigidaire Oven Range Temperature Sensor
39	5304534000 Frigidaire Cord
40	WCI 316409600
41	WCI 316409200
41A	WCI 316409201
42	316400700 Frigidaire Shield
43	316282700 Frigidaire Oven Screw
44	316517600 Frigidaire Oven Spacer
45	WCI 316508501
49	WCI 316260000
58A	316403700 Frigidaire Insulation
58G	08067973 Frigidaire 0 Insulation
58B	WCI 316403601
77	316456700 Frigidaire Oven Glide Assembly
82	316400801 Frigidaire Oven Shield
86	316580700 Frigidaire Door Hinge Receptacle
87	316401202 Frigidaire Bracket
88	316232702 Frigidaire Rod
89	MOTOR
90	WCI 316401100
91	WCI 316401000
92	WCI 316539900
106	316404100 Frigidaire Oven Bracket
107	WCI 316026702
108	5304467897 Frigidaire Oven Kit
109	318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111	316136600 Frigidaire Oven Range Lock Nut
120	WCI 316279204
121	WCI 316279205
151	WCI 316404600
161	WCI 316211604
170	316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
170	316116000 Frigidaire Screw
264	316404700 Frigidaire Bracket
