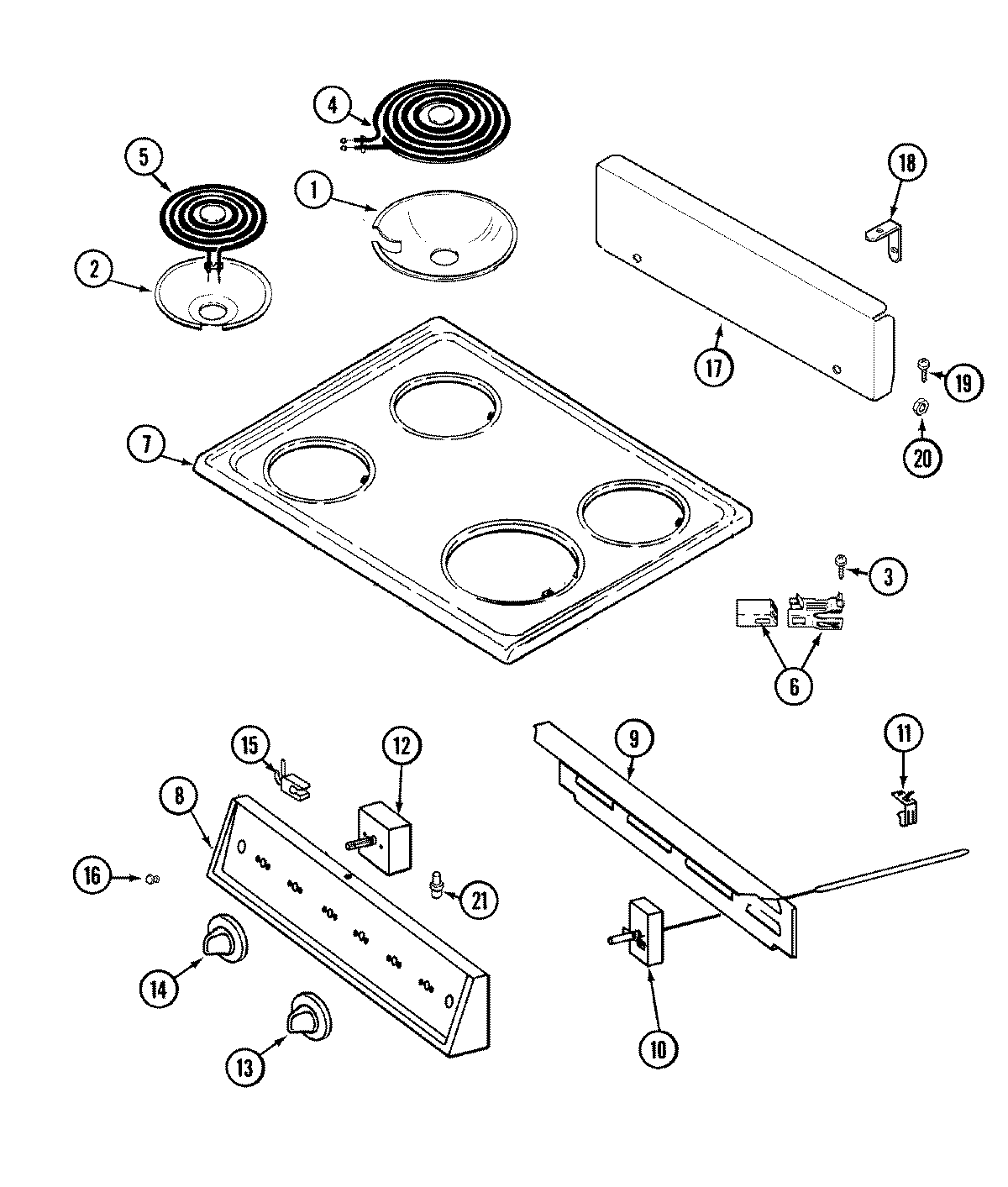

CEL1110AAT 03 – TOP ASSEMBLY/CONTROL PANEL

Products

Position	Product
NI	MAY 74003270
1	DRIP BOWL 8" W/HOLE CHROME
2	WPW10196406 Whirlpool 6" Chrome Drip Bowl
2	WB32X107 GE Range Stove Cooktop 6" Drip Bowl Chrome Large Hole
3	WP9761346 Whirlpool Stove Surface Burner Element
3	MAY 7118P013-60
4	WPY04000035 Whirlpool Surface Element
4	WPW10345407 Whirlpool Surface Element
5	WPY04000036 Whirlpool Surface Element
6	MAY 1430306K
7	MAY 74006389
7	MAY 3801F187-51
8	MAY 74003279
9	MAY 74006390
9	WP7101P126-60 Whirlpool Screw
10	WP74009277 Whirlpool Thermostat Assembly
10	MAY 74003267
11	WP7112P004-60 Whirlpool Thermal Clip
12	WPW10179654 Whirlpool Refrigerator Infinite Switch
12	SCREW
12	SWITCH-IND
13	WP74003280 Whirlpool Knob Assembly
14	WP7737P030-60 Whirlpool Knob Switch
15	W10852510 Whirlpool Indicator Light
16	W11690131 Whirlpool Light Lens
17	MAY 74003269
18	MAY 74003271
19	WP7101P072-60 Whirlpool Screw
20	W10080180 Whirlpool Nut
21	MAY 8024P003-60
