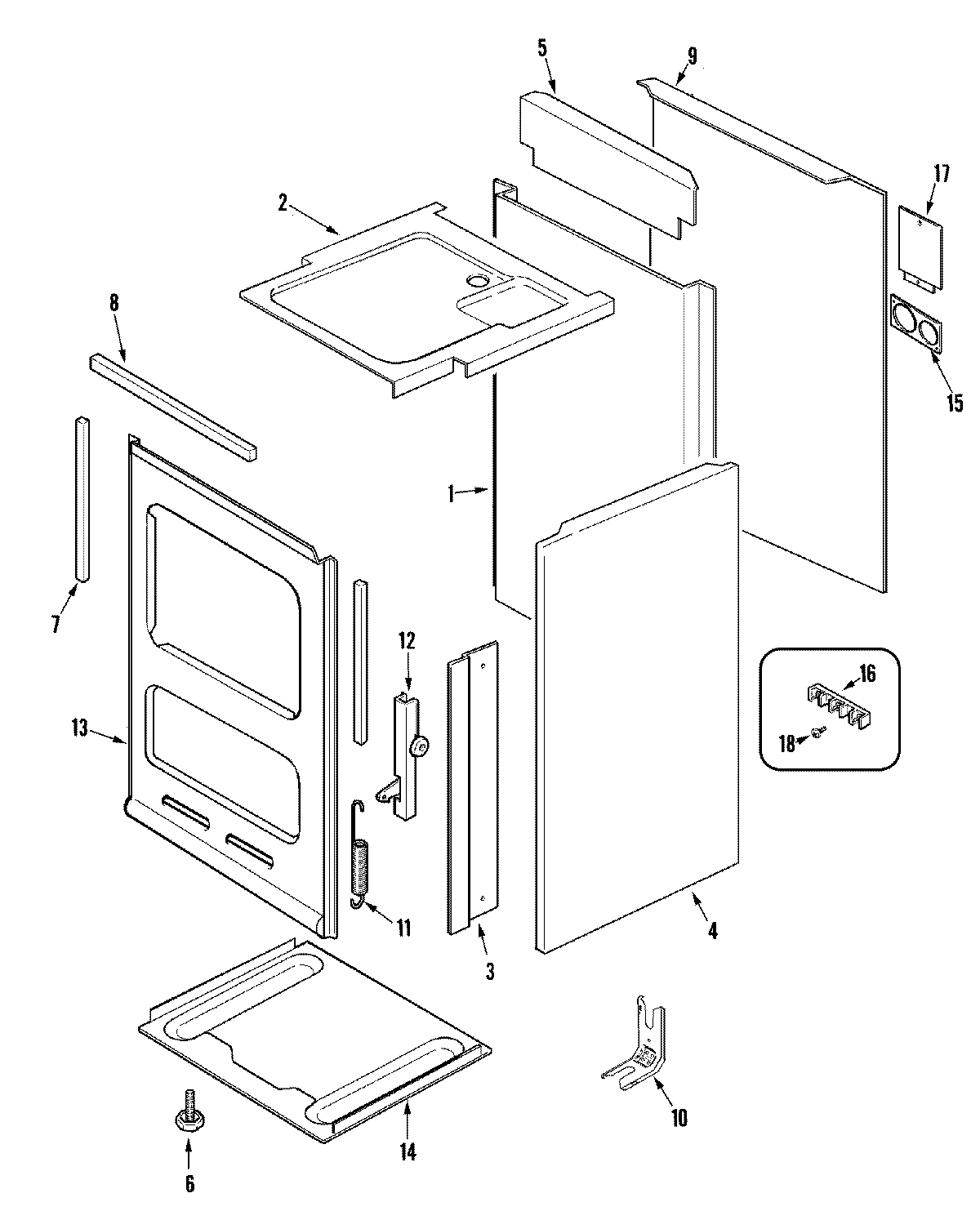

CEL1115AAQ 01 – BODY (AAQ/AAW)

CEL1115AAQ 01 – BODY (AAQ/AAW)

Written by

in

CEL1115AAQ 01 – BODY (AAQ/AAW)

Products

PositionProduct
1MAY 74003104
2MAY 74009271
3MAY 74009270
3MAY 7101P356-60
4MAY 74006391
5MAY 3604F145-51
6W11665456 Whirlpool Range Level Foot
7MAY 7212P015-60
8MAY 7212P014-60
9MAY 3604F144-51
10WP3801F656-51 Whirlpool Range Anti-Tip Bracket
10MAY 74004004
11MAY 7803P032-60
12MAY 74003820
12MAY 74003819
12MAY 7101P188-60
13MAY 74007536
13MAY 7103P071-60
13MAY 7101P037-60
14WP7101P126-60 Whirlpool Screw
14MAY 74003973
15WP4159193 Whirlpool Screw
15PLATE, CONDUIT REINFORCEMENT
16WPW10245259 Whirlpool Terminal Block
17MAY 4005F286-51
17MAY 7101P074-60
18WP7103P027-60 Whirlpool Nut
18SCREW (10ABX1.0-ZN)
