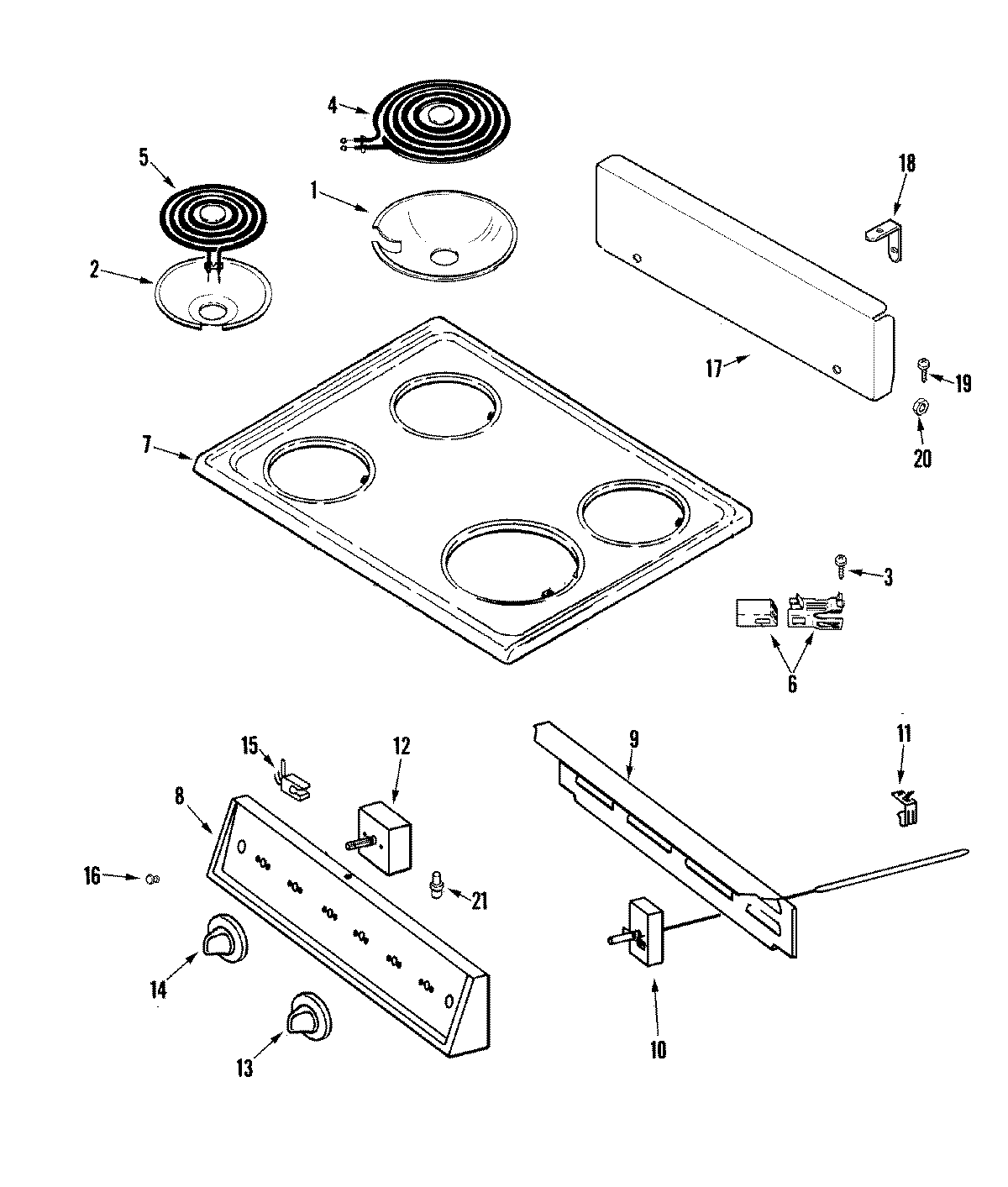

CEL1115AAQ 04 – TOP ASSEMBLY/CONTROL PANEL(AAQ/AAW)

CEL1115AAQ 04 – TOP ASSEMBLY/CONTROL PANEL(AAQ/AAW)

Written by

in

CEL1115AAQ 04 – TOP ASSEMBLY/CONTROL PANEL(AAQ/AAW)

Products

PositionProduct
NIMAY 74003270
NIMAY 8113P743-60
NIMAY 8113P555-60
1DRIP BOWL 8" W/HOLE CHROME
2WPW10196406 Whirlpool 6" Chrome Drip Bowl
2WB32X107 GE Range Stove Cooktop 6" Drip Bowl Chrome Large Hole
3WP74004005 Whirlpool Screw
4WP9761346 Whirlpool Stove Surface Burner Element
5WPW10345407 Whirlpool Surface Element
612001676 Whirlpool Range Surface Burner Receptacle Kit
7MAY 3801F187-51
7MAY 74006389
8MAY 74010601
9MAY 74006390
9WP7101P126-60 Whirlpool Screw
10WP74009277 Whirlpool Thermostat Assembly
11WP7112P004-60 Whirlpool Thermal Clip
12SCREW
12WPW10179654 Whirlpool Refrigerator Infinite Switch
12SWITCH-IND
13MAY 74010602
14MAY 74010603
15W10852510 Whirlpool Indicator Light
16W11690131 Whirlpool Light Lens
17MAY 74010600
18BRKT, BACKGUARD
18MAY 74003271
19WP7101P072-60 Whirlpool Screw
20W10080180 Whirlpool Nut
21MAY 7103P105-60
21MAY 8024P003-60
