CEL1115AAW 02 – DOOR/DRAWER (AAQ/AAW)

CEL1115AAW 02 – DOOR/DRAWER (AAQ/AAW)

Written by

in

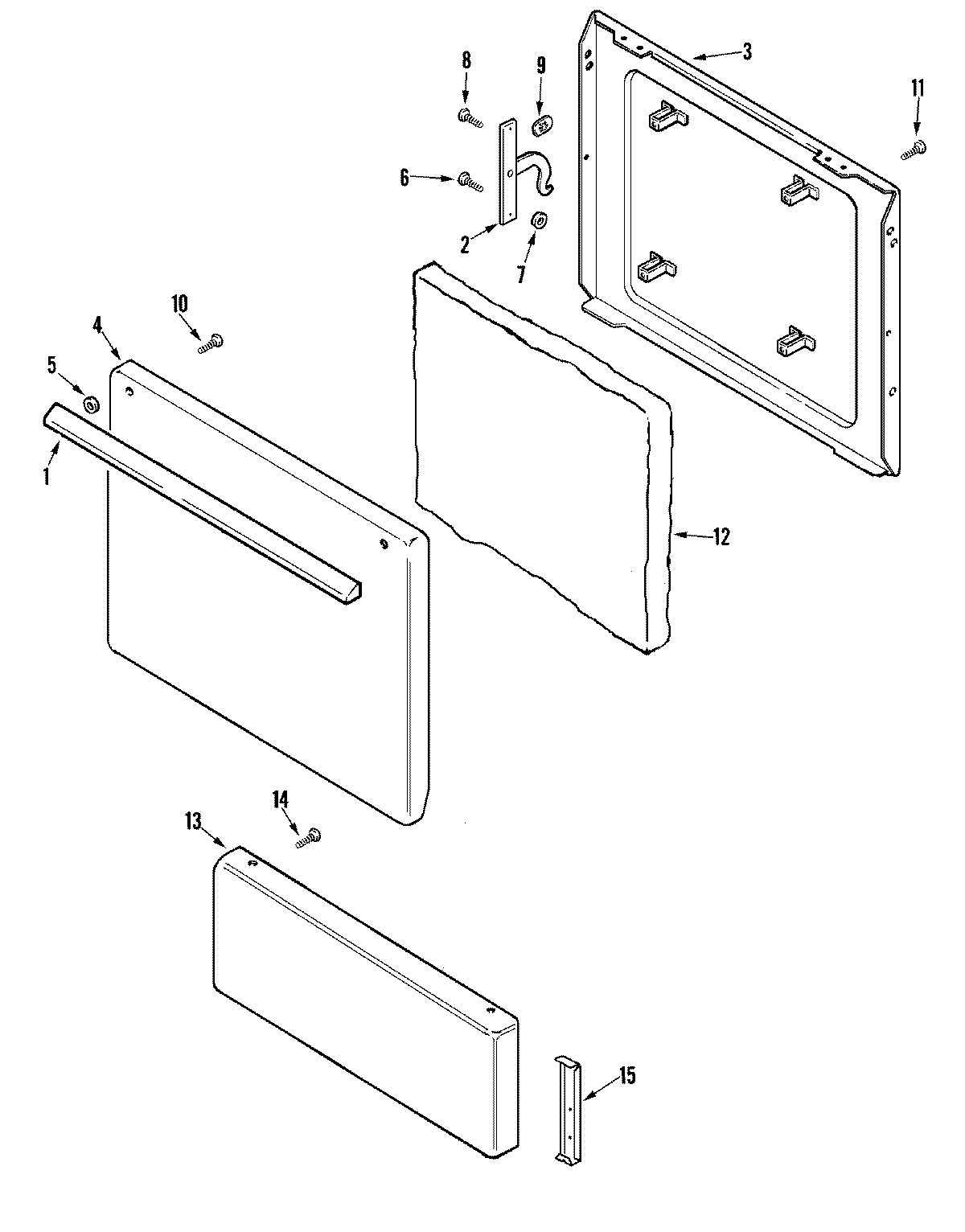

CEL1115AAW 02 – DOOR/DRAWER (AAQ/AAW)

Products

PositionProduct
1MAY 74010477
2MAY 3418A046-34
2MAY 3418A047-34
3MAY 2402W102-19
4MAY 2401W059-71
5MAY 74005232
6MAY 74004004
7MAY 7103P072-60
9W10080180 Whirlpool Nut
10WP74005233 Whirlpool Screw
11WP7101P126-60 Whirlpool Screw
12MAY 74009878
13MAY 74003275
14WP98008544 Whirlpool Screw Assembly
15MAY 74003277
15SCREW
