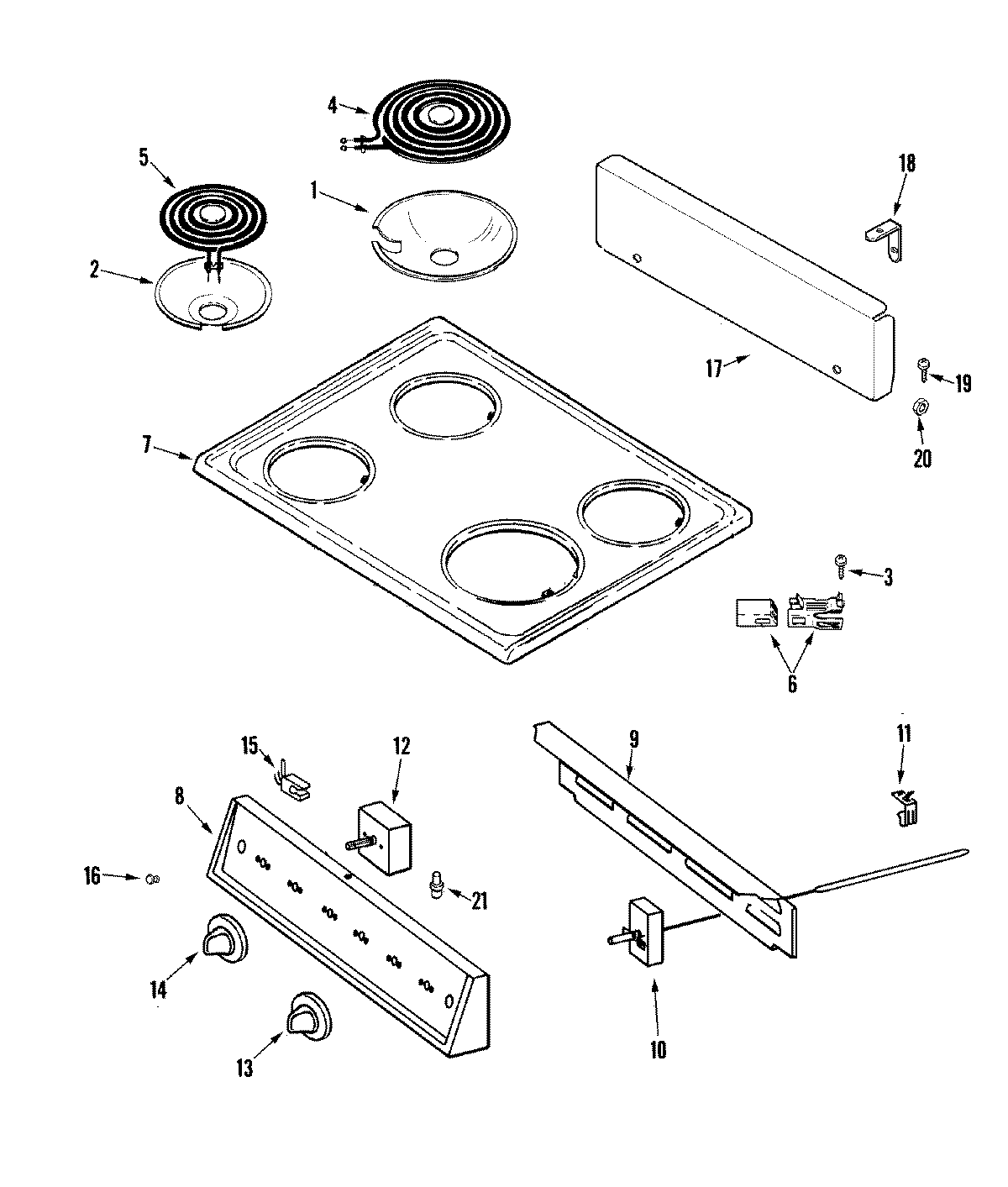

CEL1115AAW 04 – TOP ASSEMBLY/CONTROL PANEL(AAQ/AAW)

Products

Position	Product
NI	MAY 8113P743-60
NI	MAY 74003270
NI	MAY 8113P555-60
1	DRIP BOWL 8" W/HOLE CHROME
2	WB32X107 GE Range Stove Cooktop 6" Drip Bowl Chrome Large Hole
2	WPW10196406 Whirlpool 6" Chrome Drip Bowl
3	WP74004005 Whirlpool Screw
4	WP9761346 Whirlpool Stove Surface Burner Element
5	WPW10345407 Whirlpool Surface Element
6	12001676 Whirlpool Range Surface Burner Receptacle Kit
7	MAY 2002F065-81
7	MAY 3801F187-51
8	MAY 74010598
9	MAY 74006390
9	WP7101P126-60 Whirlpool Screw
10	WP74009277 Whirlpool Thermostat Assembly
11	WP7112P004-60 Whirlpool Thermal Clip
12	SWITCH-IND
12	SCREW
12	WPW10179654 Whirlpool Refrigerator Infinite Switch
13	WPW10183393 Whirlpool Knob
14	MAY 7737P041-60
15	W10852510 Whirlpool Indicator Light
16	W11690131 Whirlpool Light Lens
17	MAY 74010581
18	BRKT, BACKGUARD
18	MAY 74003271
19	WP7101P072-60 Whirlpool Screw
20	W10080180 Whirlpool Nut
21	MAY 7103P105-60
21	MAY 8024P003-60
