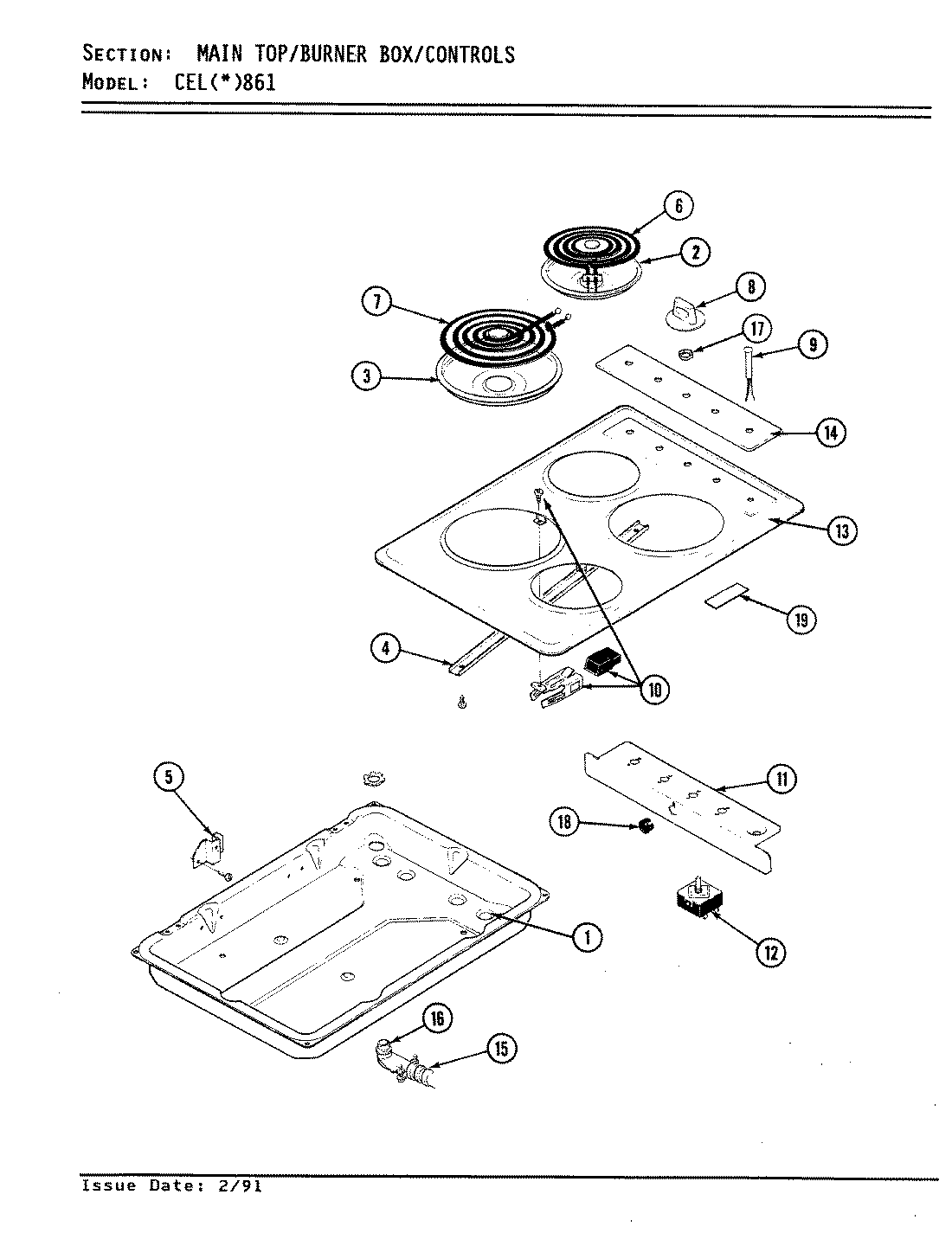

CELS861 01 – TOP ASSEMBLY

Products

Position	Product
1	BOTTOM, BURNER BOX
1	MAY 8112P001-60
2	MAY 7725P008-60
3	MAY 7725P009-60
4	MAY 3802F070-80
5	MAY 7807P003-60
5	MAY 7111P002-60
5	MAY 7101P063-60
5	BRACKET, MAIN TOP SUPPORT
5	MAY 7118P004-60
6	MAY 7406P037-60
7	MAY 7406P039-60
7	MAY 7406P030-60
8	WP7737P026-60 Whirlpool Knob Switch
9	SCREW, GROUND (GRN)
9	MAY 7407P062-60
10	MAY 1430306K
11	MAY 3604F133-80
12	W10900107 Whirlpool Oven Surface Element Switch
13	MAY 2002W063-30
13	MAY 2002W063-90
14	MAY 7720P147-60
15	MAY 3414F035-44
15	MAY 3801F072-45
16	MAY 7417P004-60
16	MAY 8018P001-60
17	MAY 7103P021-60
18	MAY 8008P014-60
19	MAY 7719P060-60
