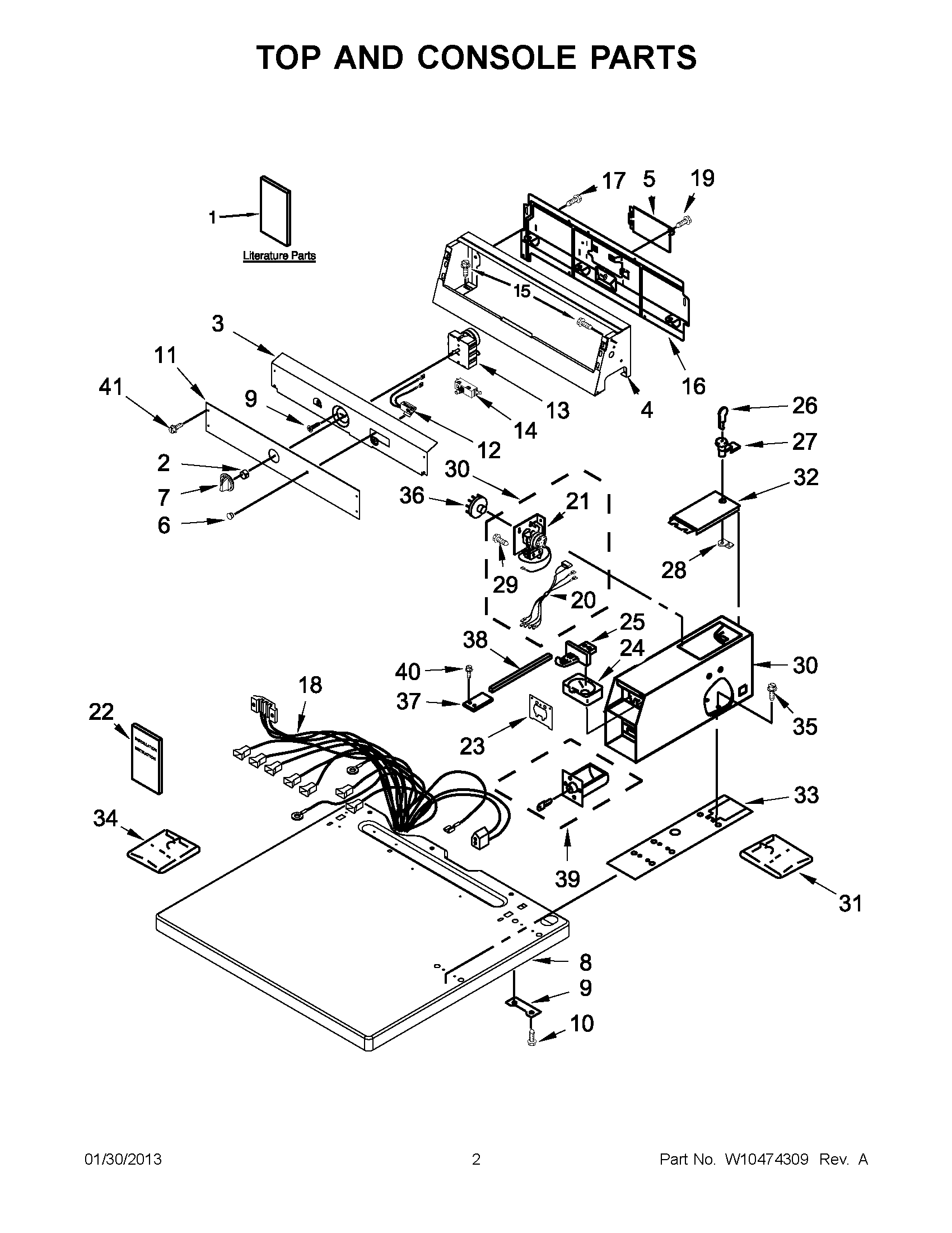

CEM2743BQ0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	WIRING DIAGRAM
1	INSTALLATION INSTRUCTIONS
2	Clip, Knob
3	W10461070 Whirlpool Bracket
4	W10461094 Whirlpool Control Panel
5	WPW10119283 Whirlpool Terminal Cover
6	WPW10133502 Whirlpool Lens
7	W10492415 Whirlpool Knob
8	W10492412 Whirlpool Top
8	WPW10136707 Whirlpool Top Assembly
9	3347825 Whirlpool Plate
10	W10841059 Whirlpool Screw
11	W10461113 Whirlpool Overlay
12	W10662107 Whirlpool Light Bulb
13	WPW10327105 Whirlpool Cycle Switch
14	W11097274 Whirlpool Push-To-Start Switch
15	WP90767 Whirlpool Screw
16	W11089934 Whirlpool Rear Panel
17	WP488729 Whirlpool Refrigerator Door Screw
18	W10129843 Whirlpool Wire Harness
19	303776 Whirlpool Dishwasher Screw
20	W10177791 Whirlpool Wire Harness
21	W11451464 Whirlpool Dryer Timer
22	WPL 8316524
23	279950 Whirlpool Funnel
24	WP385421 Whirlpool Coin Operated Laundry Funnel
25	W11126319 Whirlpool Washer Dryer Coin Chute
25	WPL 8316265
25	Inserts (Not Shown
26	KEY
27	W11315637 Whirlpool Lock Assembly
28	WP90406 Whirlpool Nut
29	339805 Whirlpool Screw
30	WPW10461200 Whirlpool Case
31	WP3406965 Whirlpool Coin Chute
32	W11283272 Whirlpool Washer Dryer Meter Case Access Door
33	WP3954812 Whirlpool Cushion
34	WPL 8316532
35	W11715721 Whirlpool Screw Assembly
36	WP339855 Whirlpool Cam
36	WP3387974 Whirlpool Cam
36	WP343777 Whirlpool Cam
37	3390424 Whirlpool Extension
38	WP8576635 Whirlpool Bolt
39	W11190039 Whirlpool Coin Box Assembly
40	WP3400029 Whirlpool Dishwasher Nut
41	WPW10131119 Whirlpool Screw
