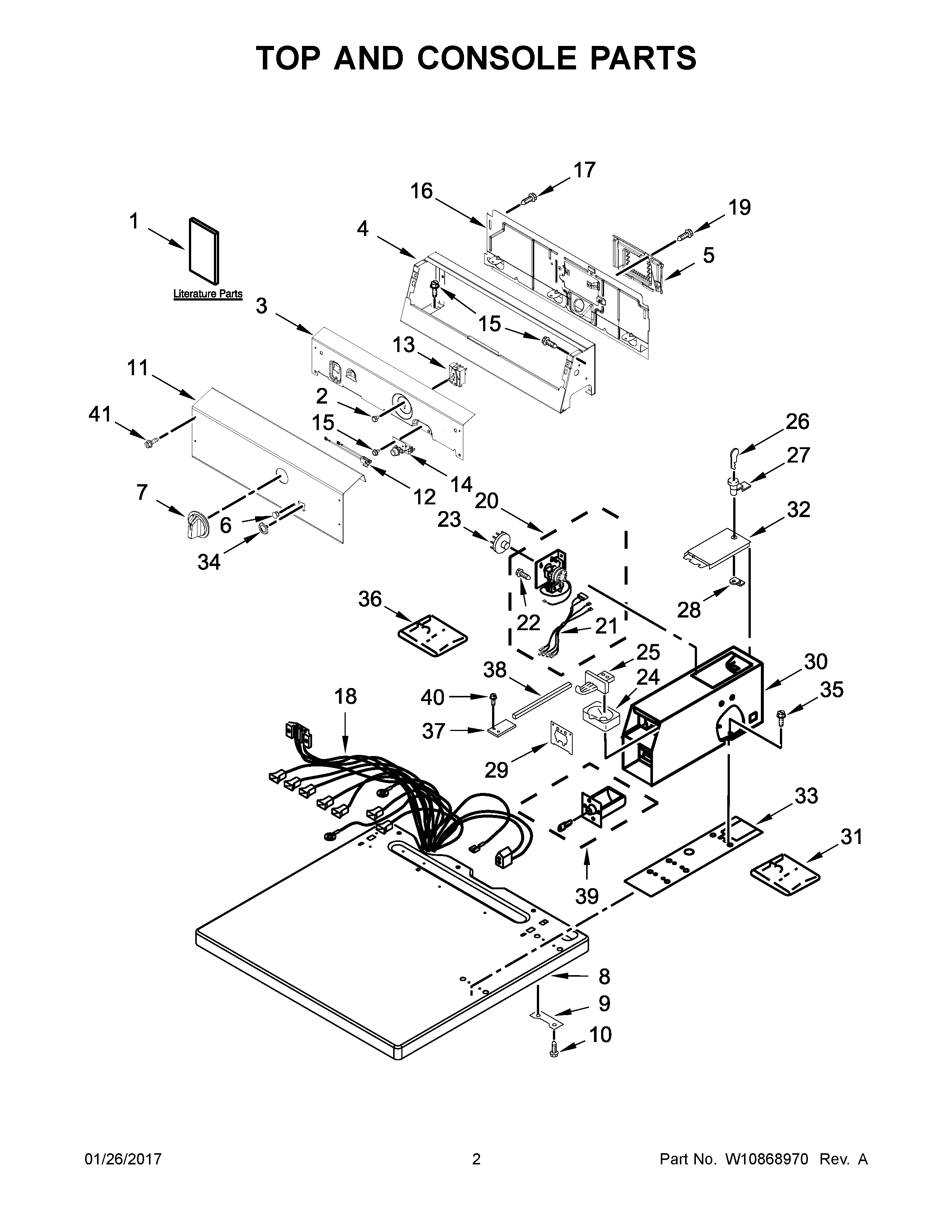

CEM2745FQ0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1CINSTRUCTIONS, COIN KIT
12745 MODEL, INSTALLATION INSTRUCTIONS
1A2765 MODEL, INSTALLATION INSTRUCTIONS
1BWIRING DIAGRAM
2SCREW
3W10461070 Whirlpool Bracket
4W10461094 Whirlpool Control Panel
5WPW10119283 Whirlpool Terminal Cover
6WPW10133502 Whirlpool Lens
7W10492415 Whirlpool Knob
8AWPW10136707 Whirlpool Top Assembly
8W10492412 Whirlpool Top
93347825 Whirlpool Plate
10W10841059 Whirlpool Screw
11W10845275 Whirlpool Dryer Overlay
12W10662107 Whirlpool Light Bulb
13WPW10327105 Whirlpool Cycle Switch
14W11097274 Whirlpool Push-To-Start Switch
15WP90767 Whirlpool Screw
16W11089934 Whirlpool Rear Panel
17WP488729 Whirlpool Refrigerator Door Screw
18W10129843 Whirlpool Wire Harness
19303776 Whirlpool Dishwasher Screw
20WPW10521398 Whirlpool Timer
21W10177791 Whirlpool Wire Harness
22339805 Whirlpool Screw
23AWP339855 Whirlpool Cam
23BWP343777 Whirlpool Cam
23WP3387974 Whirlpool Cam
24WP385421 Whirlpool Coin Operated Laundry Funnel
25W11126319 Whirlpool Washer Dryer Coin Chute
25AWPL 8316265
26KEY
27W11315637 Whirlpool Lock Assembly
28WP90406 Whirlpool Nut
29279950 Whirlpool Funnel
30WPW10461200 Whirlpool Case
31WP3406965 Whirlpool Coin Chute
32W11283272 Whirlpool Washer Dryer Meter Case Access Door
33WP3954812 Whirlpool Cushion
34W10510149 Whirlpool Bezel
35W11715721 Whirlpool Screw Assembly
36WPL 8316524
373390424 Whirlpool Extension
38WP8576635 Whirlpool Bolt
39W11190039 Whirlpool Coin Box Assembly
40WP3400029 Whirlpool Dishwasher Nut
41WPW10131119 Whirlpool Screw
