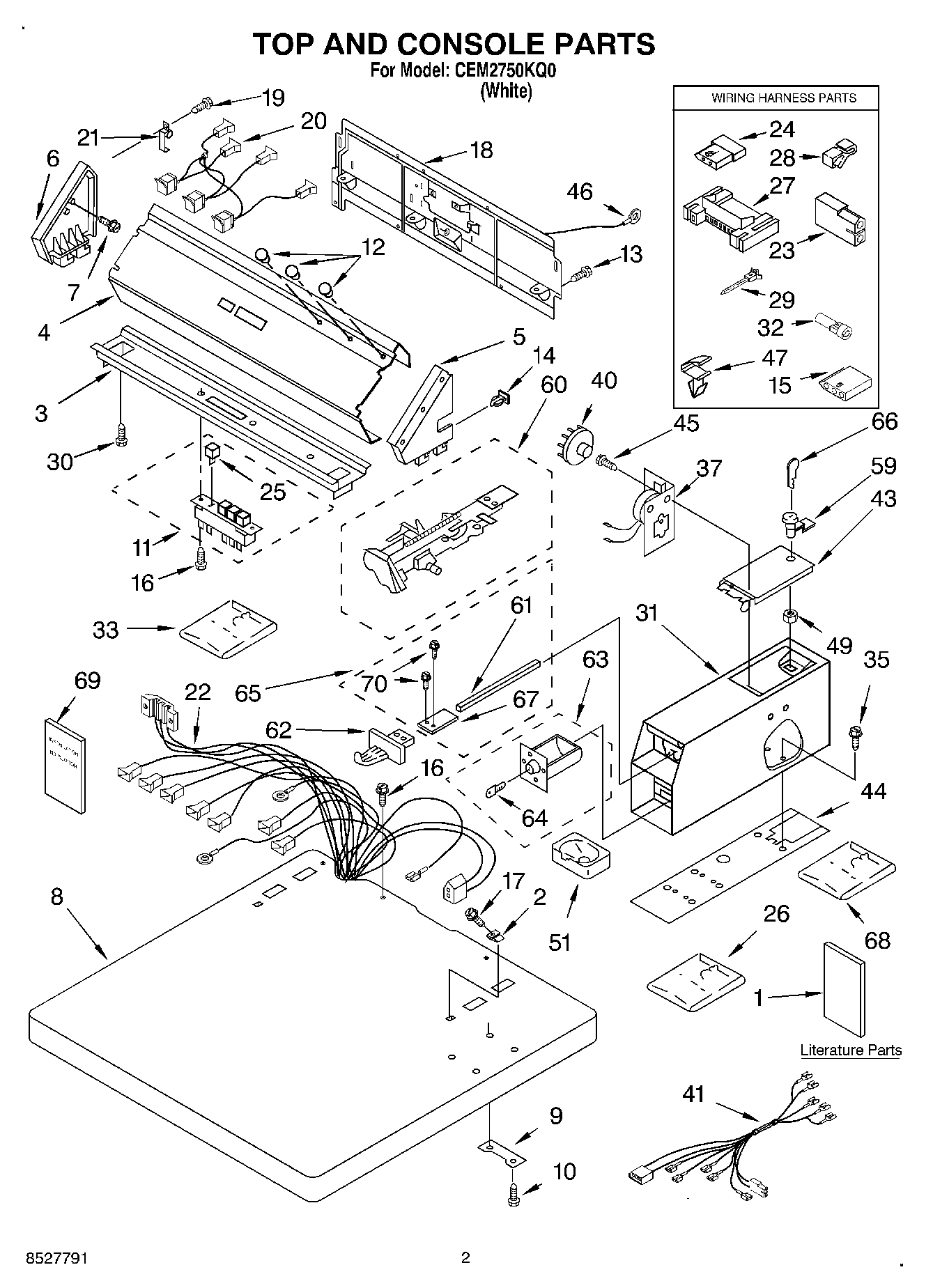

CEM2750KQ0 02 – TOP AND CONSOLE, LITERATURE

CEM2750KQ0 02 – TOP AND CONSOLE, LITERATURE

Written by

in

CEM2750KQ0 02 – TOP AND CONSOLE, LITERATURE

Products

PositionProduct
1Literature Parts (Label, Wiring Diagram)
1Literature Parts (Repair Parts List)
1Literature Parts (Instructions. Installation)
2WP357213 Whirlpool Hinge Stopper
3Bracket, Control
4Panel, Control
5Cap, End (R.H.)
6W11686050 Whirlpool Drive Motor
7WPW10109200 Whirlpool Screw
8Top
93347825 Whirlpool Plate
10W10841059 Whirlpool Screw
12WP3348109 Whirlpool Light Lens
13WP693995 Whirlpool Screw
14WP689559 Whirlpool Nut
15353424 Whirlpool Connector
16WP355214 Whirlpool Screw
17WP8281182 Whirlpool Screw Assembly
18Panel, Rear (Upper)
19WP488729 Whirlpool Refrigerator Door Screw
20Lights, Indicator Assembly
21Hinge, Console (2)
22Harness, Main
23Receptacle, Latching (2-Way) (Uses Terminal 94614)
24WP717253 Whirlpool Dishwasher Connector
25SWITCH-PB
26279950 Whirlpool Funnel
273395683 Whirlpool Connector
28W10113937 Whirlpool Clamp
29WP3391018 Whirlpool Wire Tie
30WPW10139210 Whirlpool Screw
31WPW10461200 Whirlpool Case
32Plug
33WP3406965 Whirlpool Coin Chute
35W11715721 Whirlpool Screw Assembly
37279737 Whirlpool Dryer Load Timer
40WP3387974 Whirlpool Cam
40WP339855 Whirlpool Cam
40WP343777 Whirlpool Cam
413401682 Whirlpool Wire Harness
43W11283272 Whirlpool Washer Dryer Meter Case Access Door
44WP3954812 Whirlpool Cushion
45339805 Whirlpool Screw
46Wire, Ground
47WP3394427 Whirlpool Clip
49WP90406 Whirlpool Nut
51WP385421 Whirlpool Coin Operated Laundry Funnel
59W11315637 Whirlpool Lock Assembly
60Slide & Extension
61WP8576635 Whirlpool Bolt
62WPL 8316265
62W11126319 Whirlpool Washer Dryer Coin Chute
62Inserts (Not Shown
63W11190039 Whirlpool Coin Box Assembly
64WPL ARI21323A4
65HARNS-WIRE
66WPL ARI21324A8
673390424 Whirlpool Extension
68WPL 8316524
69WPL 8316532
70WPL 3400086
