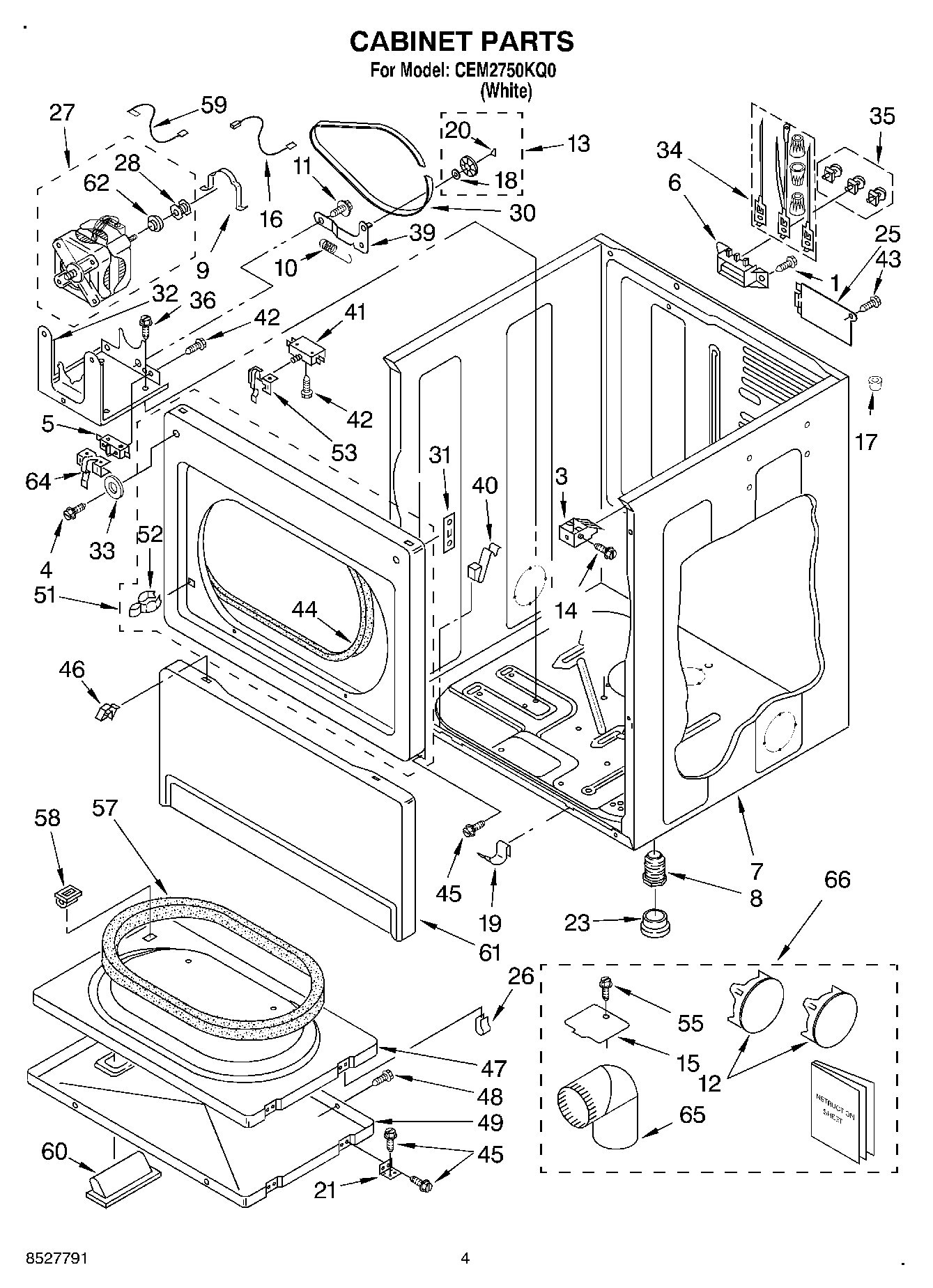

CEM2750KQ0 03 – CABINET

CEM2750KQ0 03 – CABINET

Written by

in

CEM2750KQ0 03 – CABINET

Products

PositionProduct
1WP308685 Whirlpool Microwave Screw
33391846 Whirlpool Clip
4WP3373329 Whirlpool Dishwasher Screw
5279782 Whirlpool Lid Switch
6WP3397659 Whirlpool Terminal Block
7W11417441 Whirlpool Cabinet
849621 Whirlpool Leveling Feet
9WP660658 Whirlpool Clamp
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
13279640 Whirlpool Dryer Idler Pulley Kit
14681615 Whirlpool Screw
15WPW10354249 Whirlpool Cover
16Wire, Belt Switch
17WPL 356674
18WPW10121334 Whirlpool Washer
19WP297092 Whirlpool Clip
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21W11175815 Whirlpool Hinge
23WP3391943 Whirlpool Foot Boot
25WPW10119283 Whirlpool Terminal Cover
26Nut, “U“ (4)
27W10841144 Whirlpool Drive Motor
28WP8066184 Whirlpool Dryer Motor Pulley
30661570V Whirlpool Dryer Drum Belt
31WP3390902 Whirlpool Clip
32WP3387118 Whirlpool Base Assembly
33Washer
34279318 Whirlpool Terminal
35279393 Whirlpool Terminal Block Screw and Nut Kit
36SCREW
39W10837240 Whirlpool Dryer Idler Pulley
40Clip, Lint Duct
41W10820036 Whirlpool Door Switch Kit
42WP98129 Whirlpool Screw
43WP90767 Whirlpool Screw
44WP3387242 Whirlpool Seal
45WP488627 Whirlpool Refrigerator Screw
46WP3388229 Whirlpool Dryer Spring Clip
47280083 Whirlpool Rear Door
48WP694091 Whirlpool Screw
49W11663440 Whirlpool Door
51Front Panel
53WP691581 Whirlpool Actuator
55WP488729 Whirlpool Refrigerator Door Screw
57WP3390735 Whirlpool Door Seal
58279570 Whirlpool Dryer Door Latch Kit
593398948 Whirlpool Wire
603389522 Whirlpool Handle
61WP3406797 Whirlpool Toe Panel
62WP3393657 Whirlpool Belt Retainer
64WP8066120 Whirlpool Lever Assembly
654“ – 90 Elbow Optional Parts Not Included Dryer Exhaust Kit (For Side
66W10470674 Whirlpool Dryer Side Vent Exhaust Kit
