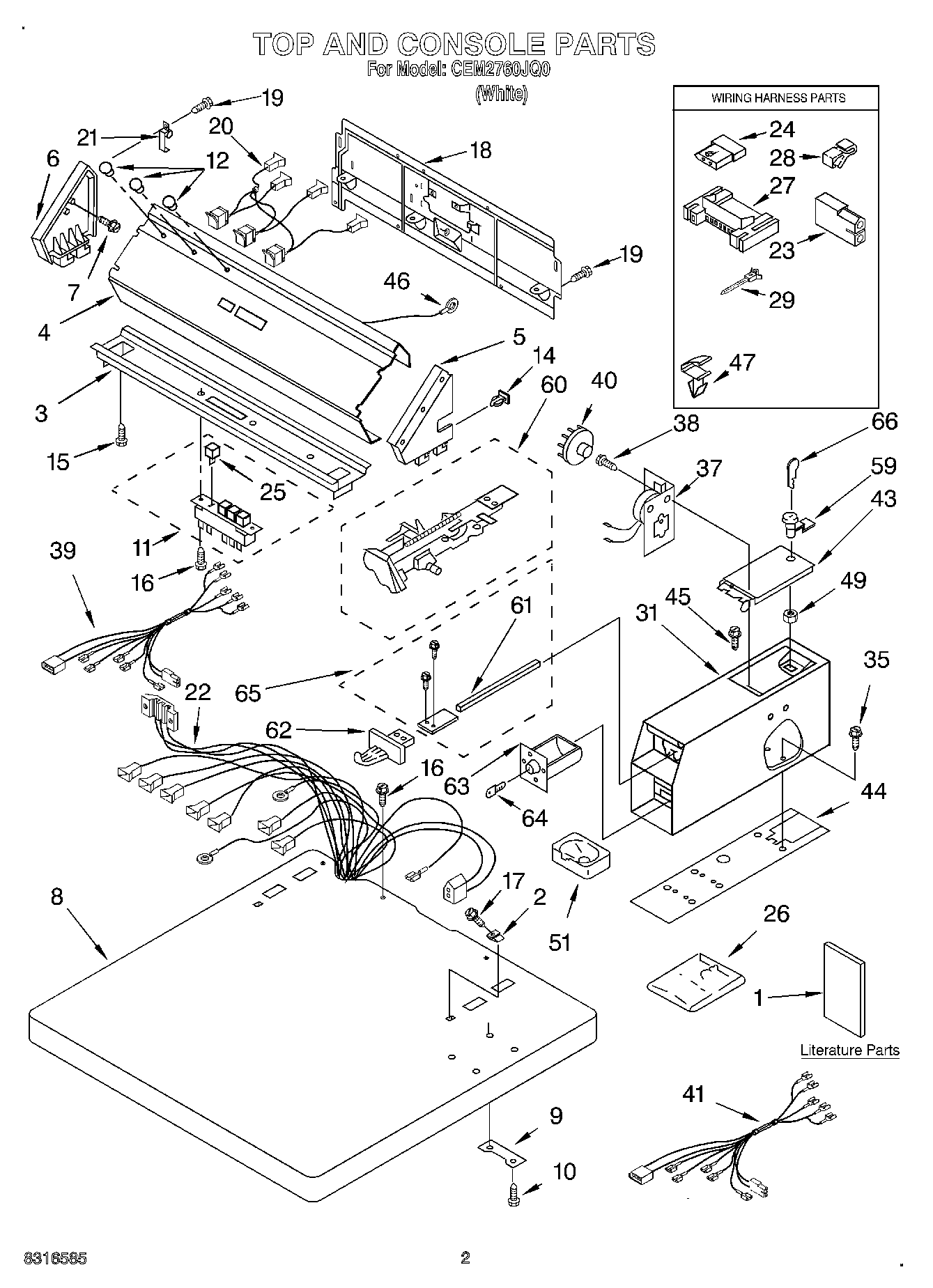

CEM2760JQ0 02 – TOP AND CONSOLE, LITERATURE

Products

PositionProduct
1Literature Parts (Instructions. Installation)
1Literature Parts (Service Parts List)
1Literature Parts (Label, Wiring Diagram)
2WP357213 Whirlpool Hinge Stopper
3Bracket, Control
4Panel, Control
5Cap, End (R.H.)
6W11686050 Whirlpool Drive Motor
7WPW10109200 Whirlpool Screw
8Top
93347825 Whirlpool Plate
10W10841059 Whirlpool Screw
12WP3348109 Whirlpool Light Lens
14WP689559 Whirlpool Nut
15WP3390631 Whirlpool Screw
16WP355214 Whirlpool Screw
17WP8281182 Whirlpool Screw Assembly
18Panel, Rear (Upper)
19WP488729 Whirlpool Refrigerator Door Screw
20Lights, Indicator (240 Volts)
21Hinge, Console (2)
22Harness, Main
23Receptacle, Latching (2-Way) (Uses Terminal 94614)
24WP717253 Whirlpool Dishwasher Connector
25SWITCH-PB
26279950 Whirlpool Funnel
273395683 Whirlpool Connector
28Clip, Ground
29WP3391018 Whirlpool Wire Tie
31WPW10461200 Whirlpool Case
35W11715721 Whirlpool Screw Assembly
37279737 Whirlpool Dryer Load Timer
38WP90767 Whirlpool Screw
39Harness, Console
40WP339855 Whirlpool Cam
413401682 Whirlpool Wire Harness
43W11283272 Whirlpool Washer Dryer Meter Case Access Door
44WP3954812 Whirlpool Cushion
45339805 Whirlpool Screw
46Wire, Ground
47WP3394427 Whirlpool Clip
49WP90406 Whirlpool Nut
51WP385421 Whirlpool Coin Operated Laundry Funnel
