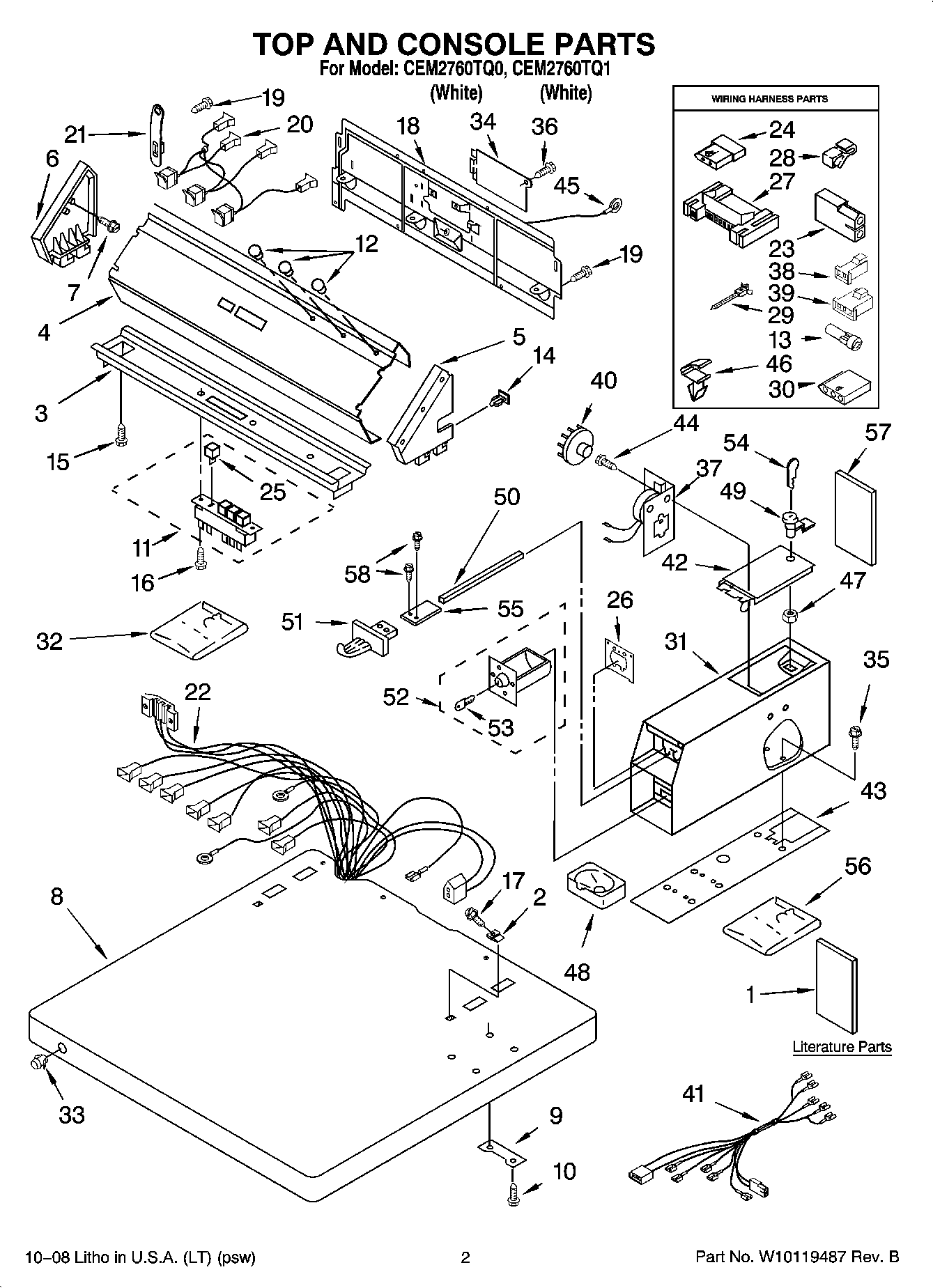

CEM2760TQ0 01 – TOP AND CONSOLE PARTS

CEM2760TQ0 01 – TOP AND CONSOLE PARTS

Written by

in

CEM2760TQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Service Parts List
1Instructions Installation
1Wiring Diagram
2WP357213 Whirlpool Hinge Stopper
3Bracket, Control
4Panel, Control
5Cap, End (R.H.)
6W11686050 Whirlpool Drive Motor
7WPW10109200 Whirlpool Screw
8Top
93347825 Whirlpool Plate
10W10841059 Whirlpool Screw
12WP3348109 Whirlpool Light Lens
13Plug
14WP689559 Whirlpool Nut
16WP489128 Whirlpool Refrigerator Screw
17WP8281182 Whirlpool Screw Assembly
18W11089934 Whirlpool Rear Panel
19WP488729 Whirlpool Refrigerator Door Screw
20Lights, Indicator Assembly
21WP8568314 Whirlpool Strap
228576528 Whirlpool Wire Harness
23Receptacle, Latching (2-Way) (Uses Terminal 94614)
24WP717253 Whirlpool Dishwasher Connector
25SWITCH-PB
26279950 Whirlpool Funnel
273395683 Whirlpool Connector
28W10113937 Whirlpool Clamp
29WP3391018 Whirlpool Wire Tie
303936144 Whirlpool Connector
31WPW10461200 Whirlpool Case
32WP3406965 Whirlpool Coin Chute
33Top Lock
33Also Available
33WP387371 Whirlpool Plug
34WPW10119283 Whirlpool Terminal Cover
35W11715721 Whirlpool Screw Assembly
36WP90767 Whirlpool Screw
37W11451464 Whirlpool Dryer Timer
38Receptacle
39Receptacle, 3-Way Terminal (Use W/94614)
40WP3387974 Whirlpool Cam
40WP343777 Whirlpool Cam
40WP339855 Whirlpool Cam
40WP339853 Whirlpool Cam
40WP339854 Whirlpool Cam
413401682 Whirlpool Wire Harness
42W11283272 Whirlpool Washer Dryer Meter Case Access Door
43WP3954812 Whirlpool Cushion
44339805 Whirlpool Screw
45Wire, Ground
46WP3394427 Whirlpool Clip
47WP90406 Whirlpool Nut
48WP385421 Whirlpool Coin Operated Laundry Funnel
48WPL ARI21352A6
49W11315637 Whirlpool Lock Assembly
50WP8576635 Whirlpool Bolt
51W11126319 Whirlpool Washer Dryer Coin Chute
51Inserts (Not Shown
51WPL 8316265
52W11190039 Whirlpool Coin Box Assembly
53WPL ARI21353A5
54WPL ARI21354A2
553390424 Whirlpool Extension
56WPL 8316524
57WPL 8316532
58WP3400029 Whirlpool Dishwasher Nut
