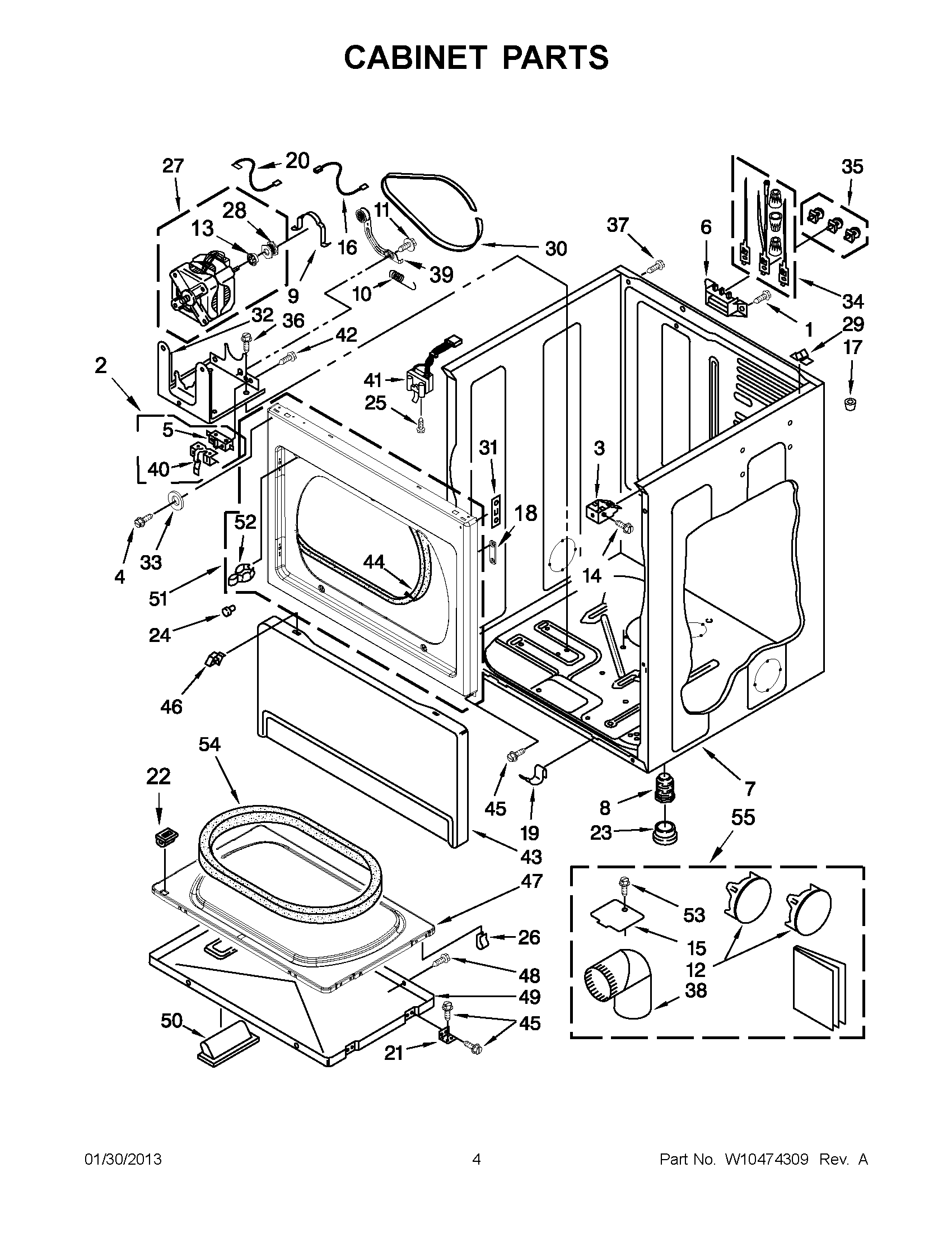

CEM2763BQ0 02 – CABINET PARTS

CEM2763BQ0 02 – CABINET PARTS

Products

PositionProduct
NI49621 Whirlpool Leveling Feet
1WP308685 Whirlpool Microwave Screw
33391846 Whirlpool Clip
4WP488729 Whirlpool Refrigerator Door Screw
5279782 Whirlpool Lid Switch
6WP3397659 Whirlpool Terminal Block
7W11417441 Whirlpool Cabinet
9WP660658 Whirlpool Clamp
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
13WP3393657 Whirlpool Belt Retainer
14681615 Whirlpool Screw
15WPW10354249 Whirlpool Cover
16W10167612 Whirlpool Wire
17WPL 356674
18W10191265 Whirlpool Plug
19WPW10291934 Whirlpool Clip
203398948 Whirlpool Wire
21WPW10279703 Whirlpool Hinge Assembly
22279570 Whirlpool Dryer Door Latch Kit
23WP3391943 Whirlpool Foot Boot
24693152 Whirlpool Bumper
25WP3395530 Whirlpool Screw
26WPW10131123 Whirlpool Nut
27W10841144 Whirlpool Drive Motor
28WP8066184 Whirlpool Dryer Motor Pulley
29WP345670 Whirlpool Lock
30661570V Whirlpool Dryer Drum Belt
31WP3390902 Whirlpool Clip
32WP3387118 Whirlpool Base Assembly
33Washer
34279318 Whirlpool Terminal
35279393 Whirlpool Terminal Block Screw and Nut Kit
36SCREW
37W10850756 Whirlpool Screw
384`` - 90 Elbow Optional Parts Not Included Dryer Exhaust Kit (For Side
39WPW10344193 Whirlpool Idler Pulley
40WP8066120 Whirlpool Lever Assembly
41SWITCH-DOOR DRYER
42WP98129 Whirlpool Screw
43WP3406797 Whirlpool Toe Panel
44WP3387242 Whirlpool Seal
45WP488627 Whirlpool Refrigerator Screw
46WP3388229 Whirlpool Dryer Spring Clip
47280083 Whirlpool Rear Door
48WPW10139210 Whirlpool Screw
49W11663440 Whirlpool Door
503389522 Whirlpool Handle
51W10242810 Whirlpool Panel
53WP693995 Whirlpool Screw
54WP3390735 Whirlpool Door Seal
55W10470674 Whirlpool Dryer Side Vent Exhaust Kit
