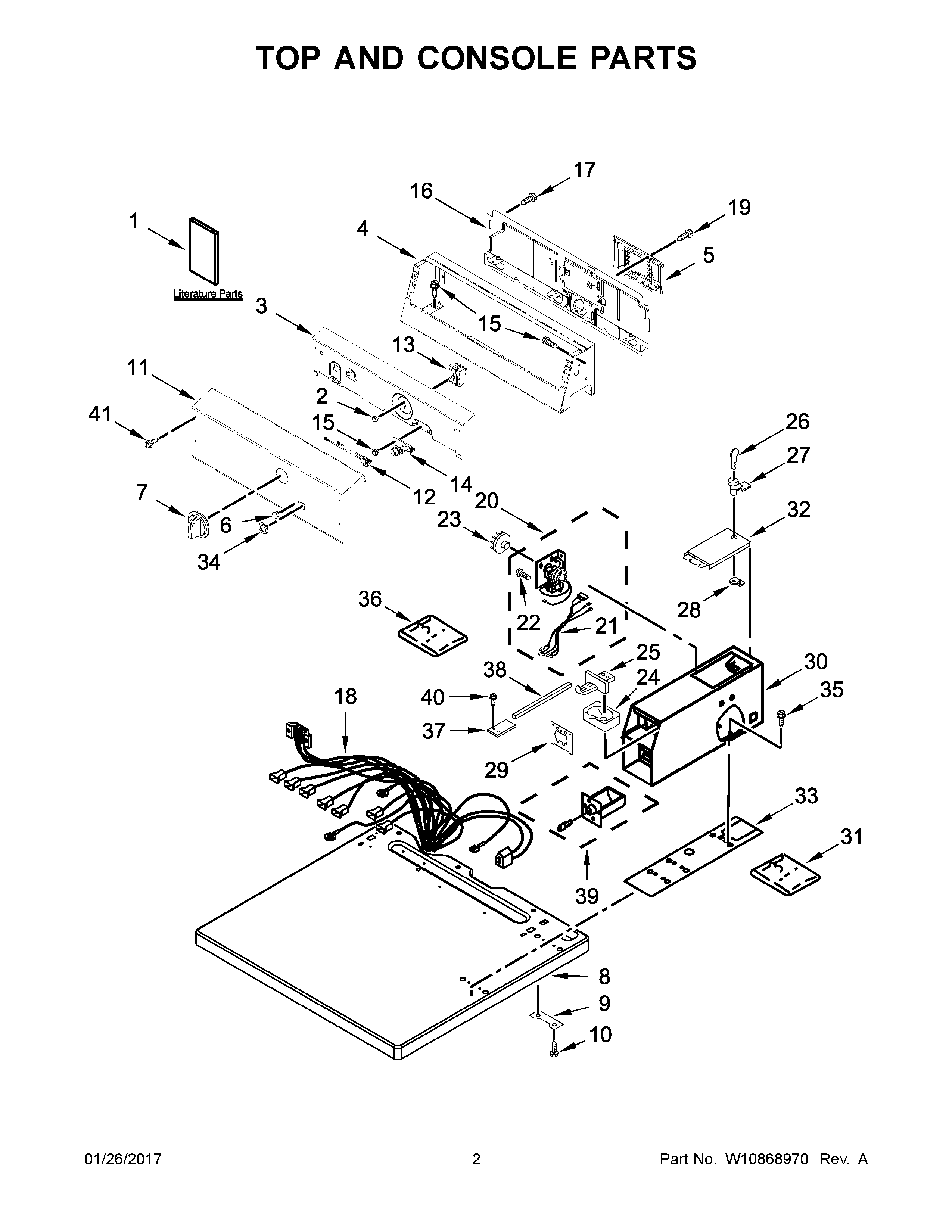

CEM2765FQ0 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1C	INSTRUCTIONS, COIN KIT
1	2745 MODEL, INSTALLATION INSTRUCTIONS
1A	2765 MODEL, INSTALLATION INSTRUCTIONS
1B	WIRING DIAGRAM
2	SCREW
3	W10461070 Whirlpool Bracket
4	W10461094 Whirlpool Control Panel
5	WPW10119283 Whirlpool Terminal Cover
6	WPW10133502 Whirlpool Lens
7	W10492415 Whirlpool Knob
8A	WPW10136707 Whirlpool Top Assembly
8	W10492412 Whirlpool Top
9	3347825 Whirlpool Plate
10	W10841059 Whirlpool Screw
11	W10845275 Whirlpool Dryer Overlay
12	W10662107 Whirlpool Light Bulb
13	WPW10327105 Whirlpool Cycle Switch
14	W11097274 Whirlpool Push-To-Start Switch
15	WP90767 Whirlpool Screw
16	W11089934 Whirlpool Rear Panel
17	WP488729 Whirlpool Refrigerator Door Screw
18	W10129843 Whirlpool Wire Harness
19	303776 Whirlpool Dishwasher Screw
20	WPW10521398 Whirlpool Timer
21	W10177791 Whirlpool Wire Harness
22	339805 Whirlpool Screw
23A	WP339855 Whirlpool Cam
23B	WP343777 Whirlpool Cam
23	WP3387974 Whirlpool Cam
24	WP385421 Whirlpool Coin Operated Laundry Funnel
25	W11126319 Whirlpool Washer Dryer Coin Chute
25A	WPL 8316265
26	KEY
27	W11315637 Whirlpool Lock Assembly
28	WP90406 Whirlpool Nut
29	279950 Whirlpool Funnel
30	WPW10461200 Whirlpool Case
31	WP3406965 Whirlpool Coin Chute
32	W11283272 Whirlpool Washer Dryer Meter Case Access Door
33	WP3954812 Whirlpool Cushion
34	W10510149 Whirlpool Bezel
35	W11715721 Whirlpool Screw Assembly
36	WPL 8316524
37	3390424 Whirlpool Extension
38	WP8576635 Whirlpool Bolt
39	W11190039 Whirlpool Coin Box Assembly
40	WP3400029 Whirlpool Dishwasher Nut
41	WPW10131119 Whirlpool Screw
