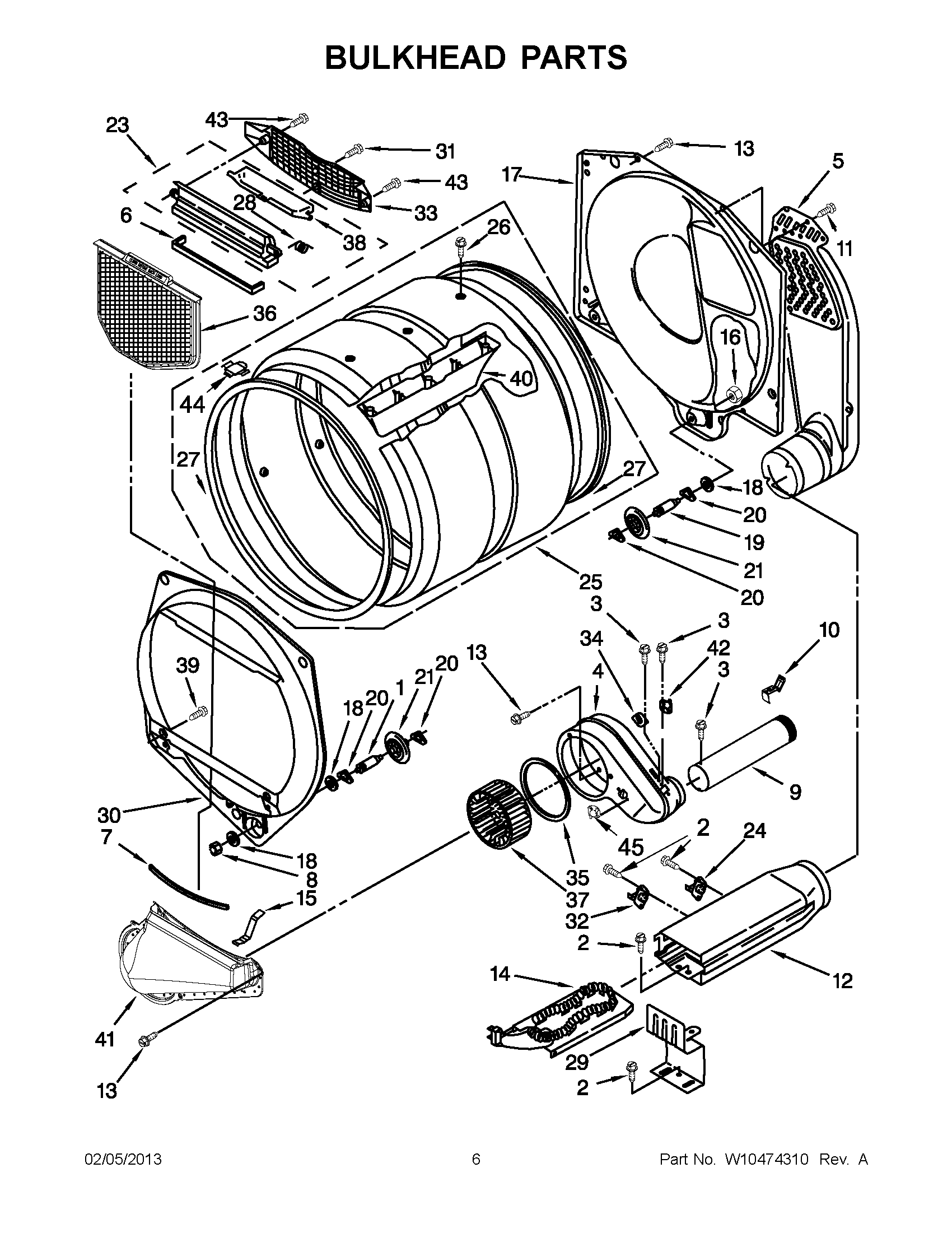

CEM2793BQ0 03 – BULKHEAD PARTS

CEM2793BQ0 03 – BULKHEAD PARTS

Written by

in

CEM2793BQ0 03 – BULKHEAD PARTS

Products

PositionProduct
1SHAFT
3WP90767 Whirlpool Screw
4W10888146 Whirlpool Housing
5WP3387911 Whirlpool Air Duct
6WP697813 Whirlpool Seal
8WPW10080210 Whirlpool Nut
9279936 Whirlpool Exhaust Pipe
10W11684573 Whirlpool Clip Assembly
11WP693995 Whirlpool Screw
12W10802681 Whirlpool Box Assembly
13WP488729 Whirlpool Refrigerator Door Screw
14W10864898 Whirlpool Dryer Heating Element
15WP8066208 Whirlpool Clip
16WPW10080190 Whirlpool Nut
17W11299300 Whirlpool Bulkhead Assembly
18W11236646 Whirlpool Washer Assembly
19SHAFT
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21WPW10314173 Whirlpool Dryer Drum Support Wheel
23W11197085 Whirlpool Outer Housing
24279973 Whirlpool Dryer Thermal Cut-Off and High Limit Thermostat Kit
25W10545923 Whirlpool Drum Assembly
26W10853898 Whirlpool Screw
27280114 Whirlpool Dryer Drum Seal
28WP3394986 Whirlpool Spring
298066099 Whirlpool Bracket
30WP697557 Whirlpool Bulkhead Assembly
32THRMST-FIX
33W11086603 Whirlpool Dryer Link Screen Air Grille
34WP3392519 Whirlpool Dryer Thermal Fuse
35WP697770 Whirlpool Blower Cover Plate Seal
36W10120998 Whirlpool Dryer Lint Screen Filter
37WHEEL
38W10181925 Whirlpool Door
39WP308685 Whirlpool Microwave Screw
40WPW10113136 Whirlpool Drum Baffle
41WPW10128606 Whirlpool Lint Duct
42WPW10131836 Whirlpool Thermostat
43WP3387230 Whirlpool Screw
448066086 Whirlpool Plug
45WPW10178809 Whirlpool Dryer Cycling Thermostat
