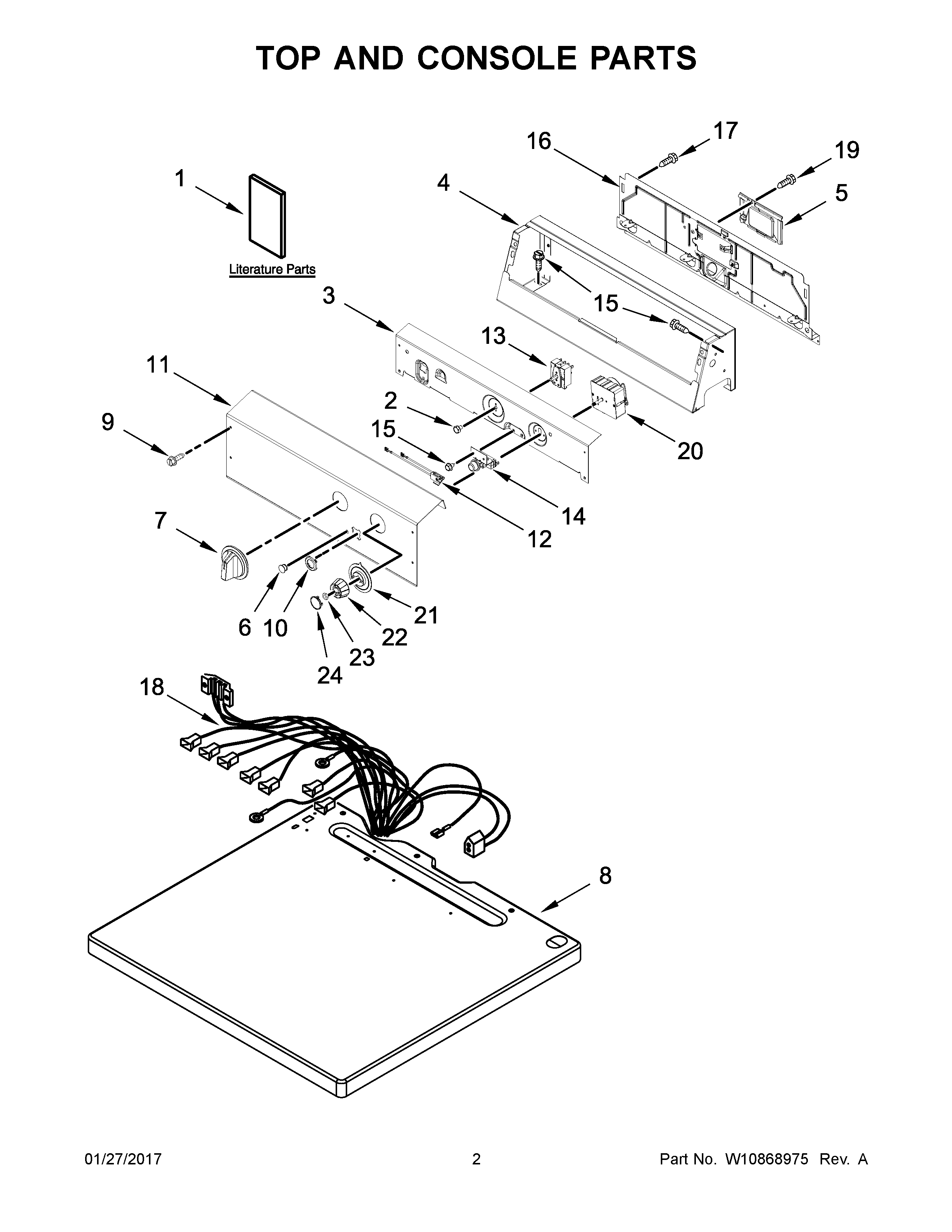

CEM2795FQ0 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1A	WIRING DIAGRAM
1	2745 MODEL, INSTALLATION INSTRUCTIONS
2	SCREW
3	BACK BRACKET, NON-COIN
4	W11124005 Whirlpool Console
5	WPW10119283 Whirlpool Terminal Cover
6	WPW10133502 Whirlpool Lens
7	W10492415 Whirlpool Knob
8	W10492414 Whirlpool Top
9	WPW10131119 Whirlpool Screw
10	W10510149 Whirlpool Bezel
11	FASCIA
12	W10662107 Whirlpool Light Bulb
13	WPW10327105 Whirlpool Cycle Switch
14	W11097274 Whirlpool Push-To-Start Switch
15	WP90767 Whirlpool Screw
16	W10863352 Whirlpool Rear Panel
17	WP488729 Whirlpool Refrigerator Door Screw
18	W10153137 Whirlpool Wire Harness
19	303776 Whirlpool Dishwasher Screw
20	WPW10157942 Whirlpool Timer
21	W10492417 Whirlpool Dial
22	W10906062 Whirlpool Knob
23	W10155650 Whirlpool Nut
24	CAP, KNOB
