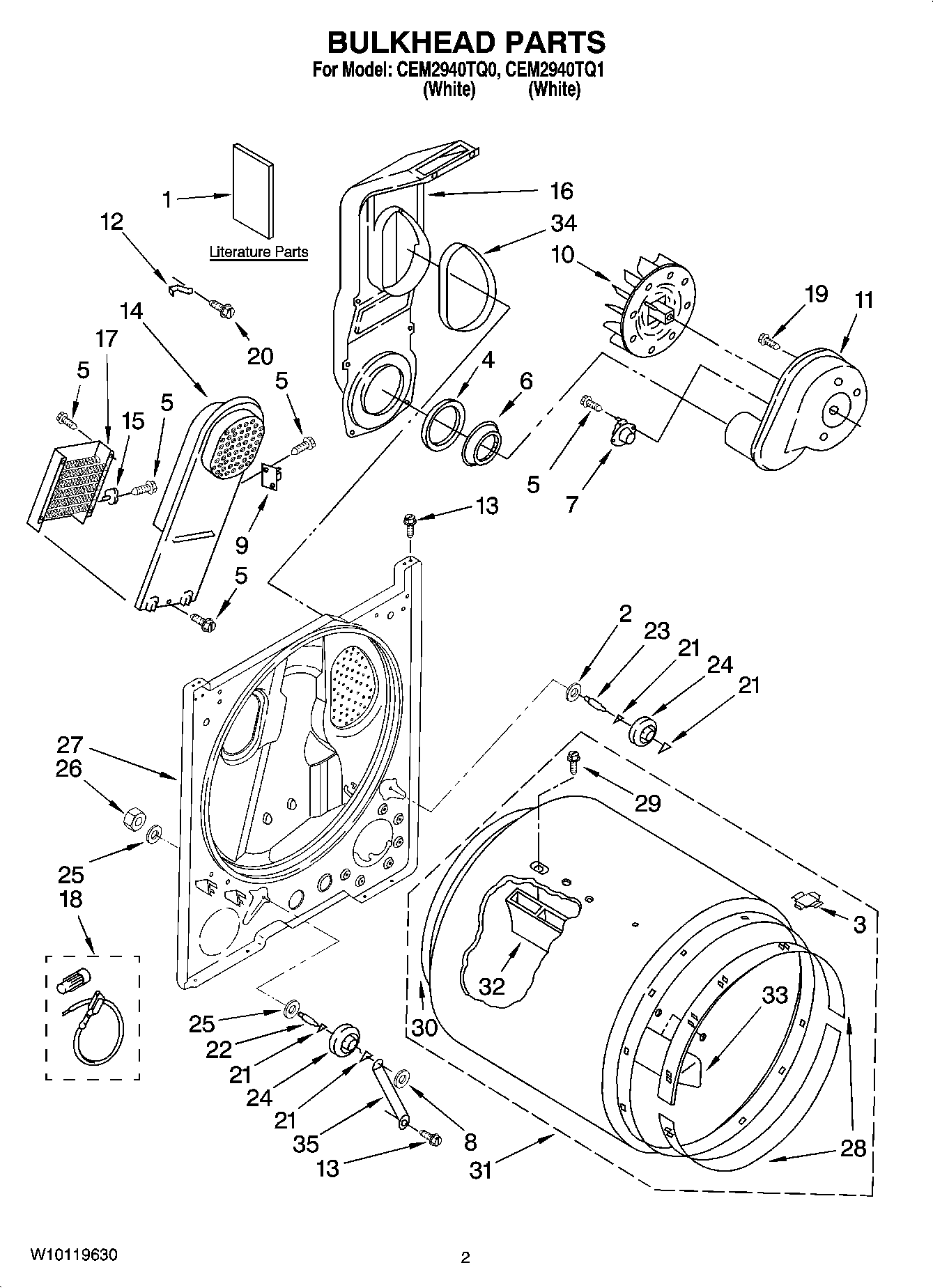

CEM2940TQ0 01 – BULKHEAD PARTS

CEM2940TQ0 01 – BULKHEAD PARTS

Written by

in

CEM2940TQ0 01 – BULKHEAD PARTS

Products

PositionProduct
1Repair Parts List
1Label, Wiring Diagram
1Instructions, Installation
2WP3388703 Whirlpool Washer
38066086 Whirlpool Plug
4W11415783 Whirlpool Seal
5WP90767 Whirlpool Screw
6W11233063 Whirlpool Shield Assembly
7WP3387134 Whirlpool Dryer Cycling Thermostat
8WP90296 Whirlpool Clip
9279816 Whirlpool Dryer Thermal Cut-Off Fuse Kit
10WP694089 Whirlpool Dryer Blower Wheel
11WP8577230 Whirlpool Housing
12279771 Whirlpool Clip
13SCREW
14WP8541818 Whirlpool Box
15WP3977767 Whirlpoo Dryer High Limit Thermostat
16W11117429 Whirlpool Chute Assembly
17W11375548 Whirlpool Heating Element
18279457 Whirlpool Dryer Heating Element Wide Spade Connection
19WP488729 Whirlpool Refrigerator Door Screw
20WP489463 Whirlpool Refrigerator Screw
21WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
22SHAFT SUPPORT ROLLER DRYER
23SHAFT SUPPORT ROLLER DRYER
24349241T Whirlpool Dryer Drum Support Roller Kit
25WP348197 Whirlpool Washer Assembly
26WP3359452 Whirlpool Nut
27W11178668 Whirlpool Bulkhead
28279441 Whirlpool Front Bearing Ring
29W10853898 Whirlpool Screw
30W10612022 Whirlpool Felt Seal
31W10899578 Whirlpool Dryer Drum Assembly
32BAFFLE-DRM
33WP3403636 Whirlpool Drum Baffle
34SEAL
35W11684613 Whirlpool Bracket
