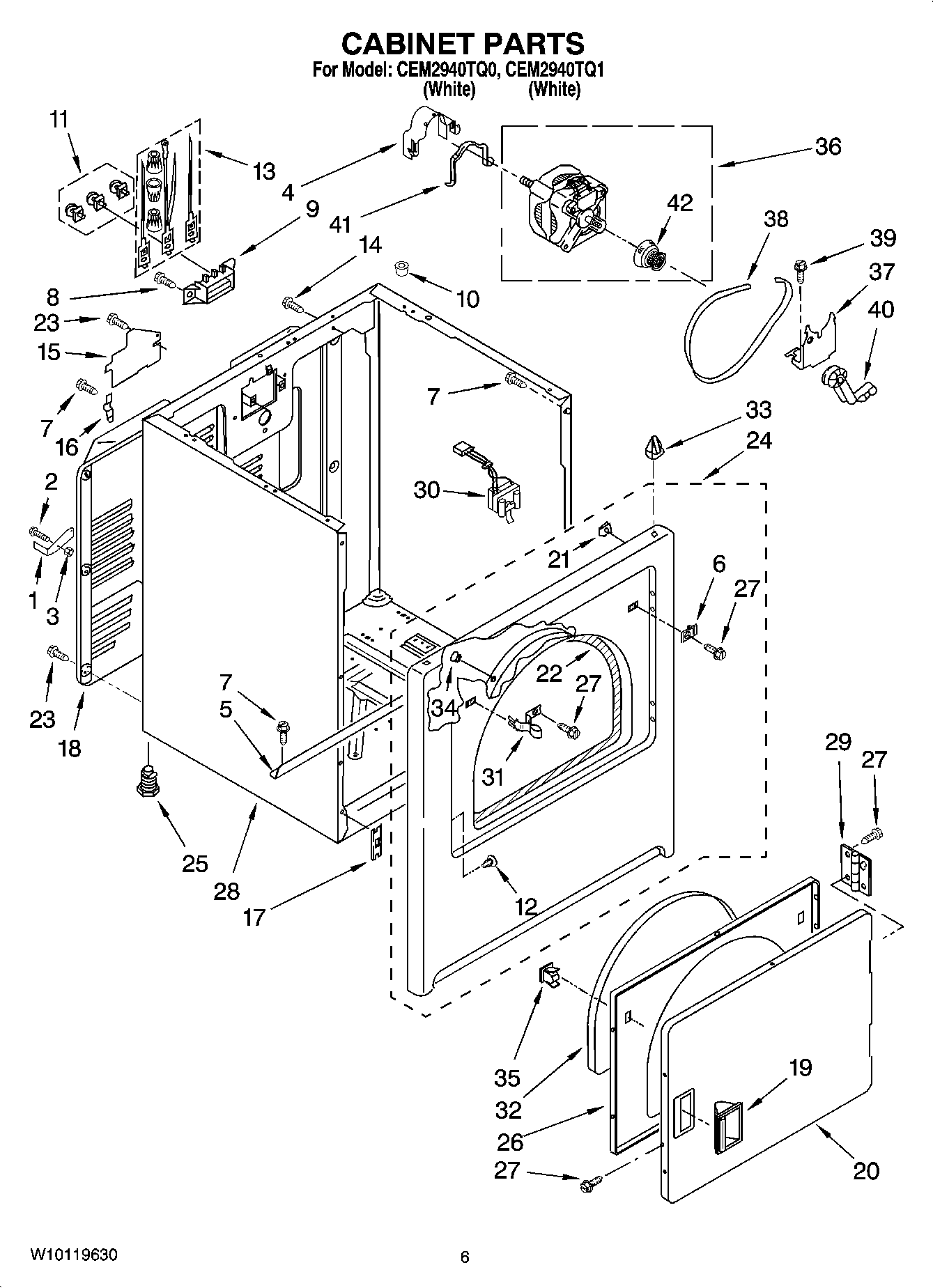

CEM2940TQ0 03 – CABINET PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	350930 Whirlpool White Spray Paint
	350938 Whirlpool Spray Gun
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	4392065 Whirlpool Dryer Maintenance Kit
	ACCESSORY PARTS
1	Bracket, Top Lock
2	BOLT, 5/16-18 X 2 3/4
3	90984 Whirlpool Nut
4	WP3404162 Whirlpool Clamp
5	Bracket, Cabinet
6	WP3403630 Whirlpool Plug
7	SCREW
8	WP308685 Whirlpool Microwave Screw
9	WP3397659 Whirlpool Terminal Block
10	WPL 356674
11	279393 Whirlpool Terminal Block Screw and Nut Kit
12	WP3404413 Whirlpool Plug
13	279318 Whirlpool Terminal
14	W10850756 Whirlpool Screw
15	W11539855 Whirlpool Refrigerator Pump
16	WP8066217 Whirlpool Hinge
17	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
18	280043 Whirlpool Rear Panel
19	WP3405184 Whirlpool White Door Handle
20	W10861227 Whirlpool Door Assembly
21	WP98234 Whirlpool Nut
22	W11035878 Whirlpool Bearing and Seal
23	WP693995 Whirlpool Screw
24	W10806345 Whirlpool Panel
25	49621 Whirlpool Leveling Feet
26	WP3402341 Whirlpool Door
27	WP488627 Whirlpool Refrigerator Screw
28	8533643 Whirlpool Dryer White Cabinet
29	WPW10362431 Whirlpool Hinge Assembly
30	SWITCH-DOOR DRYER
31	W11429589 Whirlpool Strike
32	SEAL-DOOR DRYER
33	WP18776 Whirlpool Lock
34	279220 Whirlpool Clip
35	WP3389441 Whirlpool Door Catch
36	279827 Whirlpool Dryer Drive Motor
37	WP348780 Whirlpool Base
38	341241 Whirlpool Dryer Drum Belt
39	3400500 Whirlpool Screw
40	WP691366 Whirlpool Dryer Idler Pulley Assembly
41	CLAMP
42	WP8066184 Whirlpool Dryer Motor Pulley
