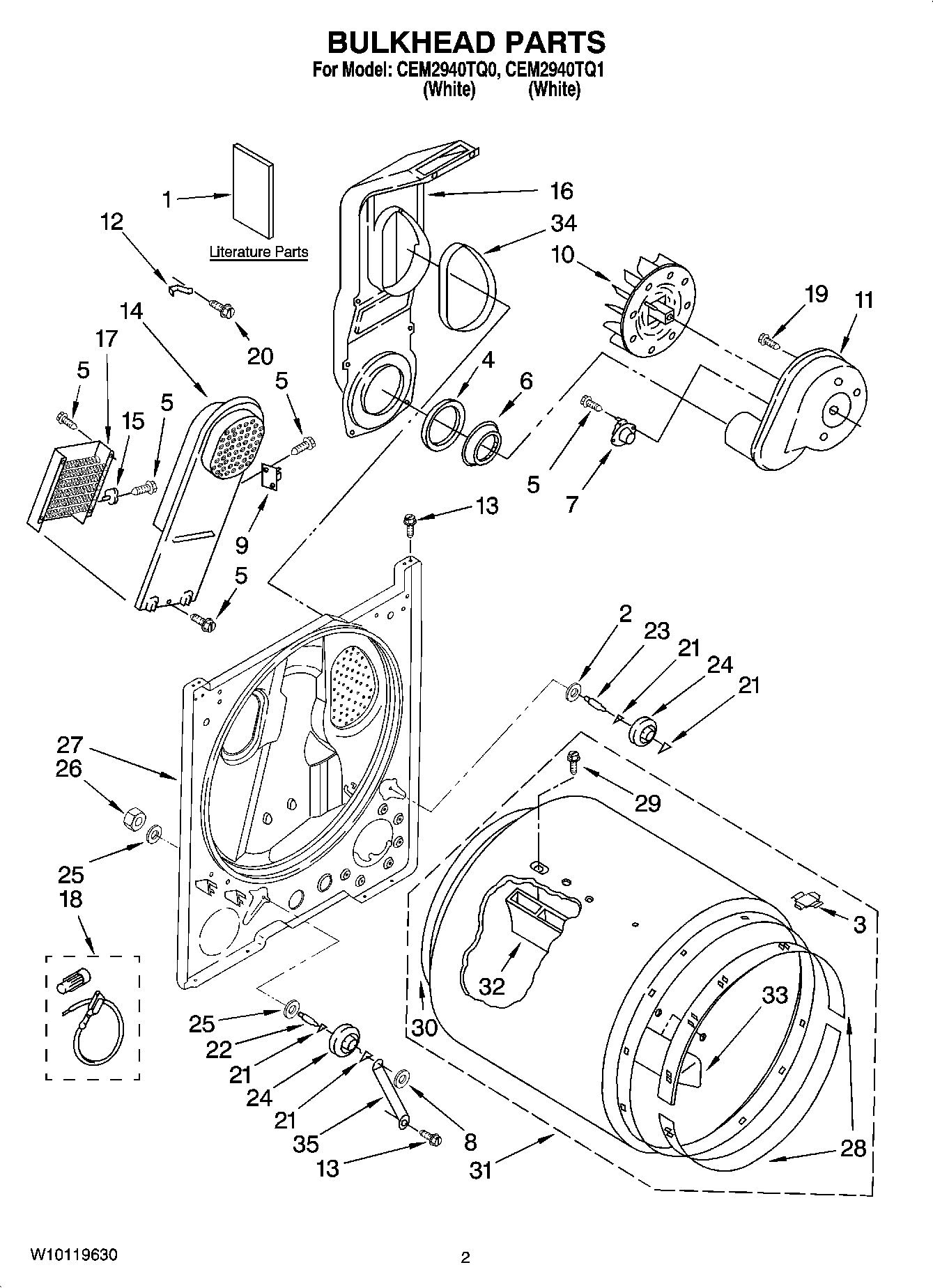

CEM2940TQ1 01 – BULKHEAD PARTS

Products

Position	Product
1	Repair Parts List
1	Label, Wiring Diagram
1	Instructions, Installation
2	WP3388703 Whirlpool Washer
3	8066086 Whirlpool Plug
4	W11415783 Whirlpool Seal
5	WP90767 Whirlpool Screw
6	W11233063 Whirlpool Shield Assembly
7	WP3387134 Whirlpool Dryer Cycling Thermostat
8	WP90296 Whirlpool Clip
9	279816 Whirlpool Dryer Thermal Cut-Off Fuse Kit
10	WP694089 Whirlpool Dryer Blower Wheel
11	WP8577230 Whirlpool Housing
12	279771 Whirlpool Clip
13	SCREW
14	WP8541818 Whirlpool Box
15	WP3977767 Whirlpoo Dryer High Limit Thermostat
16	W11117429 Whirlpool Chute Assembly
17	W11375548 Whirlpool Heating Element
18	279457 Whirlpool Dryer Heating Element Wide Spade Connection
19	WP488729 Whirlpool Refrigerator Door Screw
20	WP489463 Whirlpool Refrigerator Screw
21	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
22	SHAFT SUPPORT ROLLER DRYER
23	SHAFT SUPPORT ROLLER DRYER
24	349241T Whirlpool Dryer Drum Support Roller Kit
25	WP348197 Whirlpool Washer Assembly
26	WP3359452 Whirlpool Nut
27	W11178668 Whirlpool Bulkhead
28	279441 Whirlpool Front Bearing Ring
29	W10853898 Whirlpool Screw
30	W10612022 Whirlpool Felt Seal
31	W10899578 Whirlpool Dryer Drum Assembly
32	BAFFLE-DRM
33	WP3403636 Whirlpool Drum Baffle
34	SEAL
35	W11684613 Whirlpool Bracket
