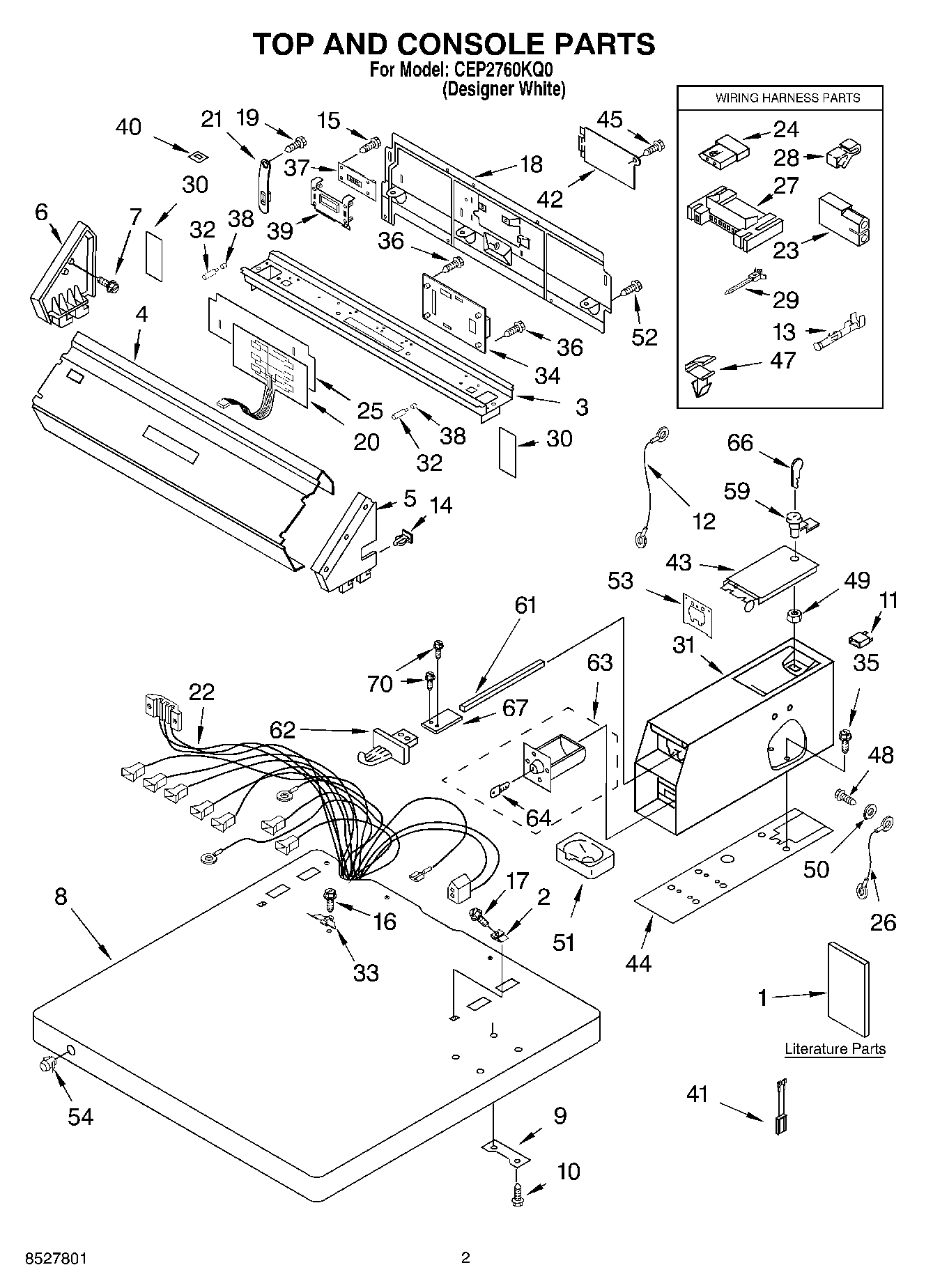

CEP2760KQ0 02 – TOP AND CONSOLE, LITERATURE

CEP2760KQ0 02 – TOP AND CONSOLE, LITERATURE

Written by

in

CEP2760KQ0 02 – TOP AND CONSOLE, LITERATURE

Products

PositionProduct
1Literature Parts (Instructions, Installation)
1Literature Parts (Wiring Diagram)
1Literature Parts (Tech Sheet)
1Service Parts List
2WP357213 Whirlpool Hinge Stopper
3Bracket, Control
4Panel, Control
5Cap, End (R.H.)
6W11686050 Whirlpool Drive Motor
7WPW10109200 Whirlpool Screw
8Top
93347825 Whirlpool Plate
10W10841059 Whirlpool Screw
11Switch, Service Diagnostic
12Wire, Ground
13WP94614 Whirlpool Terminal
14WP689559 Whirlpool Nut
15WPW10139210 Whirlpool Screw
16WP355214 Whirlpool Screw
17WP8281182 Whirlpool Screw Assembly
18W11089934 Whirlpool Rear Panel
19WP488729 Whirlpool Refrigerator Door Screw
20Switch, Membrane
21WP8568314 Whirlpool Strap
22Harness, Main
23Receptacle, Latching (2-Way) (Uses Terminal 94614)
24WP717253 Whirlpool Dishwasher Connector
25Backer Plate
26Wire, Ground
273395683 Whirlpool Connector
28W10113937 Whirlpool Clamp
29WP3391018 Whirlpool Wire Tie
30Backer Plate, Side (2)
31WPW10461200 Whirlpool Case
32Mounting Stud
33Clip, Static Ground
34Control Board
35W11715721 Whirlpool Screw Assembly
36WPW10366705 Whirlpool Screw
37Board, Display
38Cap, Stud
39Lens, Display
40Clip (2)
41A.C. Line Filter
42WPW10119283 Whirlpool Terminal Cover
43W11283272 Whirlpool Washer Dryer Meter Case Access Door
44WP3954812 Whirlpool Cushion
45WP90767 Whirlpool Screw
47WP3394427 Whirlpool Clip
48339805 Whirlpool Screw
49WP90406 Whirlpool Nut
50W11170663 Whirlpool Washer
51WP385421 Whirlpool Coin Operated Laundry Funnel
52WP3390631 Whirlpool Screw
53279950 Whirlpool Funnel
54WP387371 Whirlpool Plug
54Top Lock
59W11315637 Whirlpool Lock Assembly
61WP8576635 Whirlpool Bolt
62WPL 8316265
62Inserts (Not Shown
62W11126319 Whirlpool Washer Dryer Coin Chute
63W11190039 Whirlpool Coin Box Assembly
64WPL ARI21377A7
66WPL ARI21378A6
673390424 Whirlpool Extension
70WPL 3400086
