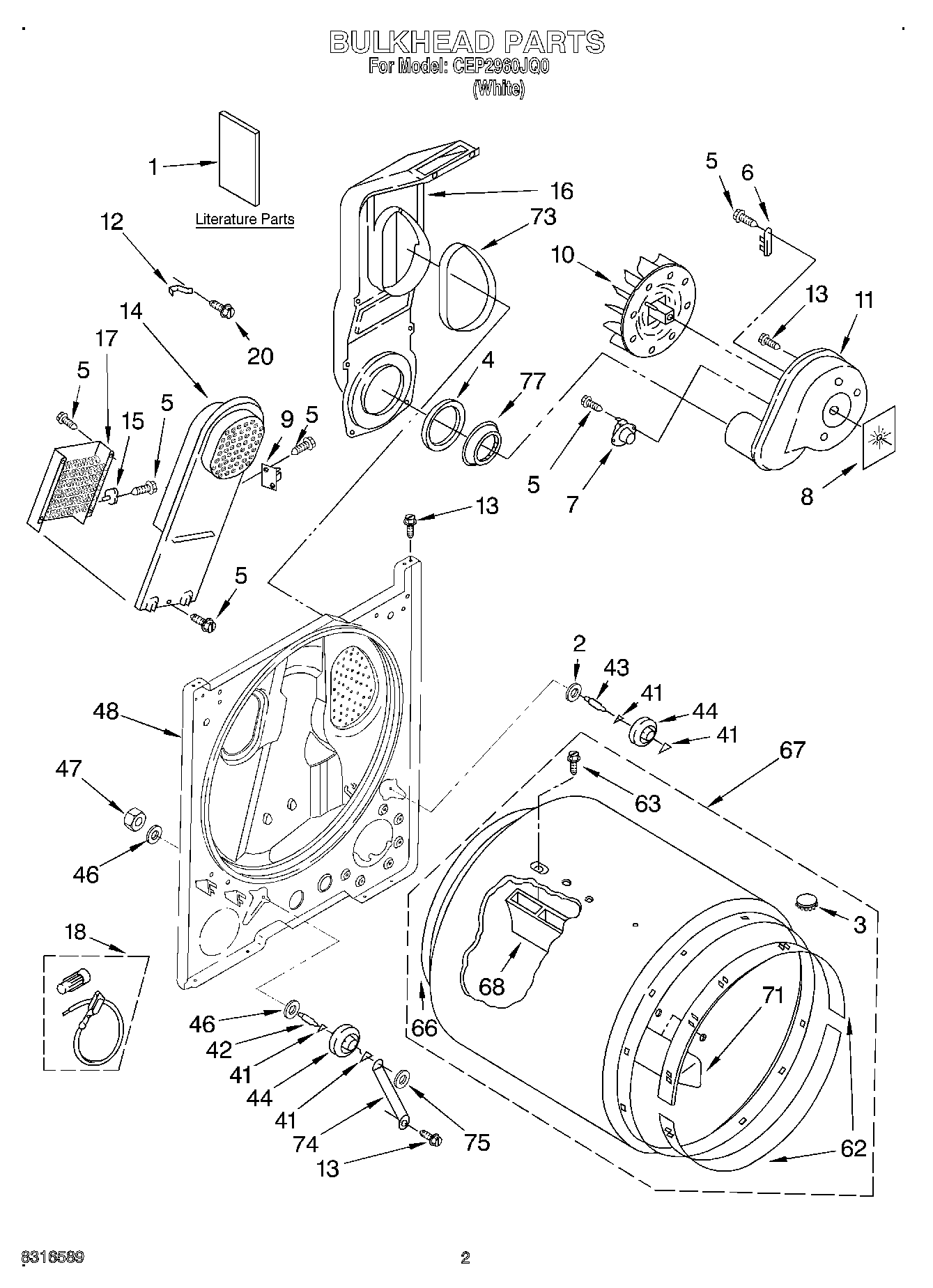

CEP2960JQ0 02 – BULKHEAD, LITERATUREadmin2025-04-26T09:33:55+00:00CEP2960JQ0 02 – BULKHEAD, LITERATURE ProductsPositionProduct1Literature Parts (Repair Parts List)1Literature Parts (Instructions, Installation)1Literature Parts (Tech Sheet)1Literature Parts (Label, Wiring Diagram)2WP3388703 Whirlpool Washer38066086 Whirlpool Plug4W11415783 Whirlpool Seal5WP90767 Whirlpool Screw6WP3392519 Whirlpool Dryer Thermal Fuse7WP3387134 Whirlpool Dryer Cycling Thermostat8Seal, Blower9279816 Whirlpool Dryer Thermal Cut-Off Fuse Kit10WP694089 Whirlpool Dryer Blower Wheel11WP8577230 Whirlpool Housing12279771 Whirlpool Clip13SCREW14WP8541818 Whirlpool Box15WP3390291 Whirlpool High Limit Thermostat16W11117429 Whirlpool Chute Assembly17W11375548 Whirlpool Heating Element18279457 Whirlpool Dryer Heating Element Wide Spade Connection20WP489463 Whirlpool Refrigerator Screw41WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller42SHAFT SUPPORT ROLLER DRYER43SHAFT SUPPORT ROLLER DRYER44349241T Whirlpool Dryer Drum Support Roller Kit46WP348197 Whirlpool Washer Assembly47WP3359452 Whirlpool Nut48W11178668 Whirlpool Bulkhead62279441 Whirlpool Front Bearing Ring63WPW10109200 Whirlpool Screw66W10612022 Whirlpool Felt Seal67W10899578 Whirlpool Dryer Drum Assembly68BAFFLE-DRM71WP3403636 Whirlpool Drum Baffle73SEAL74W11684613 Whirlpool Bracket75WP90296 Whirlpool Clip77Golden Harvest (Uncut)77Vault Switch, Kit (Low)77350938 Whirlpool Spray Gun7772017 Whirlpool Appliance Touch-Up Paint White77799344 Whirlpool Refrigerator Paint77W11233063 Whirlpool Shield Assembly77Almond (Uncut)77350930 Whirlpool White Spray Paint77Vault Switch, Kit (High)
